2.0L/2.4L Engine

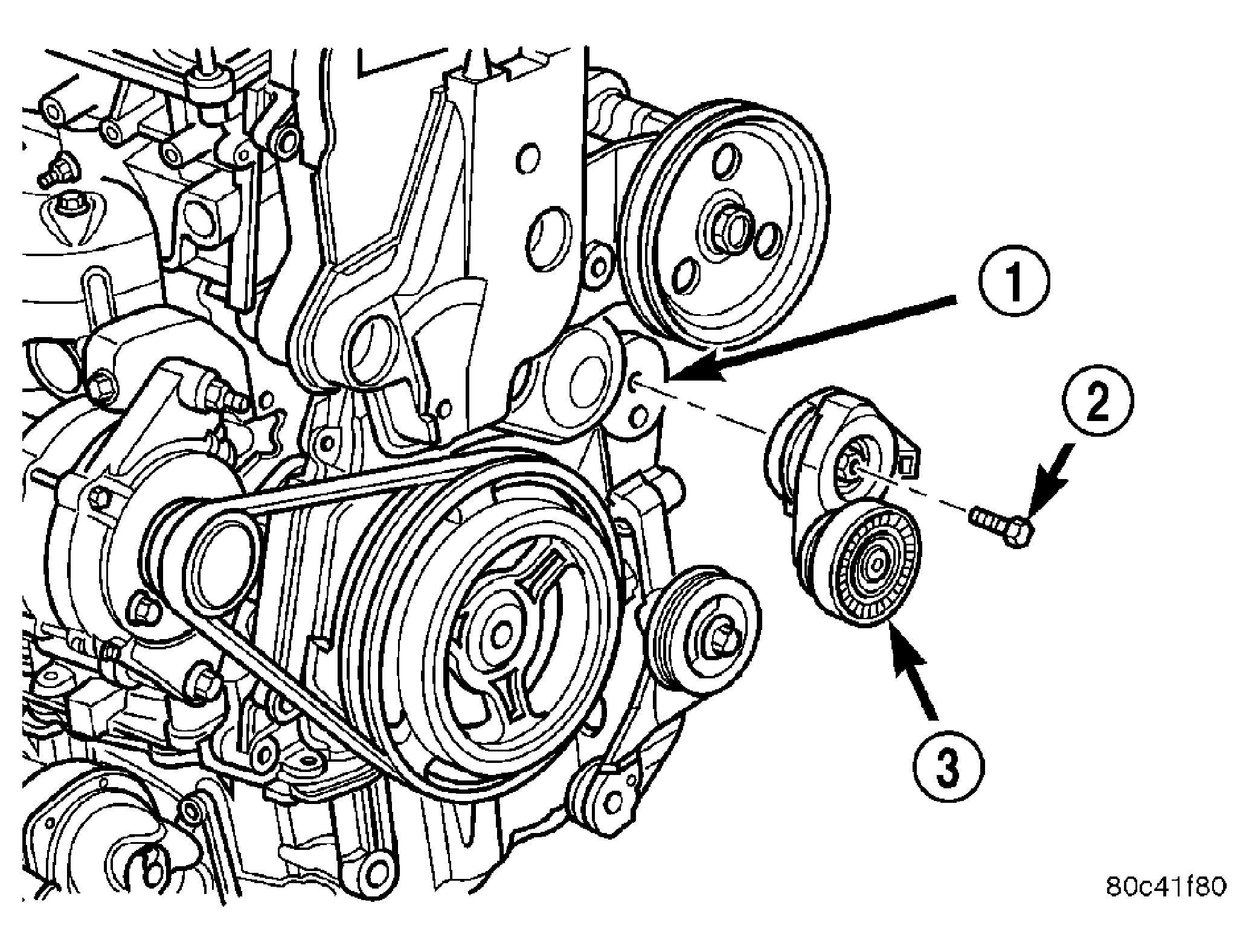

Fig 1: Automatic Belt Tensioner - 2.0L/2.4L
GC0021795Courtesy of DAIMLERCHRYSLER CORP.
1 - TORQUE STRUT BRACKET
2 - BOLT
3 - AUTOMATIC BELT TENSIONER ASSEMBLY
  1. Remove power steering/air conditioning compressor belt, (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
  2. Remove tensioner mounting bolt (2) and remove tensioner assembly (3). See Fig 1.
  3. Remove tensioner pulley, if replacing the pulley.
