1.6L SOHC Engine

Fig 1: Splash Shield - 1.6L
GC0040983Courtesy of DAIMLERCHRYSLER CORP.
1 - RIGHT MOUNT BOLT ACCESS PLUG
2 - FASCIA
3 - SPLASH SHIELD
4 - CRANKSHAFT BOLT ACCESS PLUG
  1. Disconnect negative battery cable.
  2. Raise vehicle on hoist.
  3. Remove belt splash shield (3).

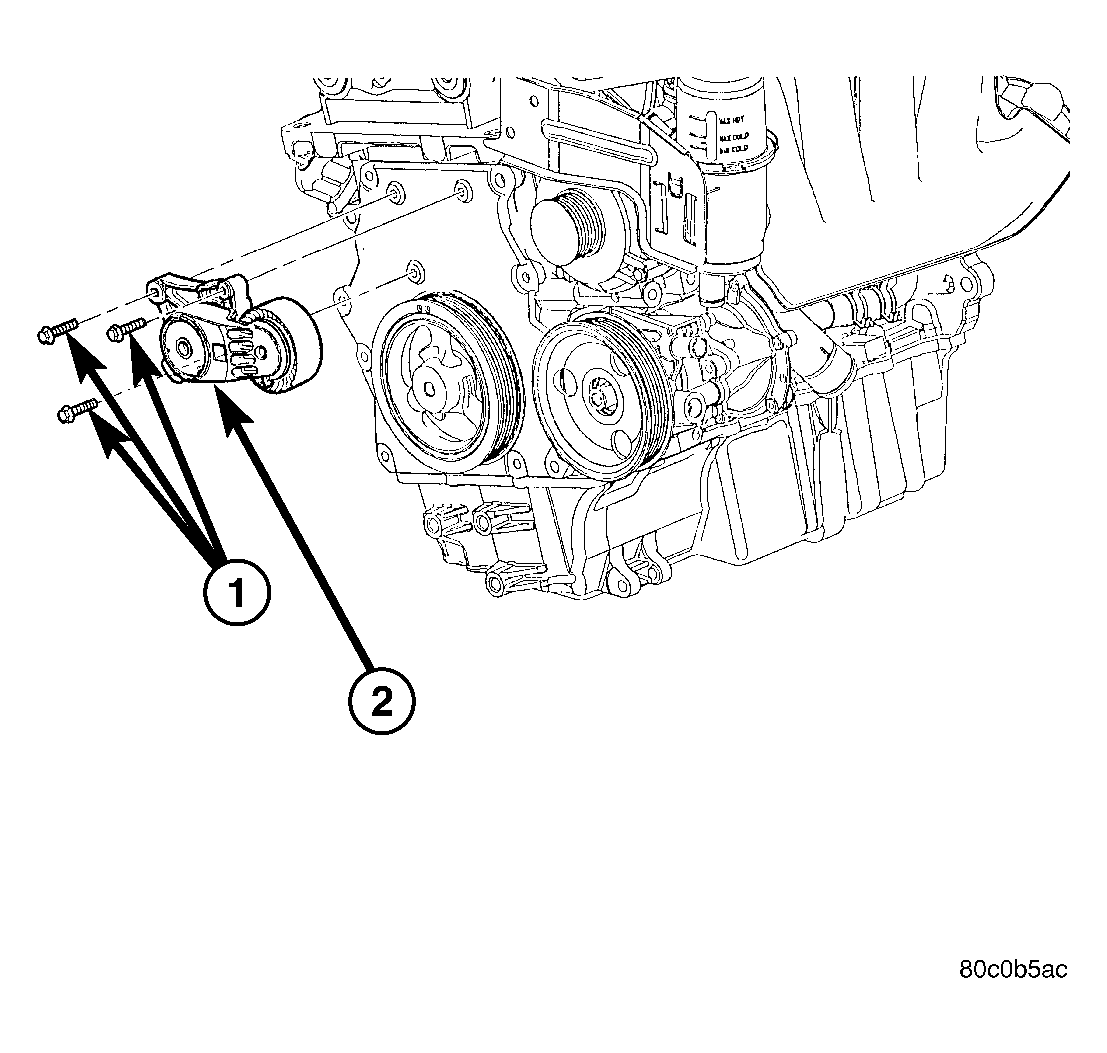

    Fig 2: Accessory Drive Belt Tensioner - 1.6L
    GC0021788Courtesy of DAIMLERCHRYSLER CORP.
    1 - ACCESSORY DRIVE BELT TENSIONER FASTENERS
    2 - ACCESSORY DRIVE BELT TENSIONER
  4. Remove accessory drive belt, (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
  5. Remove fasteners (1) securing accessory drive belt tensioner (2) to timing chain cover. Remove accessory drive belt tensioner (2). See Fig 2.
