Power Steering Pump/Air Conditioning Compressor Belt

Fig 1: Splash Shield - 2.0/2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - RIGHT MOUNT BOLT ACCESS PLUG

2 - FASCIA

3 - SPLASH SHIELD

4 - CRANKSHAFT BOLT ACCESS PLUG

1. Remove belt splash shield (3). See Fig 1.

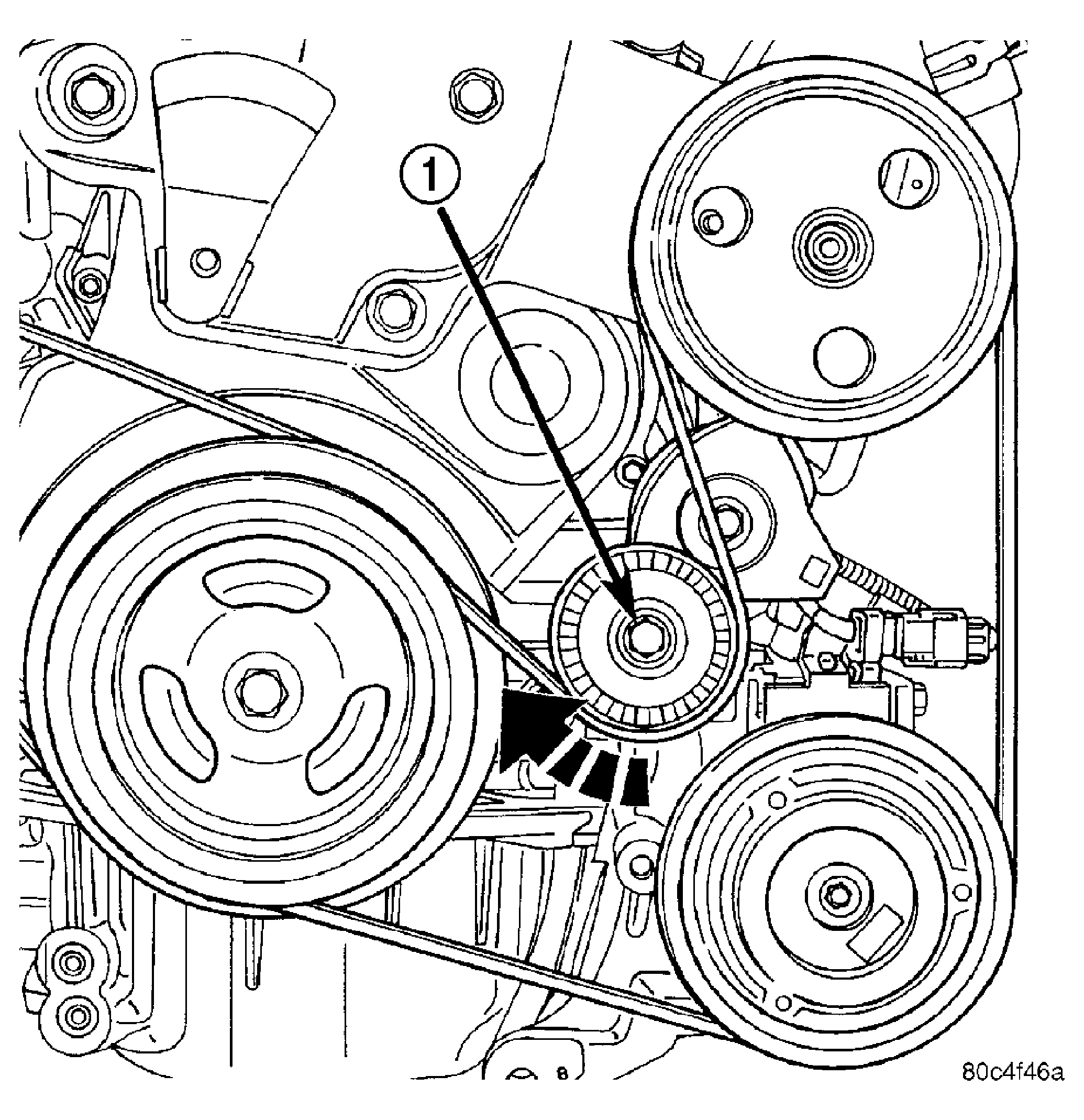

   Fig 2: REMOVING ACCESSORY BELT

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - BOLT

2. Using a wrench, rotate belt tensioner clockwise until belt can be removed from power steering pump pulley. Gently, release spring tension on tensioner.

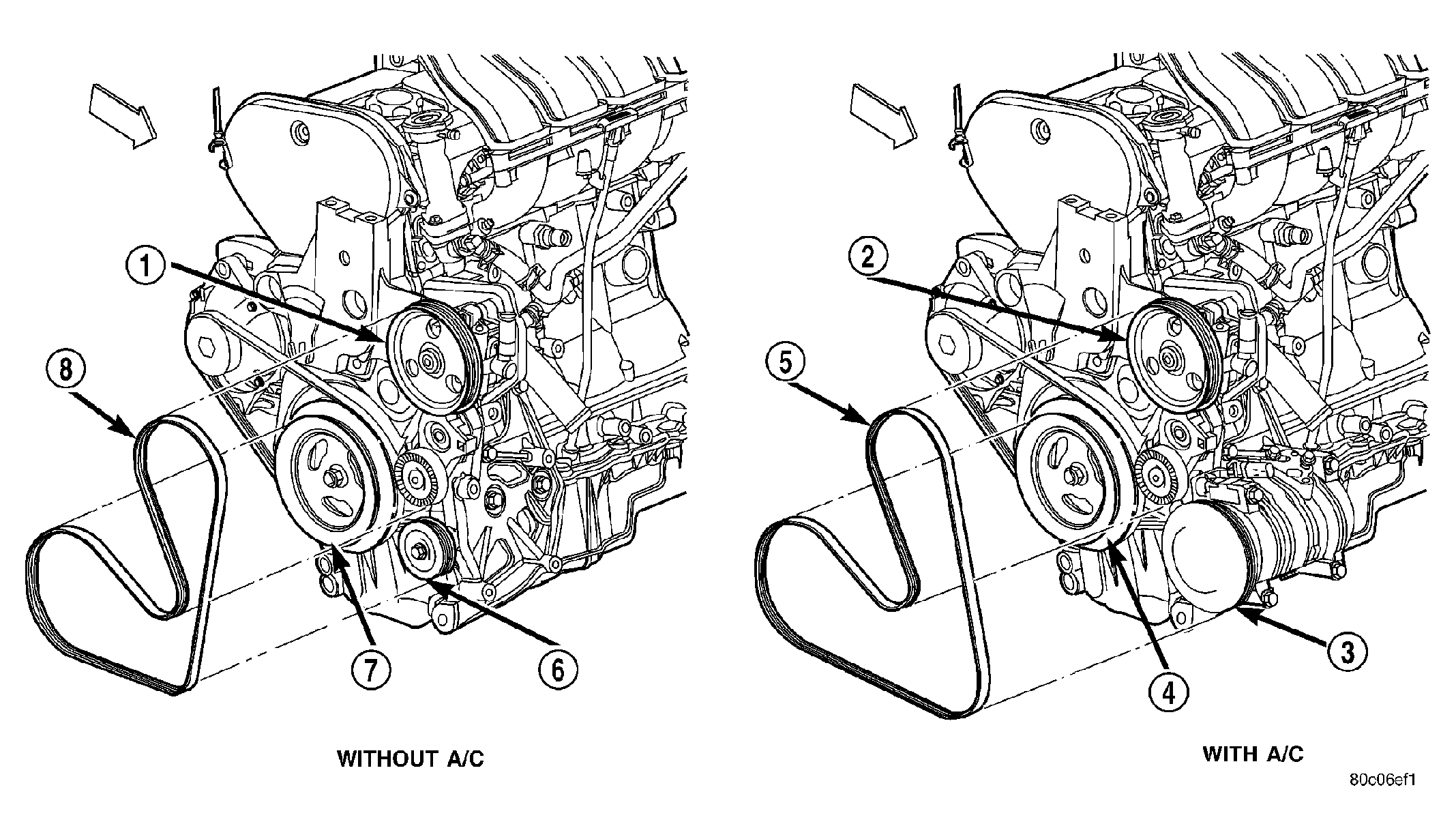

   Fig 3: ACCESSORY BELT

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - POWER STEERING PUMP PULLEY

   2 - POWER STEERING PUMP PULLEY

   3 - AIR CONDITIONING COMPRESSOR PULLEY

   4 - CRANKSHAFT PULLEY

   5 - BELT

   6 - IDLER PULLEY

   7 - CRANKSHAFT PULLEY

   8 - BELT

3. Remove belt (8). See Fig 3.
