Generator Belt

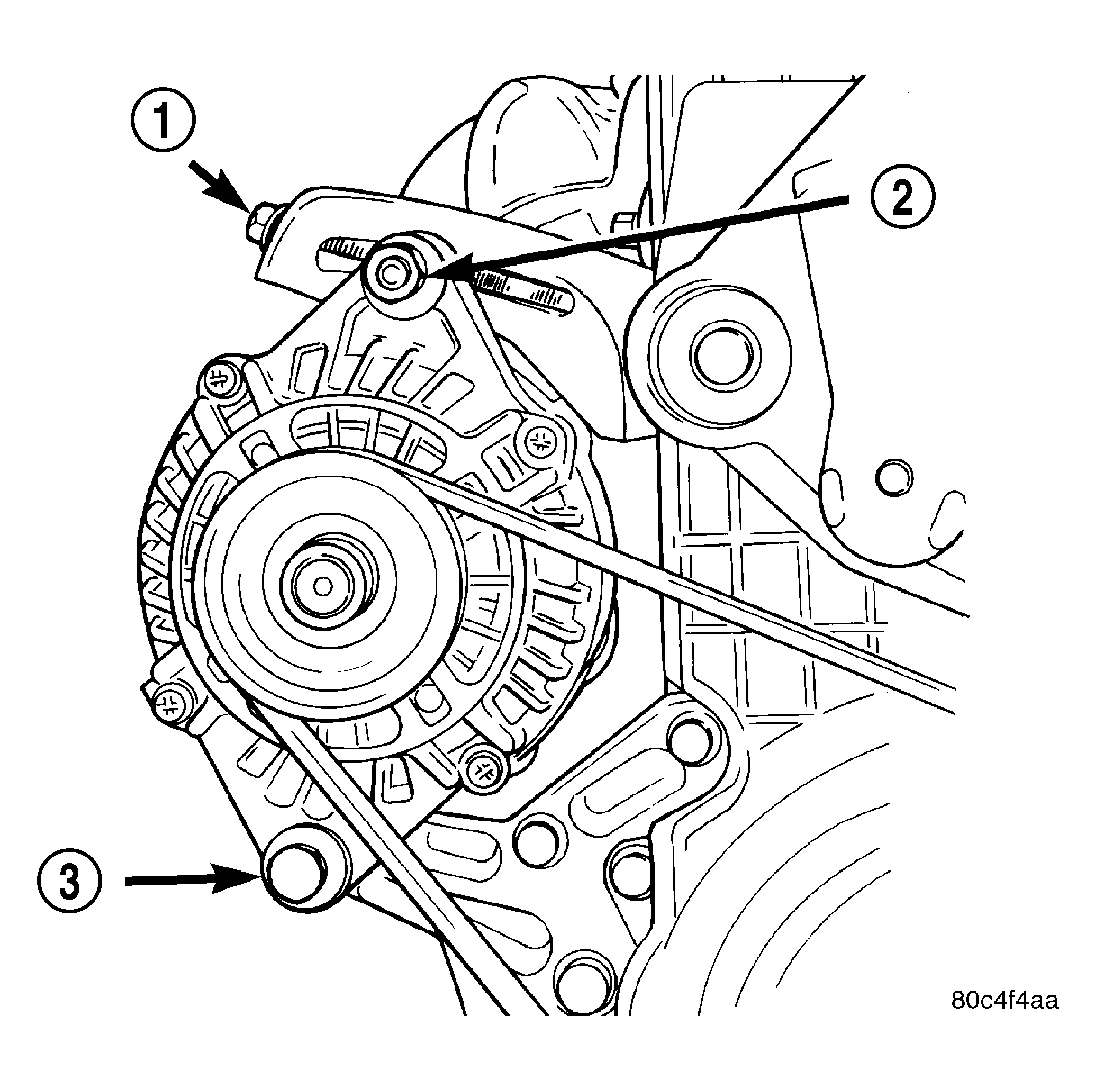

Fig 1: ADJUSTING GENERATOR BELT
GC0021793Courtesy of DAIMLERCHRYSLER CORP.
1 - ADJUSTING BOLT
2 - LOCKING NUT
3 - PIVOT BOLT
  1. Remove power steering pump/air conditioning compressor drive belt.
  2. Loosen pivot bolt (3), then locking nut (2) and adjusting bolt (1). See Fig 1.
  3. Remove generator belt.
