1.6L SOHC Engine

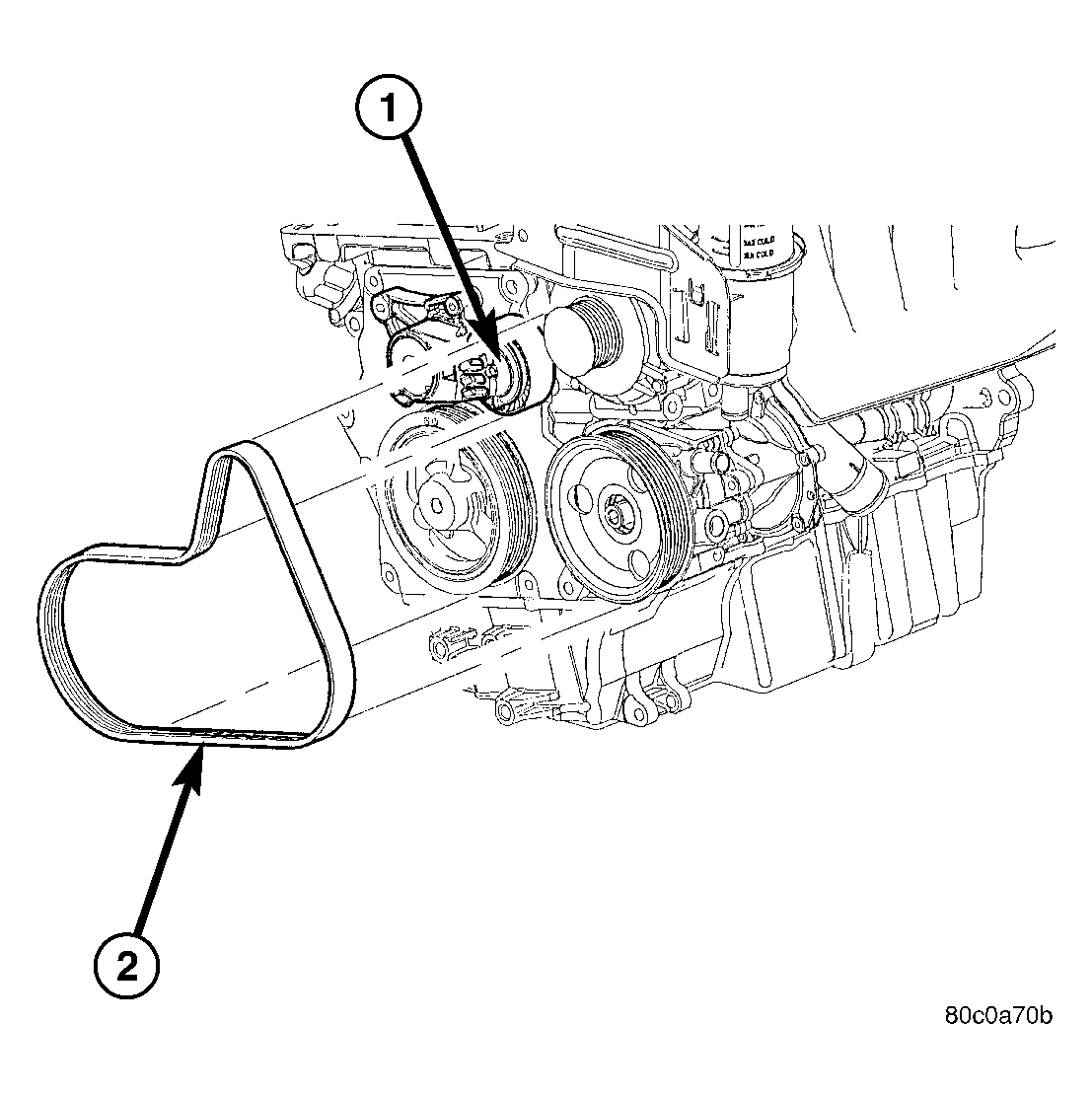

Fig 1: ACCESSORY DRIVE BELT WITHOUT A/C - 1.6L
GC0021785Courtesy of DAIMLERCHRYSLER CORP.
1 - ACCESSORY DRIVE BELT TENSIONER
2 - ACCESSORY DRIVE BELT
NOTE: When installing drive belt on the pulleys, make sure that belt is properly routed and all V-grooves make proper contact with pulley grooves.
  1. Install belt (2) around all the pulleys except for the generator pulley.

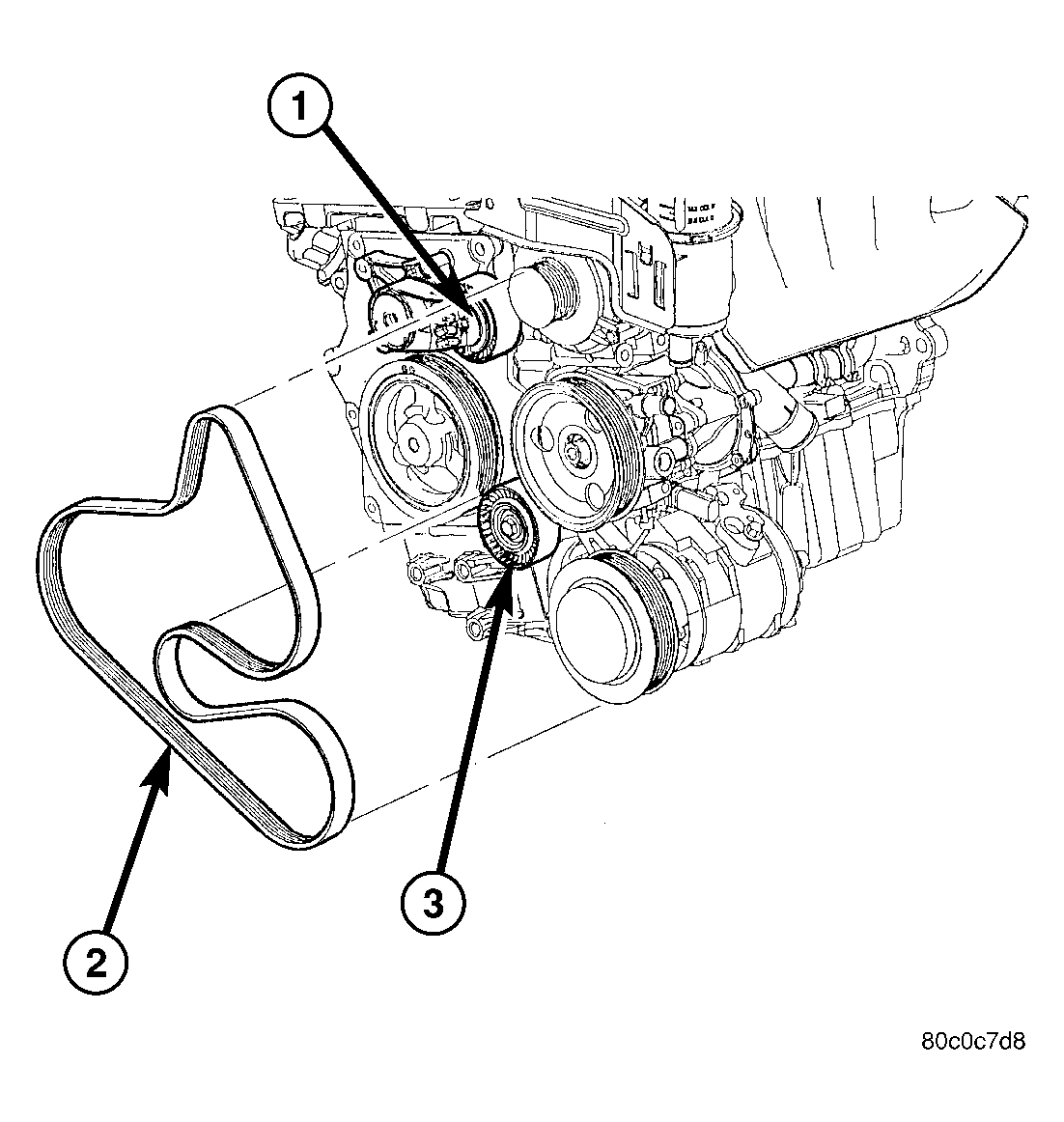

    Fig 2: ACCESSORY DRIVE BELT WITH A/C - 1.6L
    GC0021786Courtesy of DAIMLERCHRYSLER CORP.
    1 - ACCESSORY DRIVE BELT TENSIONER
    2 - ACCESSORY DRIVE BELT
    3 - IDLER PULLEY
  2. Rotate accessory drive belt tensioner (1) counterclockwise until accessory drive belt (2) can be installed on the generator pulley. Release spring tension onto belt.
  3. Remove breaker bar from accessory drive belt tensioner (1).
  4. Connect negative battery cable.
