2.2L Diesel Engine

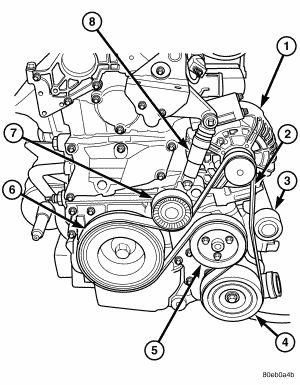

Fig 1: Accessory Belt - 2.2L Diesel

Courtesy of DAIMLERCHRYSLER CORP.

1 - GENERATOR

2 - ACCESSORY DRIVE BELT

3 - IDLER PULLEY

4 - A/C COMPRESSOR

5 - POWER STEERING PUMP

6 - CRANKSHAFT PULLEY/VIBRATION DAMPER

7 - BELT TENSIONER PULLEY

8 - BELT TENSIONER

The accessory drive belt (2) on the 2.2L Diesel engine is of the serpentine style. This belt is used to drive the generator, power steering pump, and the A/C compressor. The belt tensioner (8) automatically keeps tension on the belt. See Fig 1.
