Studs-Wheel Mounting Front: Removal

NOTE: Use the following procedure to remove one of five studs on one wheel hub.
  1. Access and remove front brake rotor. (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTOR - REMOVAL) .
    CAUTION: Do not hammer wheel mounting studs out of the hub. Damage to the wheel bearing will occur, leading to premature bearing failure.

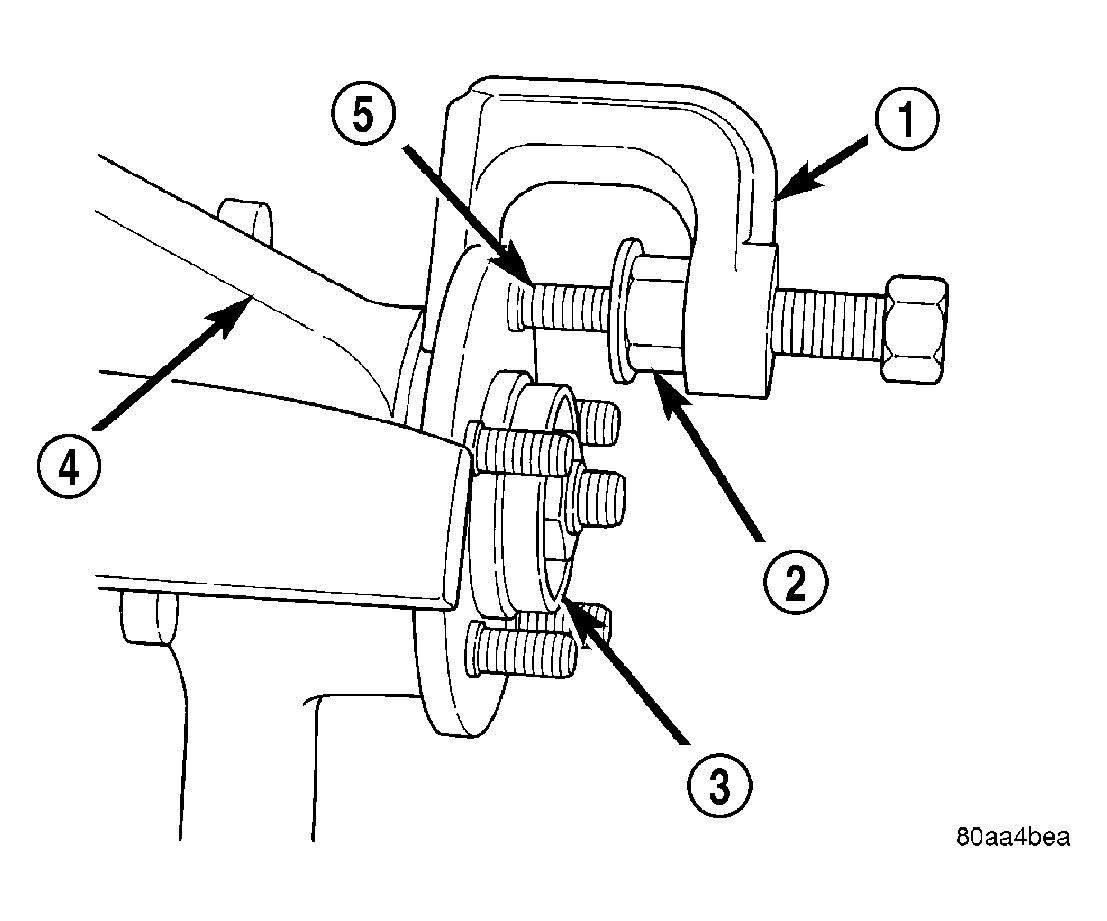

    Fig 1: Removing Front Wheel Stud
    GC0042982Courtesy of DAIMLERCHRYSLER CORP.
  2. If possible, install a standard wheel mounting nut (2) on the wheel mounting stud (5) being removed far enough so the threads on the stud are even with end of lug nut.
  3. Rotate the hub so the stud requiring removal is aligned with the notch cast into the front of the steering knuckle (4).
  4. Install Remover (1), Special Tool C-4150A, on the hub flange and wheel stud.
  5. Tighten the Remover, pushing the wheel mounting stud out the rear of the hub flange. When the shoulder of the stud is past the flange, remove the Remover from the hub.
  6. Remove the nut from the stud, then remove the stud from the flange.
