Rear Suspension: Description

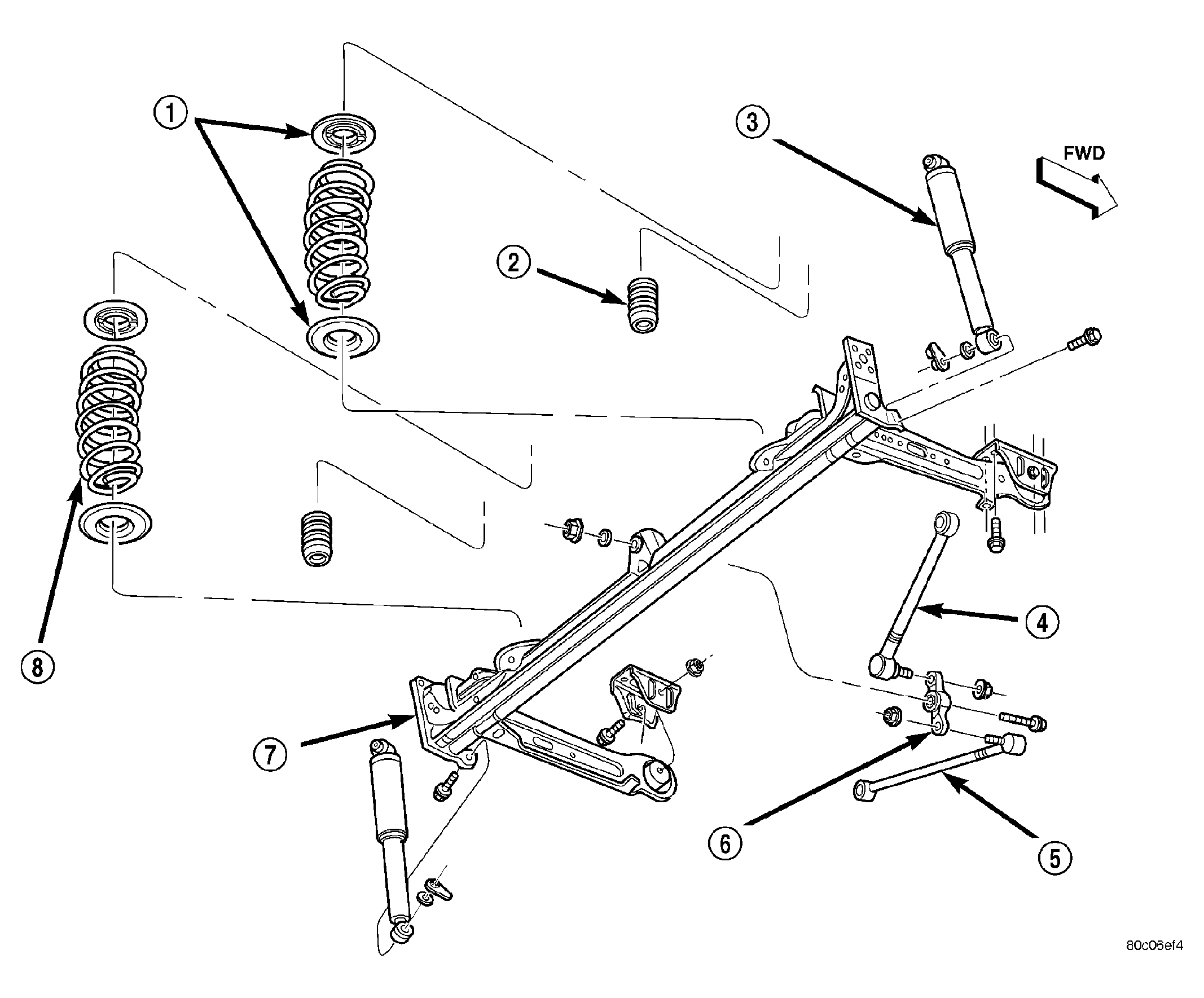

| 1 - ISOLATORS |
| 2 - JOUNCE BUMPER |
| 3 - SHOCK ABSORBER |
| 4 - WATTS LINK (UPPER) |
| 5 - WATTS LINK (LOWER) |
| 6 - BELL CRANK |
| 7 - AXLE |
| 8 - COIL SPRING |
The rear suspension design used on this vehicle is a twist beam trailing axle type with vertically mounted coil springs.
The rear suspension consists of these major components:
- Axle
- Coil spring (2 per vehicle)
- Hub and bearing (2 per vehicle)
- Jounce bumper (2 per vehicle)
- Shock absorber (2 per vehicle)
- Spindle (2 per vehicle)
- Stabilizer bar (Export)
- Watts link assembly
Refer to the individual components for additional information.
