Hub / Bearing: Description

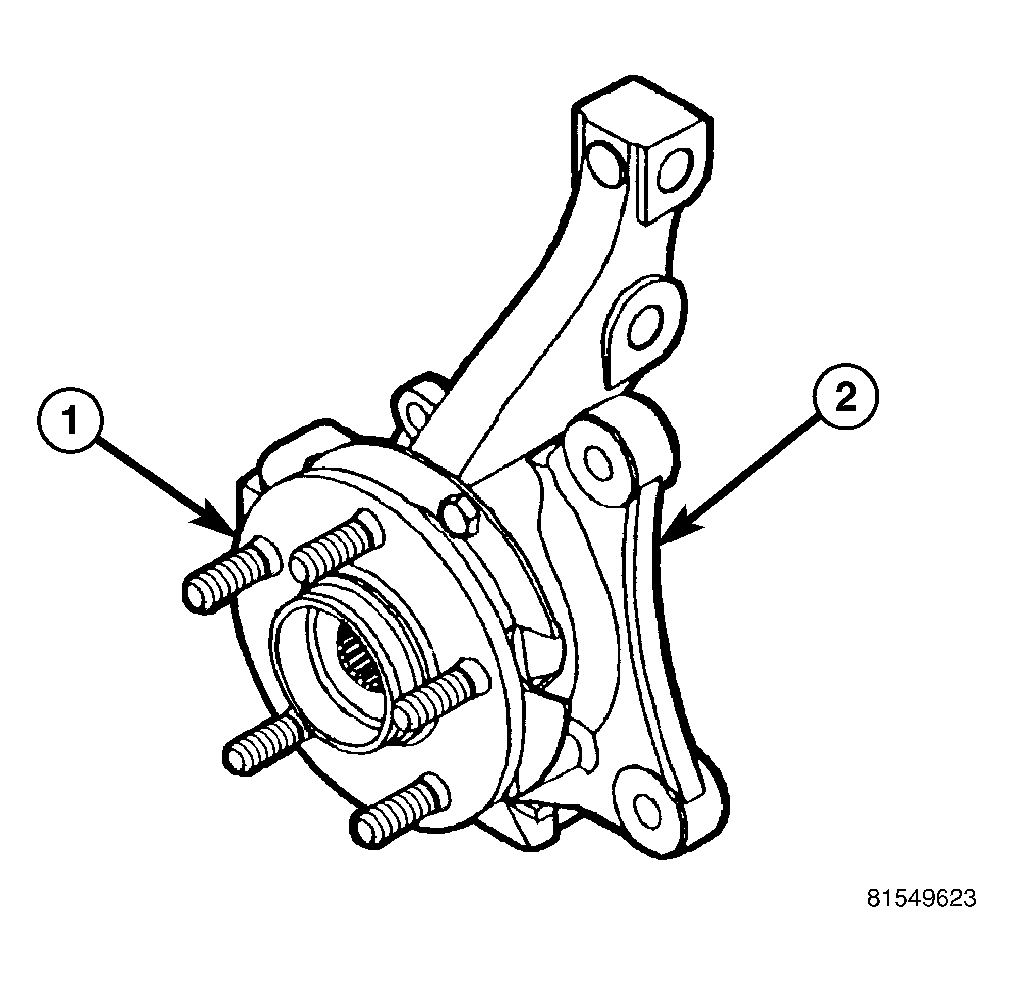

Fig 1: FRONT KNUCKLE & HUB

Courtesy of DAIMLERCHRYSLER CORP.

The wheel bearing and hub (1) are pressed into the knuckle (2). (Refer to SUSPENSION/FRONT/KNUCKLE - DESCRIPTION) .
