2.2L Diesel
- Slide hose clamps onto both ends of the power steering fluid supply hose far enough to clear the fittings on the reservoir and pump once hose is installed.
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - FLUID RESERVOIR |
| 2 - SUPPLY HOSE |
| 3 - PRESSURE HOSE |
- Install the power steering supply hose (2) into the engine compartment. First, route the pump end of the hose down to the pump, then place the reservoir end of the hose onto the fitting of the power steering fluid reservoir (1).
- Expand the hose clamp at the fluid reservoir end and slide it over the hose and fitting. Secure the clamp once it is past the bead formed into the fluid reservoir fitting.
- Place the pump end of the supply hose (2) onto the pump supply fitting. Expand the hose clamp and slide it over the hose and pump supply fitting. Secure the clamp once it is past the bead formed into the fluid supply fitting.
- Install radiator fan. (Refer to COOLING/ENGINE/RADIATOR FAN - INSTALLATION)
.

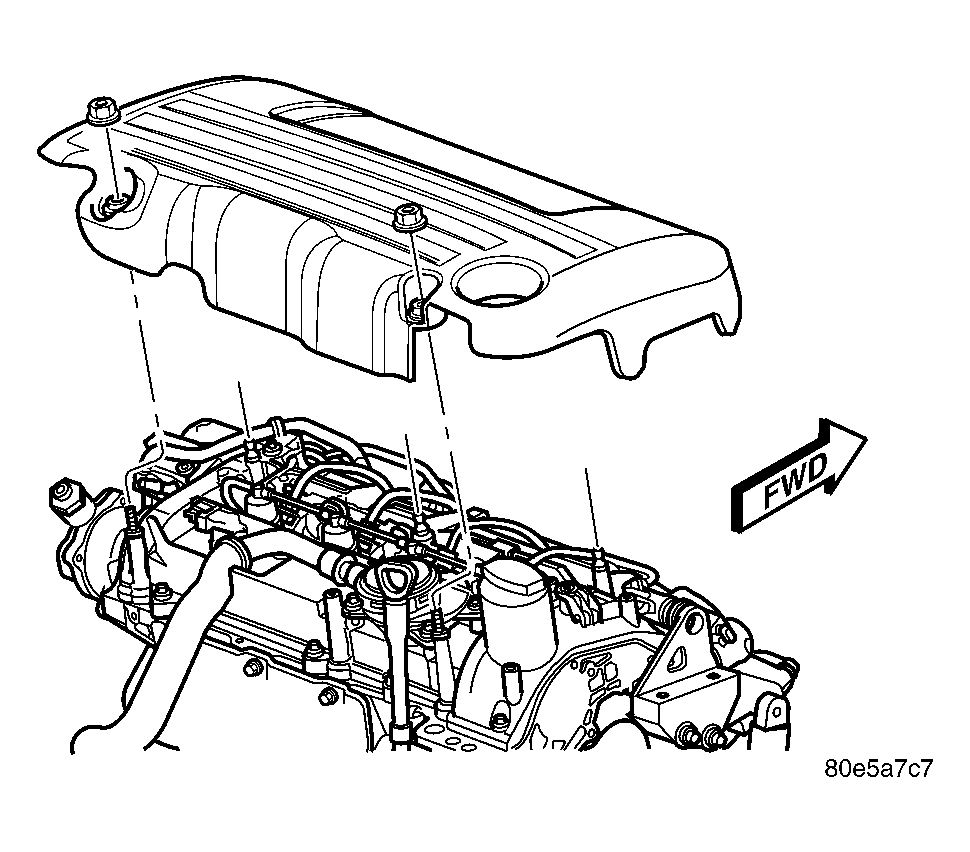

Courtesy of DAIMLERCHRYSLER CORP.
- Install the engine top appearance cover.
- Perform POWER STEERING PUMP INITIAL OPERATION procedure. (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
- Check for leaks at all hose connections.
