Fluid Cooler: Installation

NOTE: This procedure applies only to vehicles without a turbocharged engine that have an externally mounted cooler.

Slide a hose clamp onto the end of the power steering cooler inlet hose (gear end) far enough to clear the steel fitting on the power steering gear once the hose is installed.

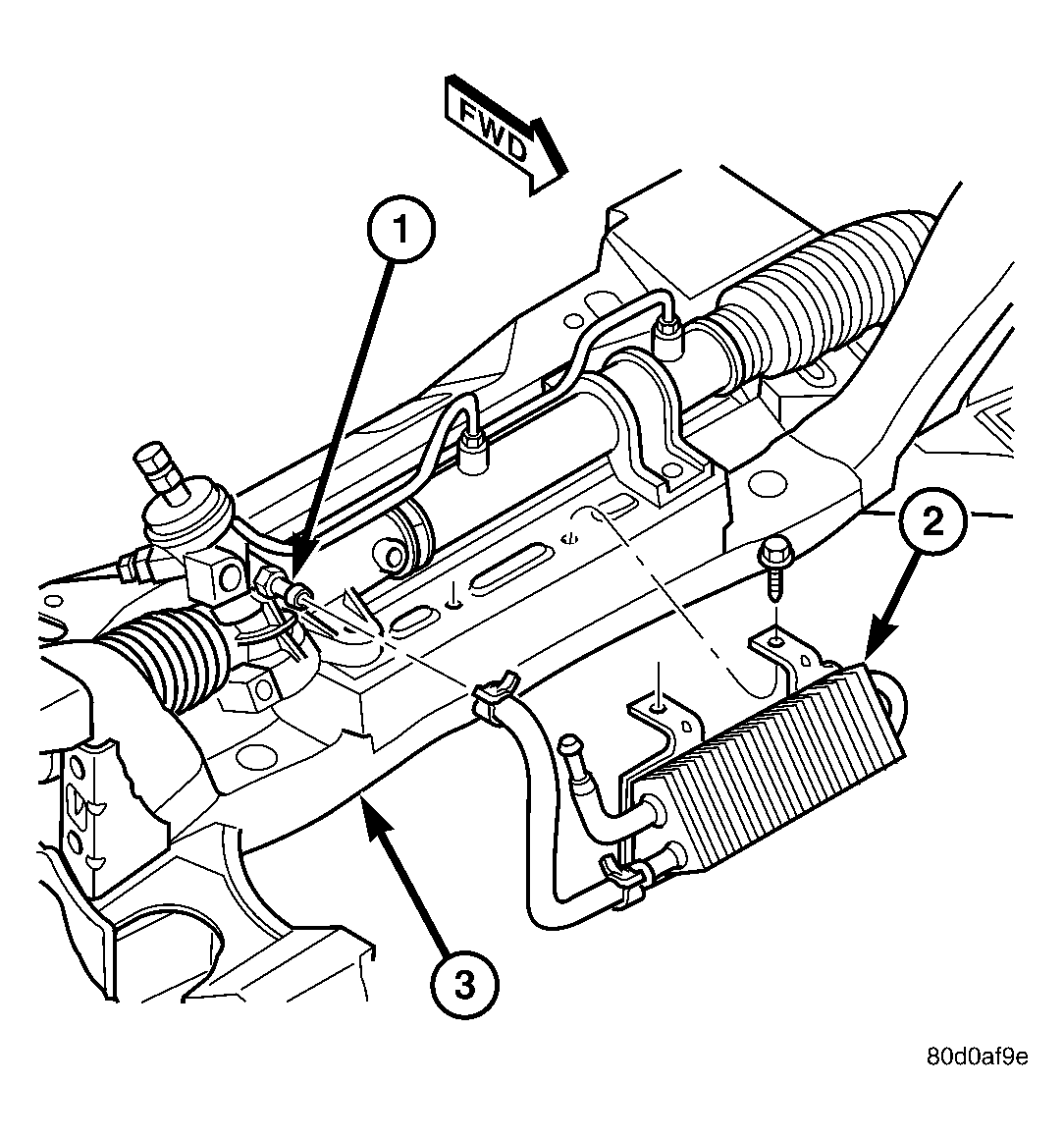

Fig 1: Power Steering Cooler - LHD

Courtesy of DAIMLERCHRYSLER CORP.

1 - STEERING GEAR OUTLET FITTING

2 - POWER STEERING COOLER

3 - FRONT SUSPENSION CROSSMEMBER

4 - TUBE CLAMP

LHD - Align the cooler outlet tube with the open tube routing clamp (4) on the right front of the power steering gear housing, and snap it into place. Close the clamp.
LHD - Slide the cooler inlet hose (with cooler (2) attached) onto the steering gear outlet fitting (1). Install the hose clamp on the hose past the bead formed into the fitting and secure in place.

LHD - Install the two screws attaching the cooler (2) to the front suspension crossmember (3). Tighten the screws to 10 N.m (90 in. lbs.).

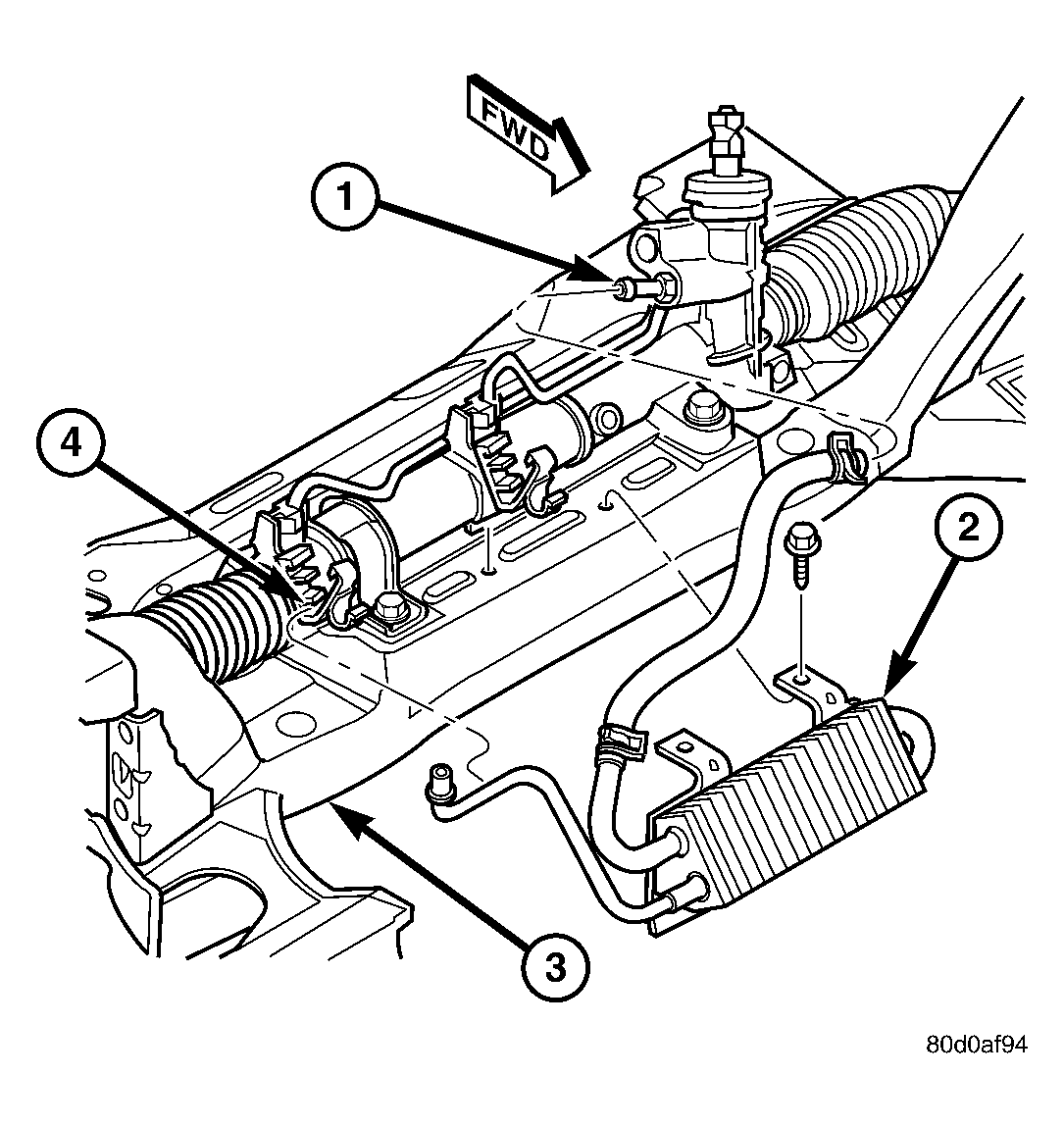

Fig 2: Power Steering Cooler - RHD

Courtesy of DAIMLERCHRYSLER CORP.

1 - STEERING GEAR OUTLET FITTING

2 - POWER STEERING COOLER

3 - FRONT SUSPENSION CROSSMEMBER

RHD - Slide the cooler inlet hose (with cooler (2) attached) onto the steering gear outlet fitting (1). Install the hose clamp on the hose past the bead formed into the fitting and secure in place.

RHD - Install the two screws attaching the cooler (2) to the front suspension crossmember (3). Tighten the screws to 10 N.m (90 in. lbs.).

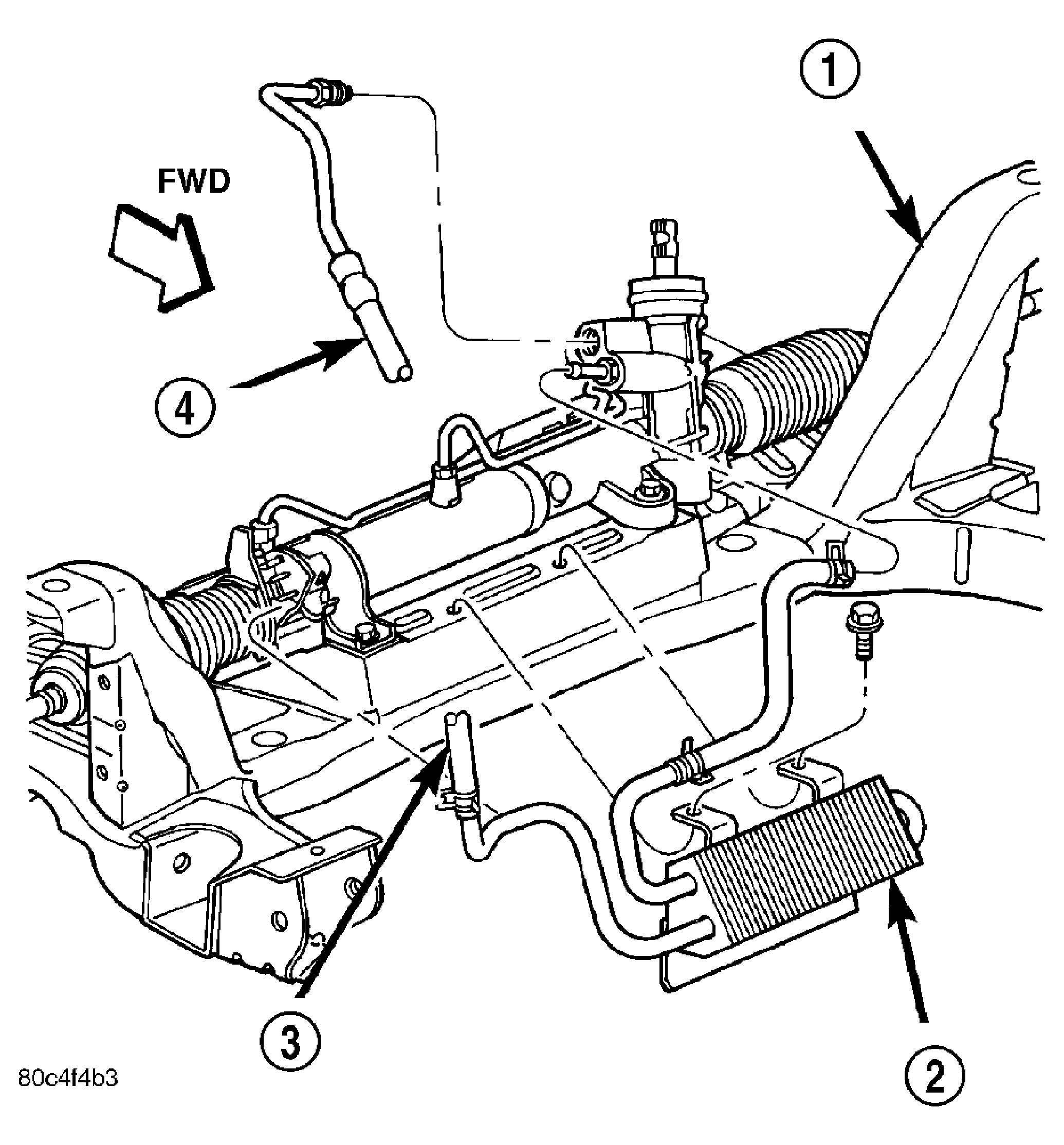

Fig 3: Return Hose At LHD Cooler

Courtesy of DAIMLERCHRYSLER CORP.

1 - CROSSMEMBER

2 - COOLER

3 - RETURN HOSE

4 - PRESSURE HOSE

Install the fluid return hose (3) on the power steering fluid cooler (2) outlet tube. Install the hose clamp on the hose past the bead formed into the end of the cooler tube and secure in place.
Lower the vehicle.
Perform the POWER STEERING PUMP INITIAL OPERATION procedure. (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
Check for leaks.
