2.4L/2.4L Turbo

The hydraulic pressure for operation of the power steering gear is provided by a belt-driven power steering pump. The power steering pump is a constant flow rate and displacement vane-type pump.

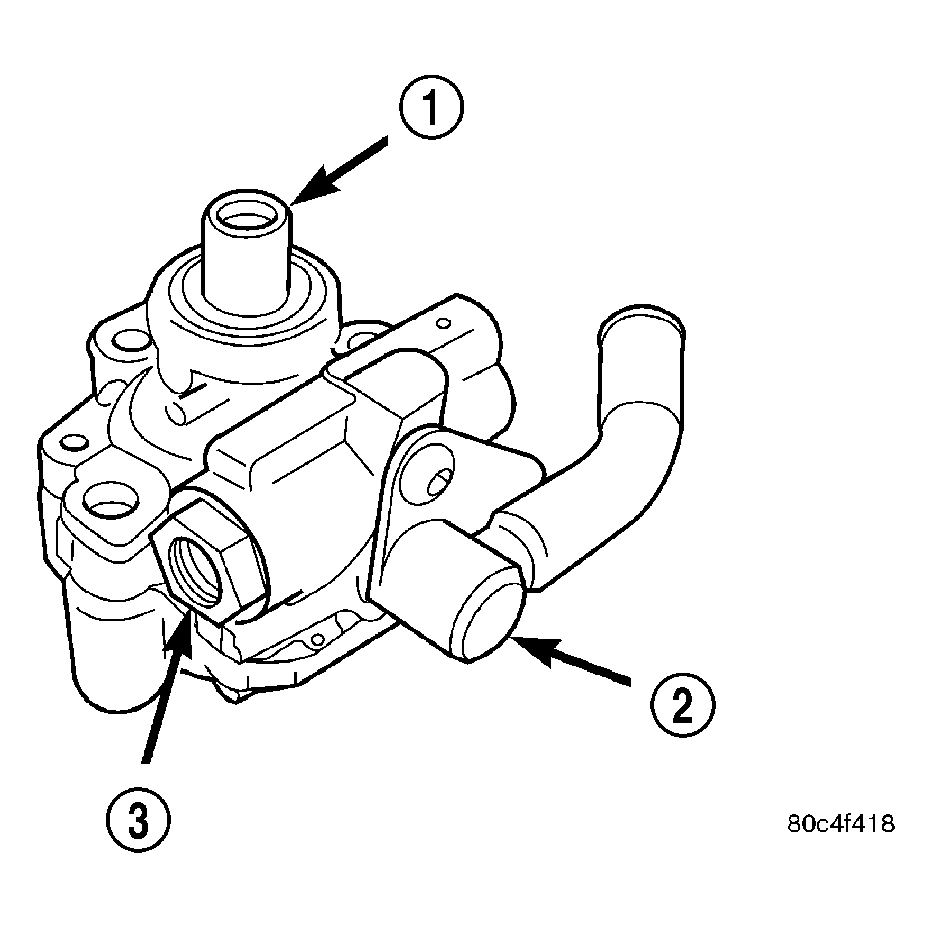

Fig 1: Power Steering Pump - 2.4L Engine

Courtesy of DAIMLERCHRYSLER CORP.

1 - SHAFT

2 - SUPPLY FITTING

3 - PRESSURE FITTING

The power steering pump for non-turbocharged engines consists of the power steering pump and the power steering pump pulley. The power steering fluid reservoir is remotely located on this vehicle.

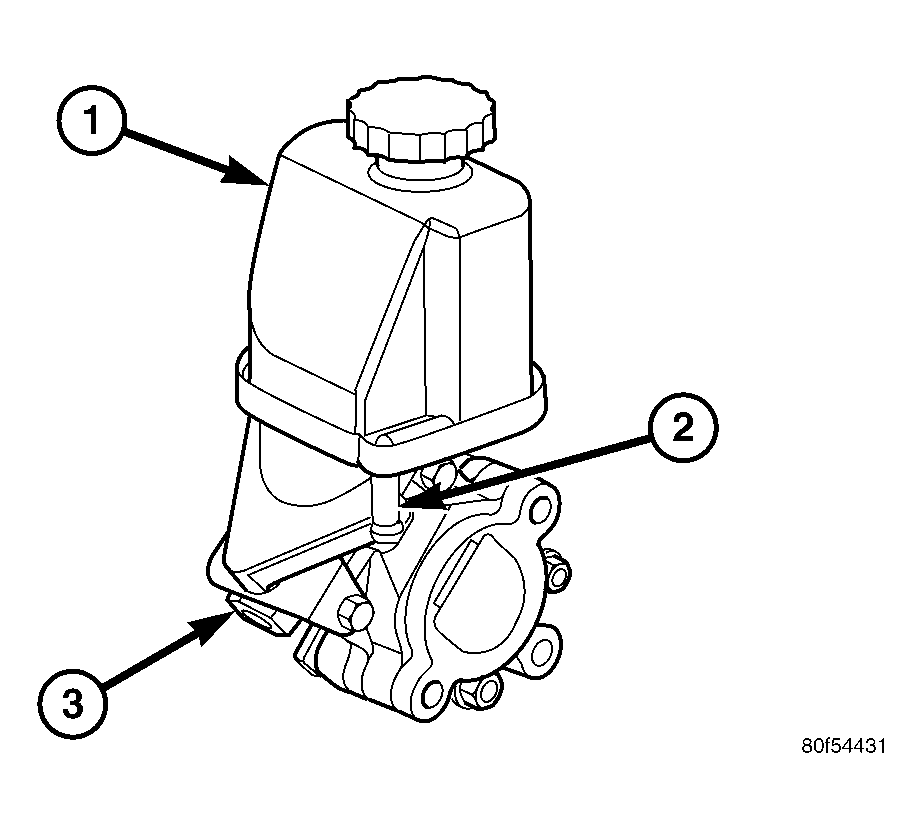

Fig 2: Power Steering Pump - 2.4L Turbo

Courtesy of DAIMLERCHRYSLER CORP.

1 - RESERVOIR

2 - RETURN FITTING

3 - PRESSURE FITTING

The power steering pump for turbocharged engines consists of the power steering pump, the reservoir (1) mounted to the top, and the power steering pump pulley.

No repair procedures are to be done on the internal components of the power steering pump. On turbocharged engine applications, the reservoir is serviced with the pump.
