Ignition Switch

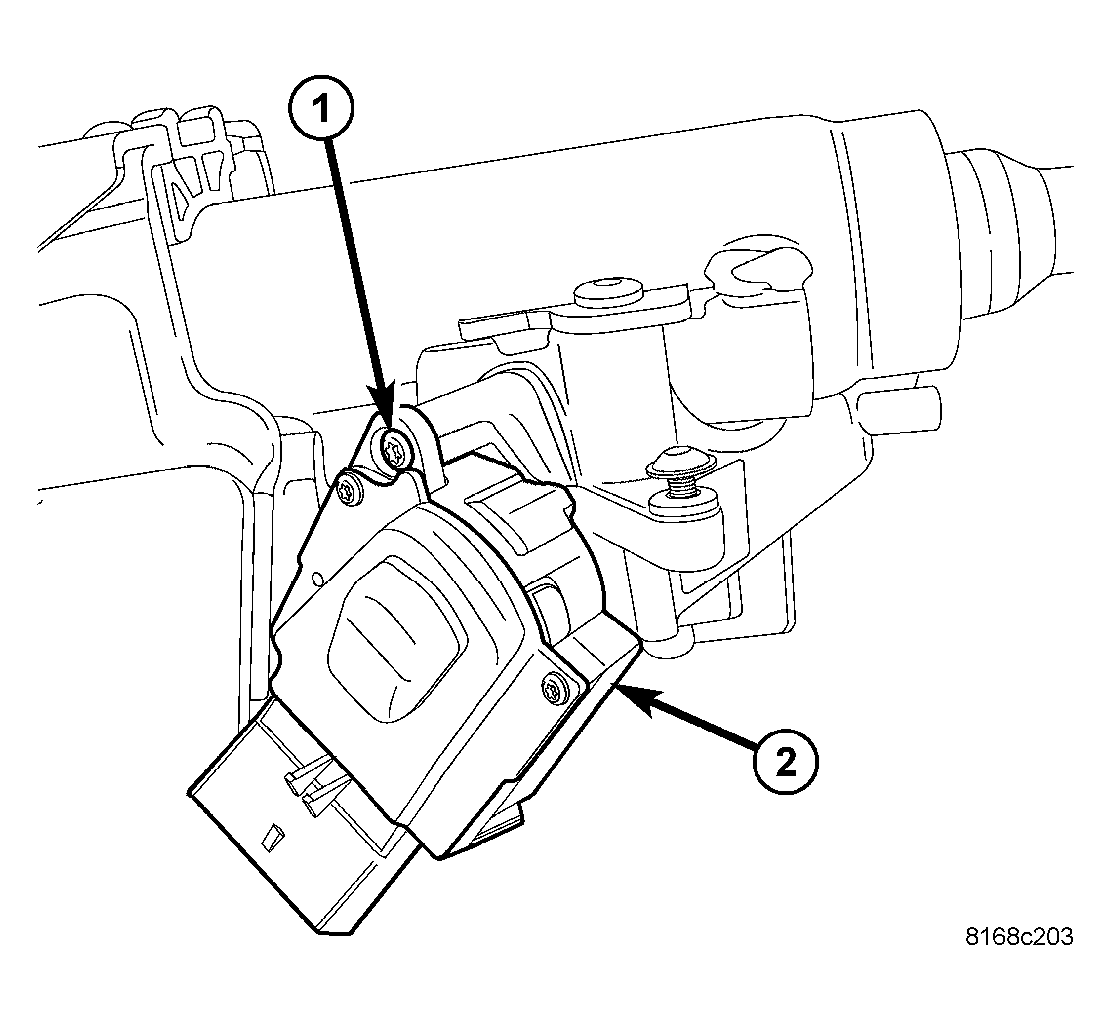

Fig 1: IGNITION SWITCH MOUNTING SCREW
GC0042957Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Lock cylinder housing previously removed.
  1. Lower the column tilt lever to the full-downward position.
  2. Remove the ignition switch (2) mounting screw (1).

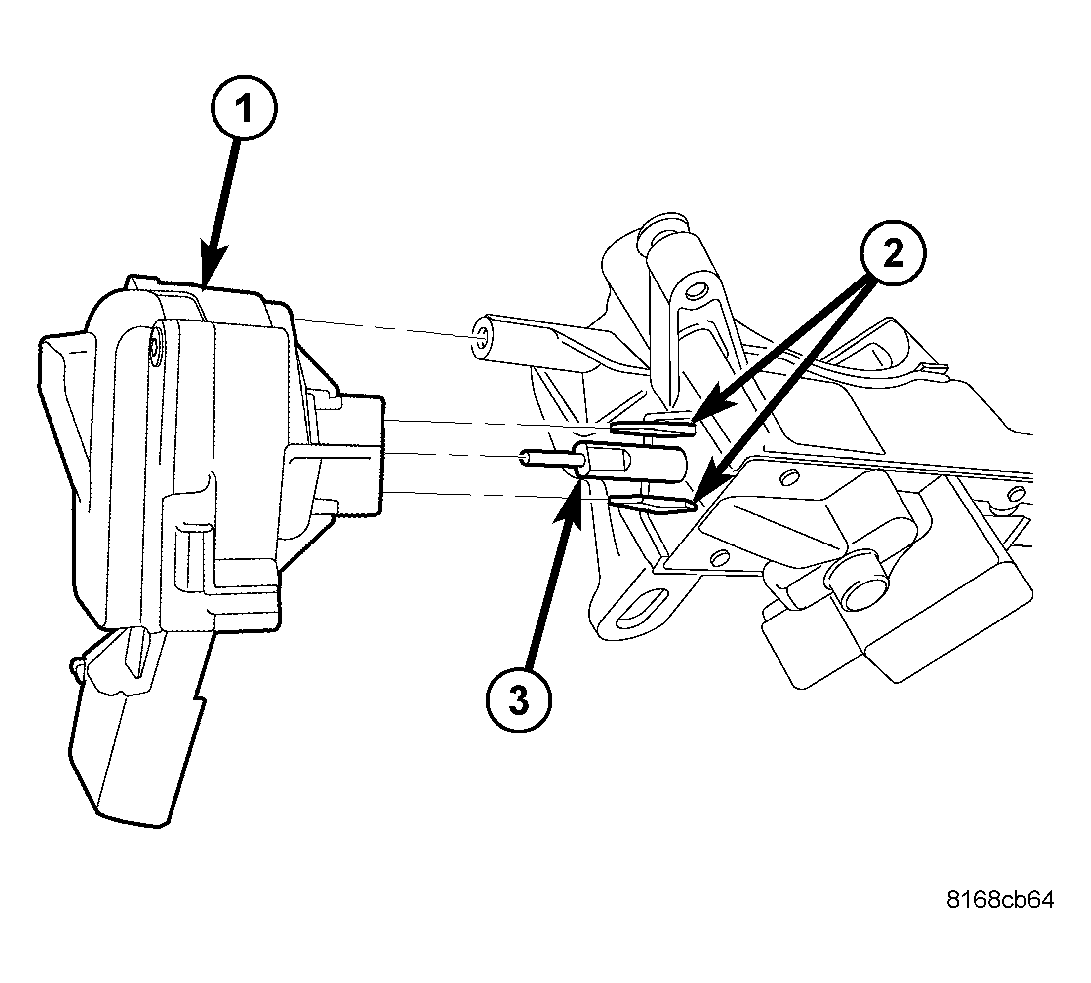

    Fig 2: IGNITION SWITCH REMOVAL/INSTALLATION
    GC0042958Courtesy of DAIMLERCHRYSLER CORP.
  3. Pull the switch (1) straight out and off the retaining tabs (2) located on the lock cylinder housing.
