Lock Cylinder Housing

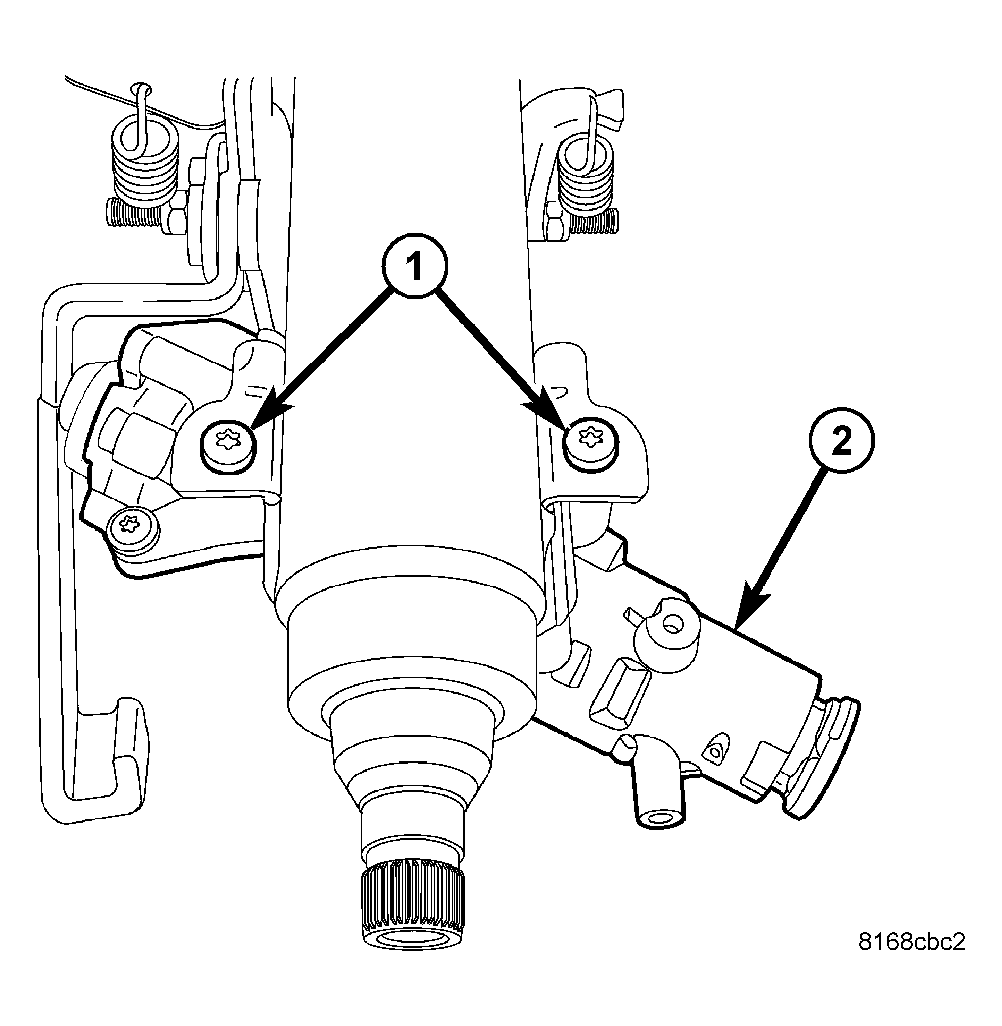

Fig 1: LOCK CYLINDER HOUSING MOUNTING
GC0042960Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the lock cylinder housing in the RUN position.
  2. Align the lock cylinder housing (2) with the steering column.
  3. Install the two screws (1) fastening the lock cylinder housing (2) to the column. Tighten the screws to 12 N.m (110 in. lbs.).
