Rear Seat Belt Buckle - Pt27: Installation

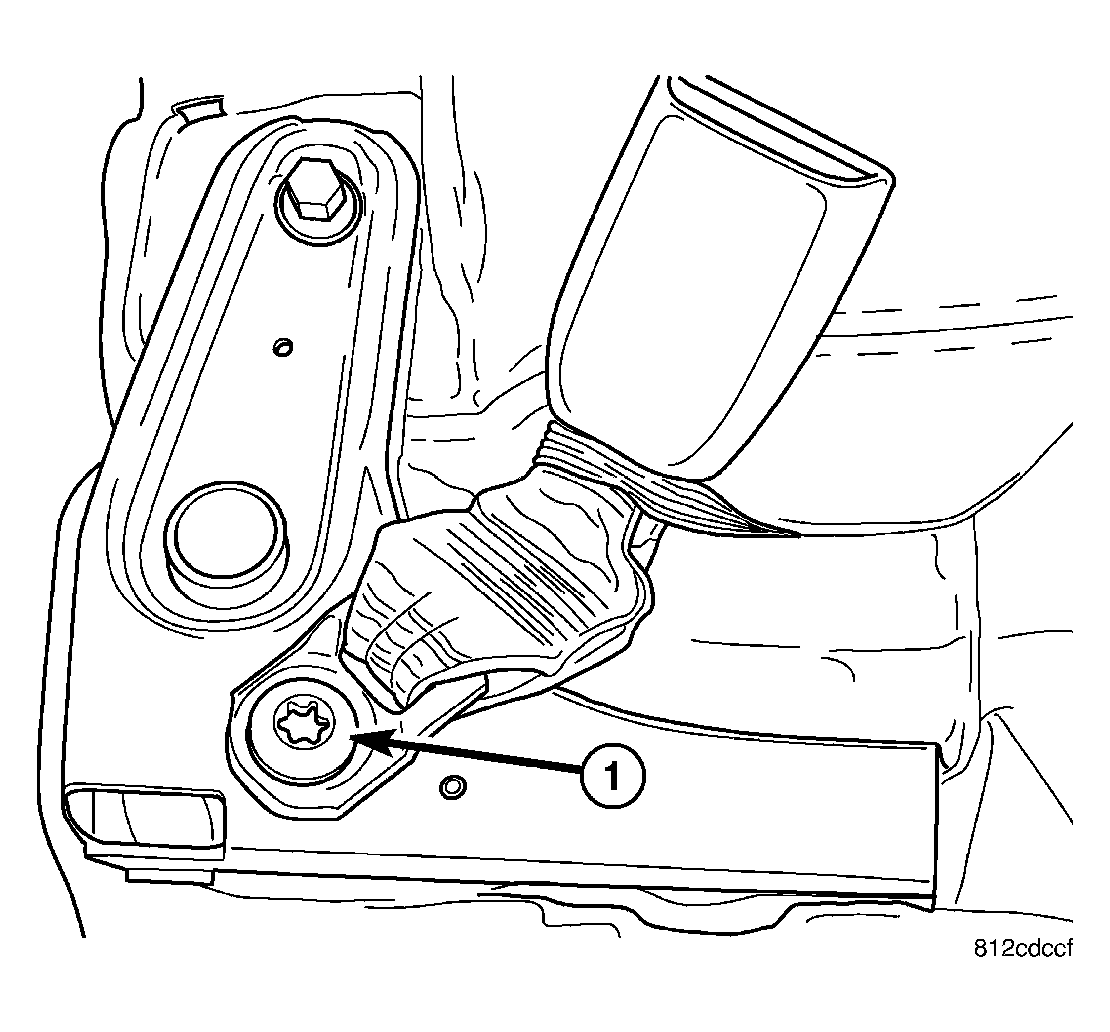

Fig 1: Seat Belt Buckle Anchor Bolt

Courtesy of DAIMLERCHRYSLER CORP.

1. Pull cushion cover back far enough to get at the seat belt buckle anchor bolt.
2. Position the seat belt buckle into position and install the anchor bolt (1). Tighten bolt to 40 N.m (30 ft. lbs.).
   Fig 2: Rear Seat Cushion Cover/Shield

   Courtesy of DAIMLERCHRYSLER CORP.
3. Install the two screws at the bottom of the cushion cover (1).
4. Install the two screws at the side of the seat cushion shield (1) at the buckle area.
5. Return the rear seat to the unfolded position.
6. Close door and decklid.
