Rear Seat Belt & Retractor - Pt27: Installation

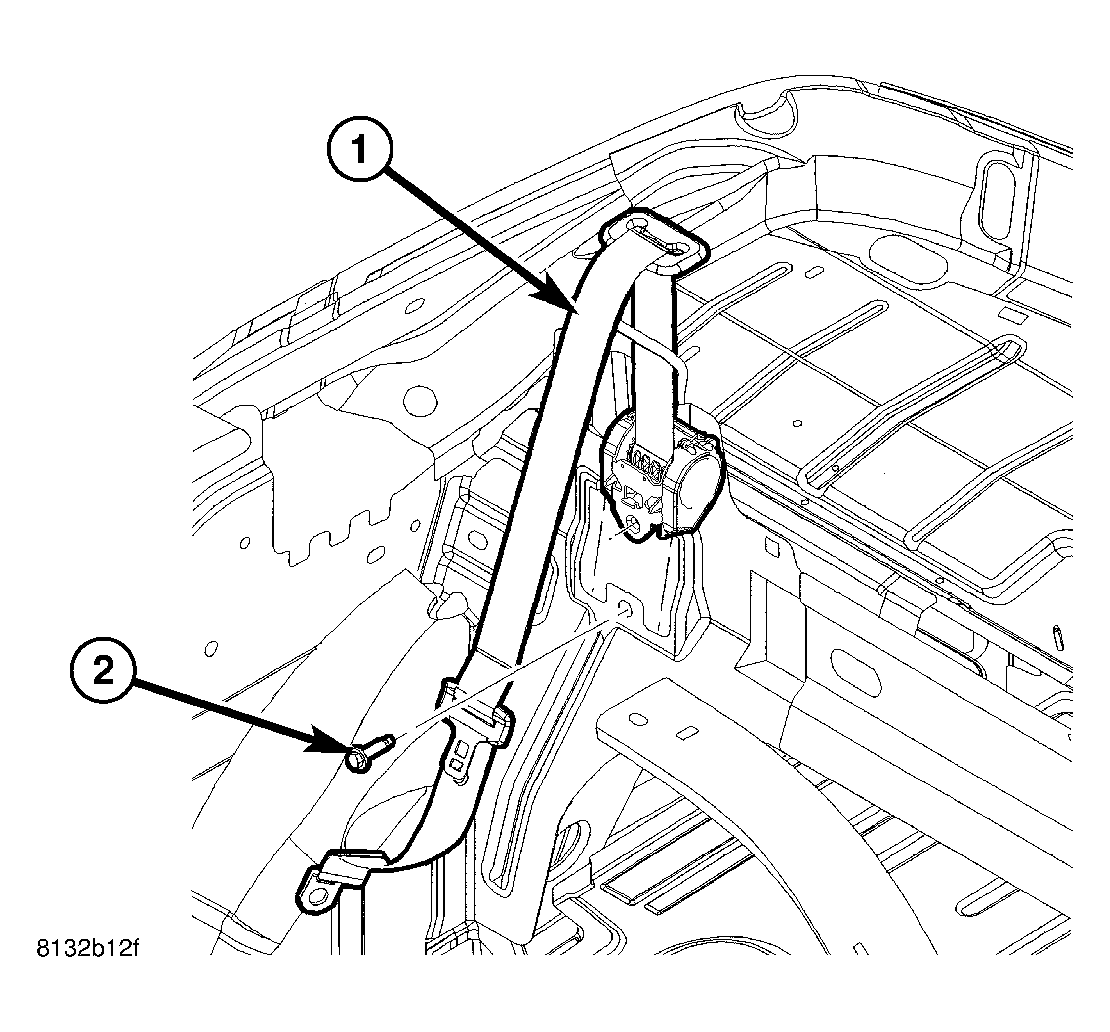

Fig 1: Removing/Installing Seat Belt & Retractor

Courtesy of DAIMLERCHRYSLER CORP.

1. Position seat belt & retractor into vehicle.
2. Install the one retaining bolt to the seat belt retractor (2). Torque bolt to 40 N.m (30 ft. lbs.).

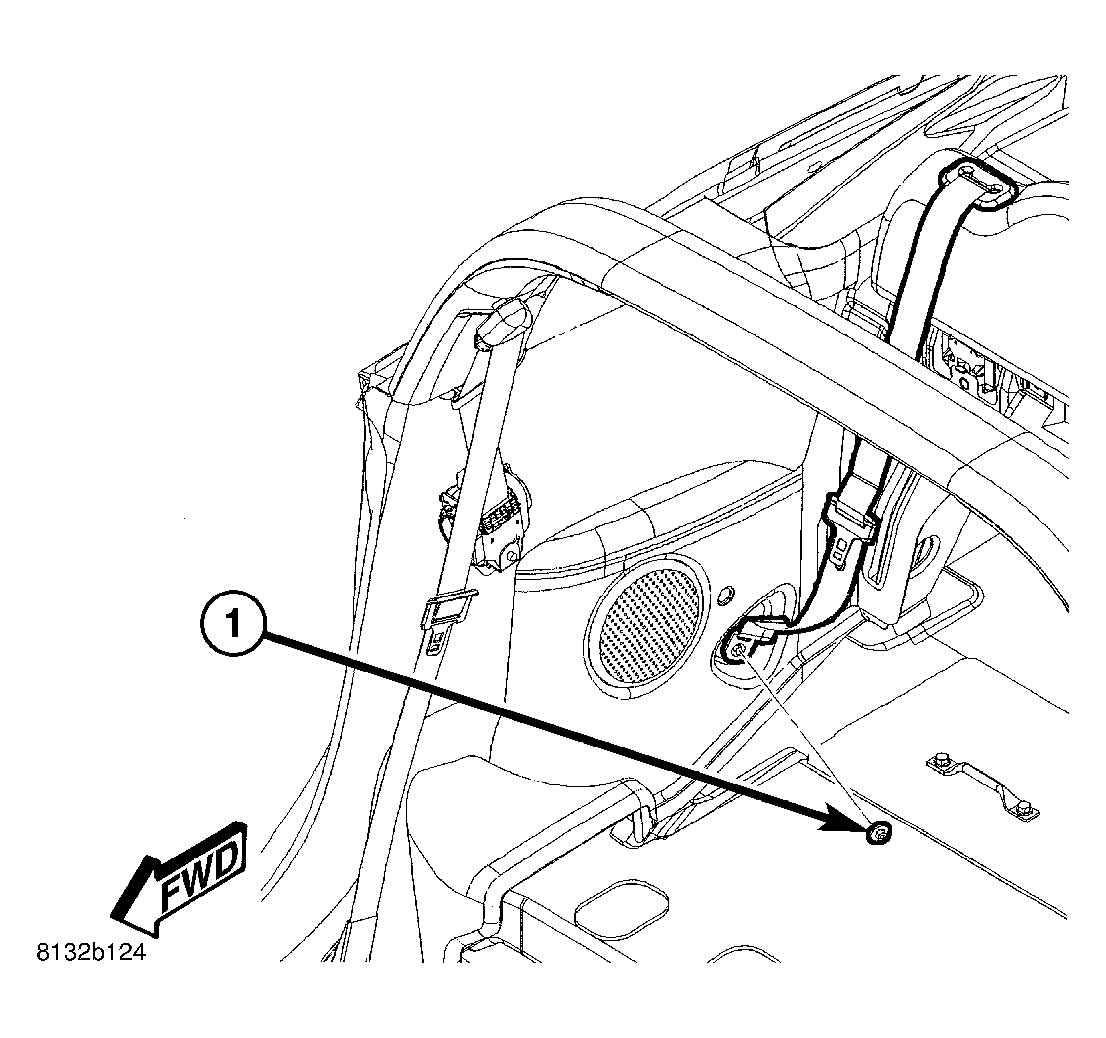

   Fig 2: Removing/Installing Seat Belt Anchor Nut

   Courtesy of DAIMLERCHRYSLER CORP.
3. Feed the seat belt webbing through the top of the rear seat upper bolster.
4. Install the four bolts to the rear seat upper bolster.
5. Install the Lower Quarter Trim Panel.
6. Install the lower seat belt anchor nut (1). Torque bolt to 40 N.m (30 ft. lbs.).
