Front Seat Belt And Retractor - Pt27: Installation

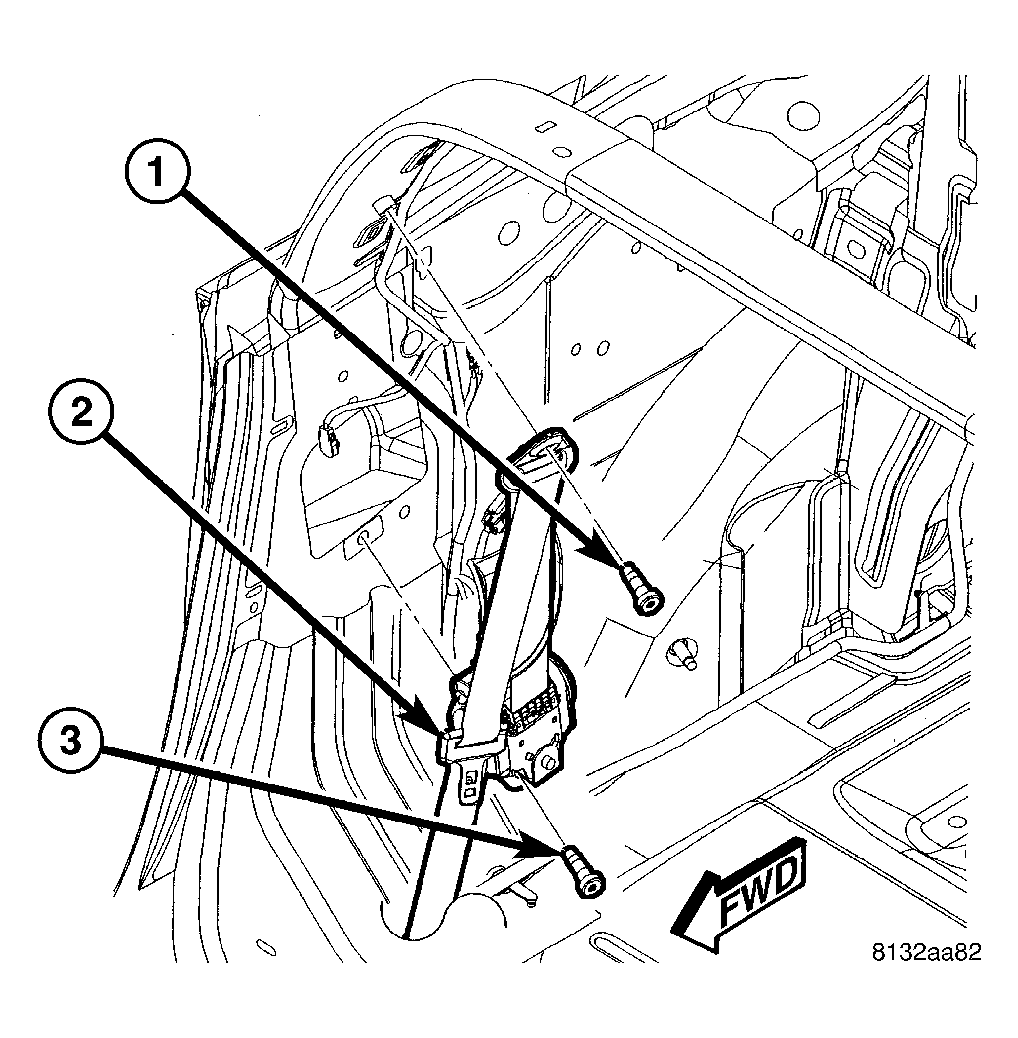

Fig 1: Removing/Installing Retractor

Courtesy of DAIMLERCHRYSLER CORP.

1. Position retractor in vehicle.
2. Install the one bolt (3) to the front seat belt retractor (2). Tighten bolt to 40 N.m (30 ft. lbs.).

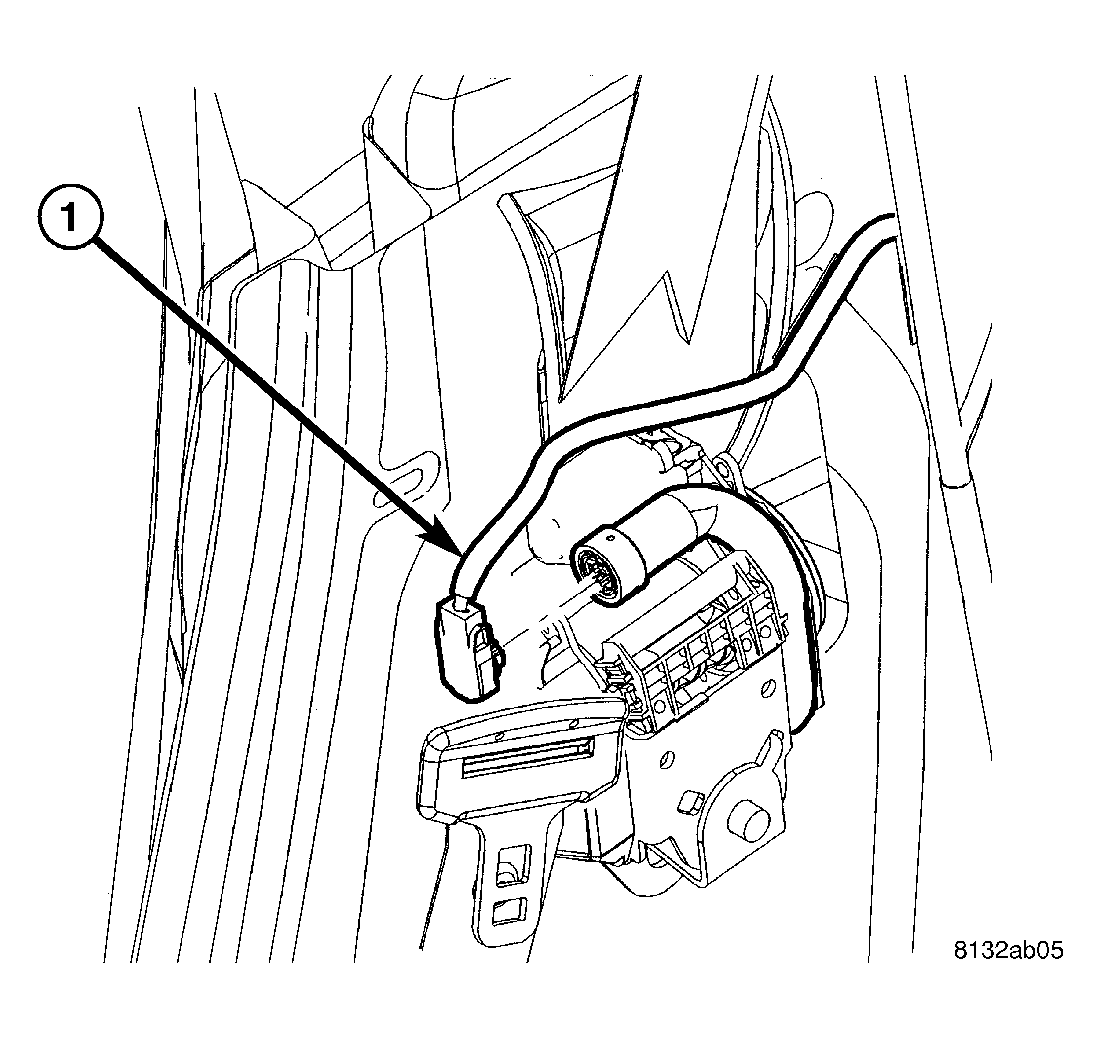

   Fig 2: Tensioner Squib Connector

   Courtesy of DAIMLERCHRYSLER CORP.
3. Connect the tensioner squib connector (1).

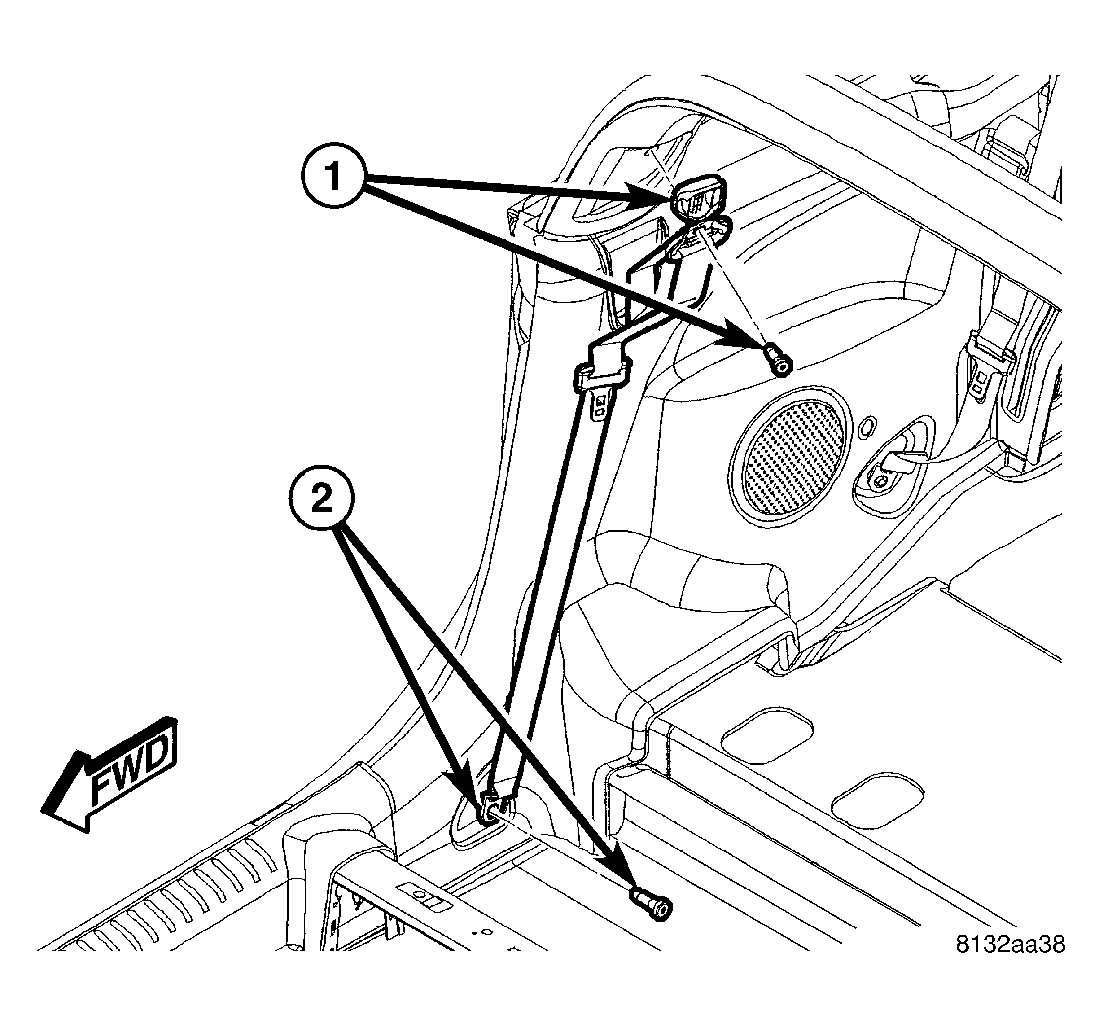

   Fig 3: Lower Seat Belt Anchor Bolt & Upper Turning Loop Retaining Bolt

   Courtesy of DAIMLERCHRYSLER CORP.
4. Install the Lower Quarter Trim Panel.
5. Install the upper turning loop retaining bolt (1). Tighten bolt to 40 N.m (30 ft. lbs.).
6. Install the seat belt anchor bolt (2). Tighten bolt to 40 N.m (30 ft. lbs.).
   Fig 4: Seat Belt Web Guide

   Courtesy of DAIMLERCHRYSLER CORP.
7. Route the seat belt within the seat belt web guide.

WARNING: Do not connect the battery negative cable (Refer to ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING - AIRBAG SYSTEM)  . Personal injury or death may result if the system test is not performed first.
