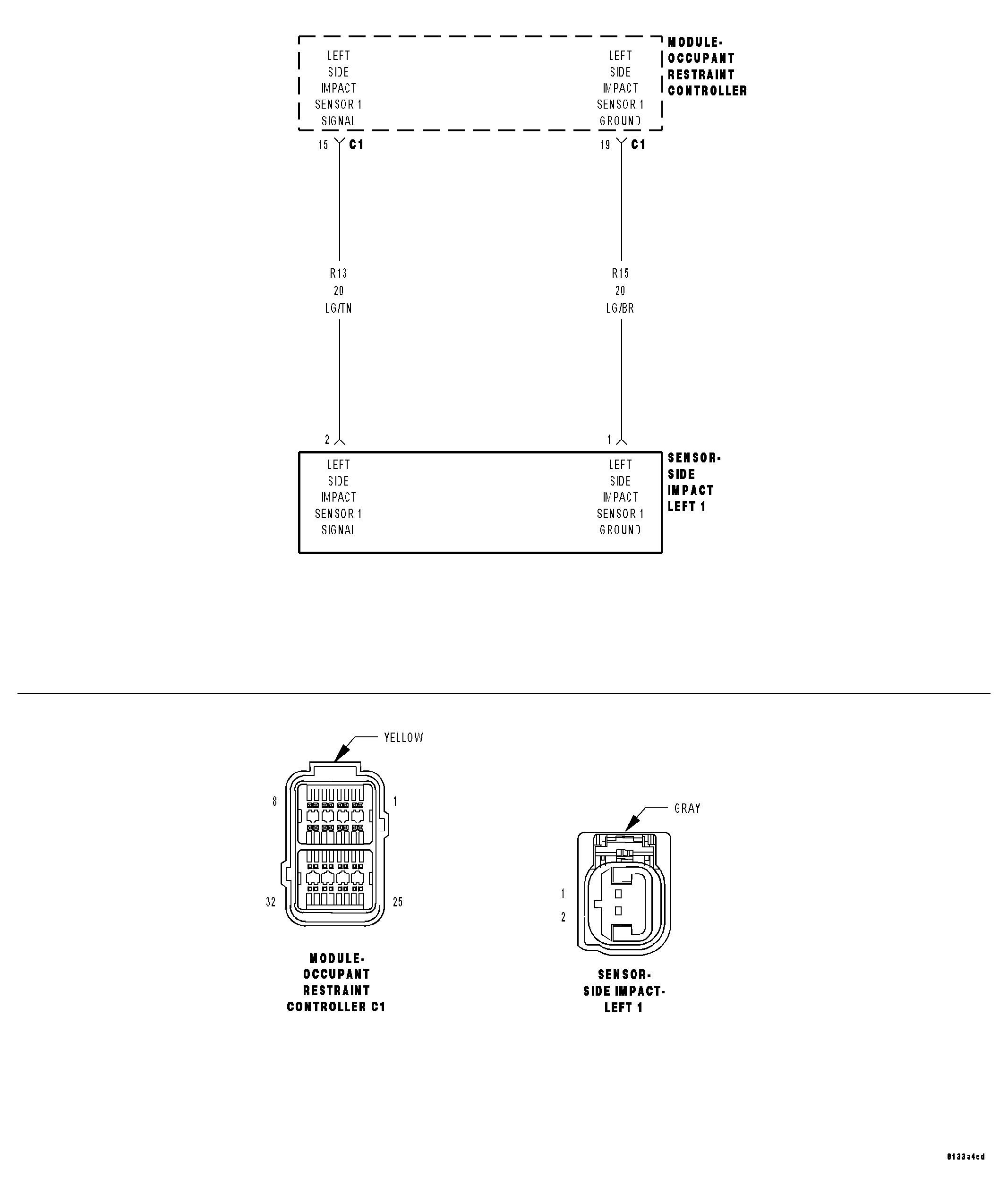

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Restraints >> Seat Belts >> DTCS B1B1A To B1B82 >> Diagnosis And Testing >> B1B72-Left Side Satellite Acceleration Sensor 1 Internal >> Circuit Schematic
