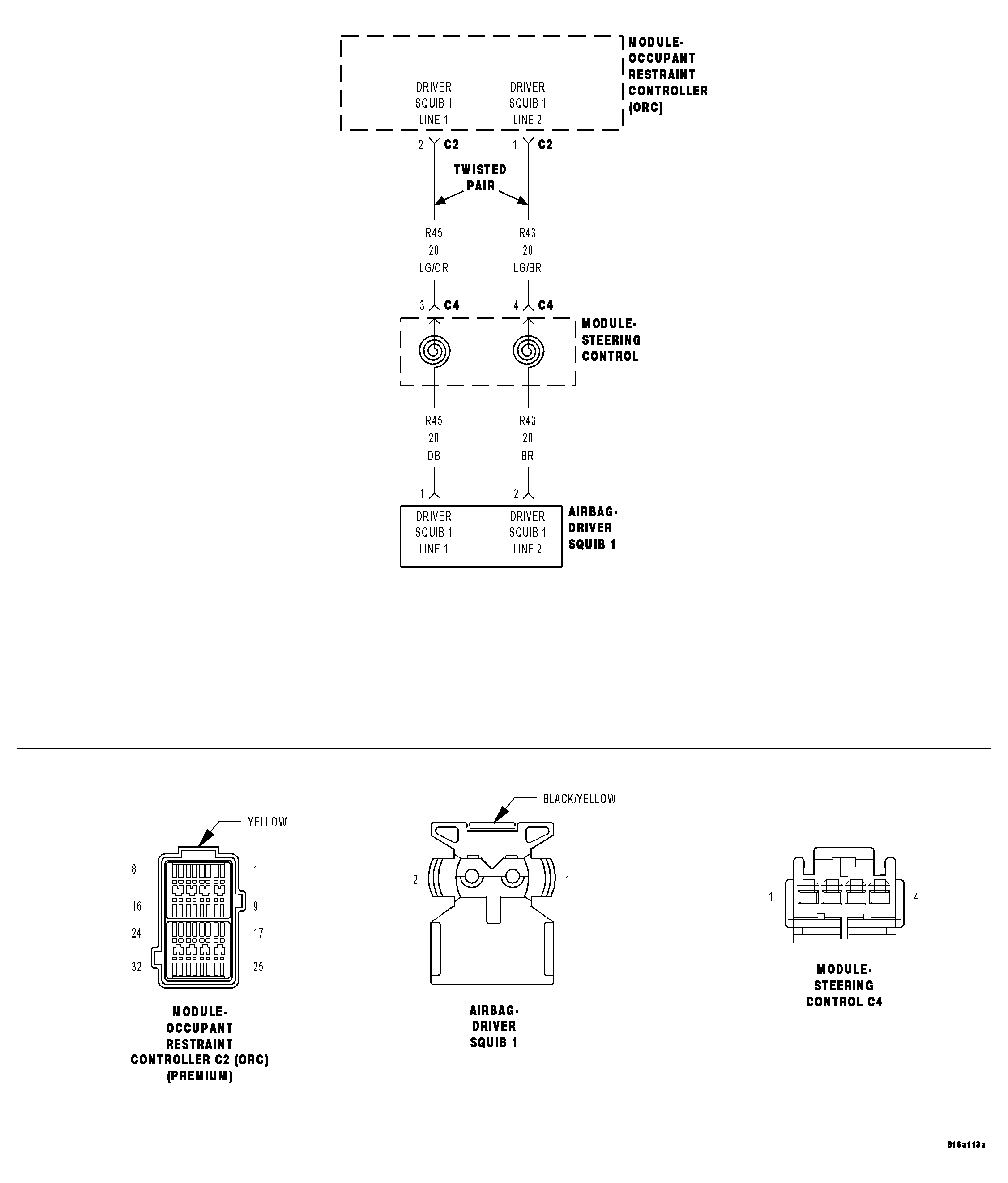

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Restraints >> Seat Belts >> DTCS B1203 To B1B19 & Diagnostic Code Index >> Diagnosis And Testing >> B1B02-Driver Airbag Squib 1 Circuit Open >> Circuit Schematic
