Tube-Condensation Drain: Installation

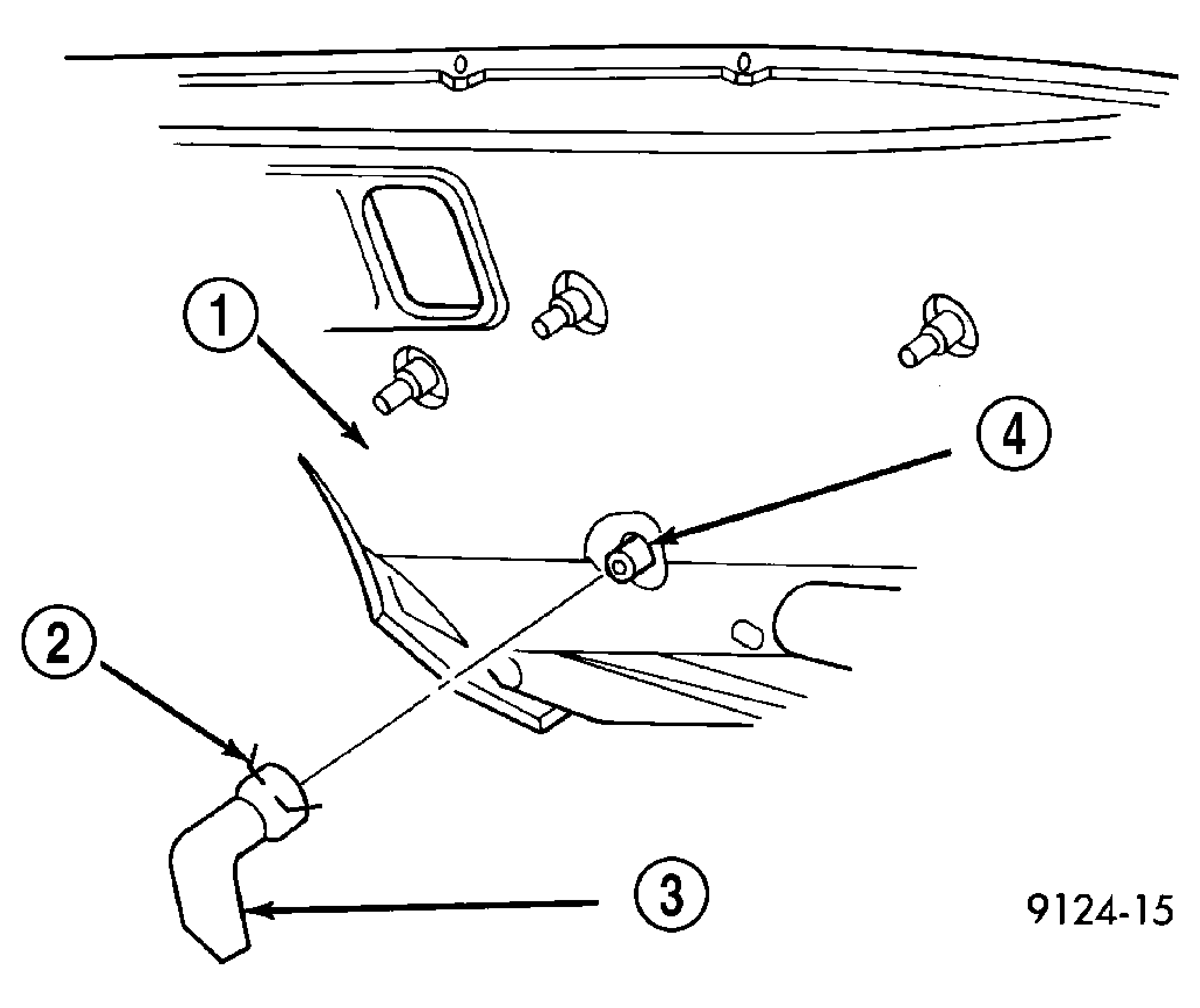

Fig 1: Condensation Water Drain Tube - Typical
GC0020940Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the condensate drain tube (3) onto the HVAC housing drain (4) located on the passenger side of the dash panel (1) in the engine compartment.
  2. Engage the retaining clamp (2) that secures the condensate drain tube onto the HVAC housing drain.
  3. Lower the vehicle.
