Right Rear Floor Duct

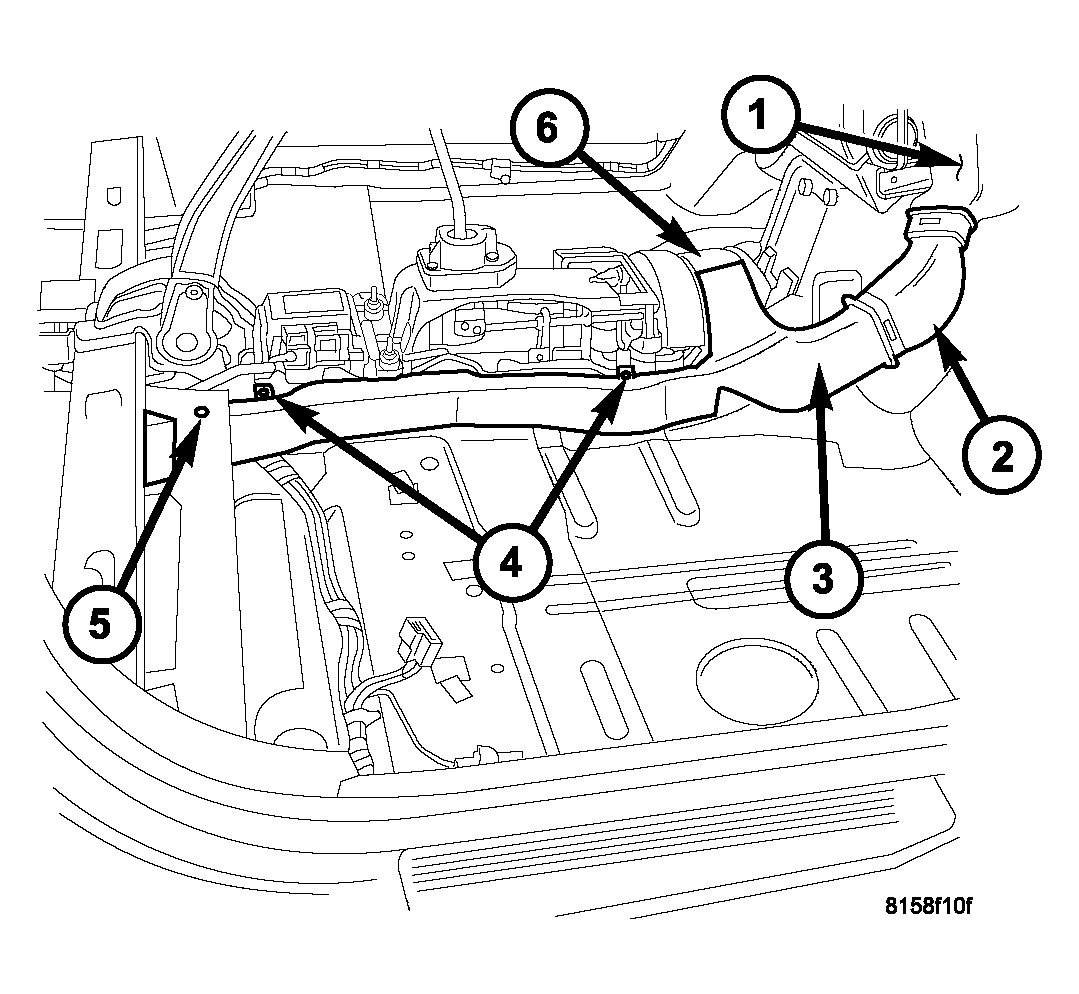

Fig 1: Right Rear Floor Duct
GC0043303Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Illustration shown with front floor carpet removed for clarity.
  1. Remove the center floor console (Refer to BODY/INTERIOR/CONSOLE-CENTER - REMOVAL).
  2. Remove the two screws (4) that secure the right rear floor duct (3) to the floor panel.
  3. Remove the push-pin retainer (5) that secures the rear floor carpet to the right rear floor duct.
  4. Disengage the right rear floor duct from the left rear floor duct (7) and the right rear intermediate floor duct (2).
  5. Pull the right rear floor duct out from the opening in the rear carpet and remove the duct from the vehicle.
  6. If required, disengage the right rear intermediate floor duct from the right floor distribution duct (1) and remove the intermediate duct from the vehicle.
