Right Floor Distribution Duct

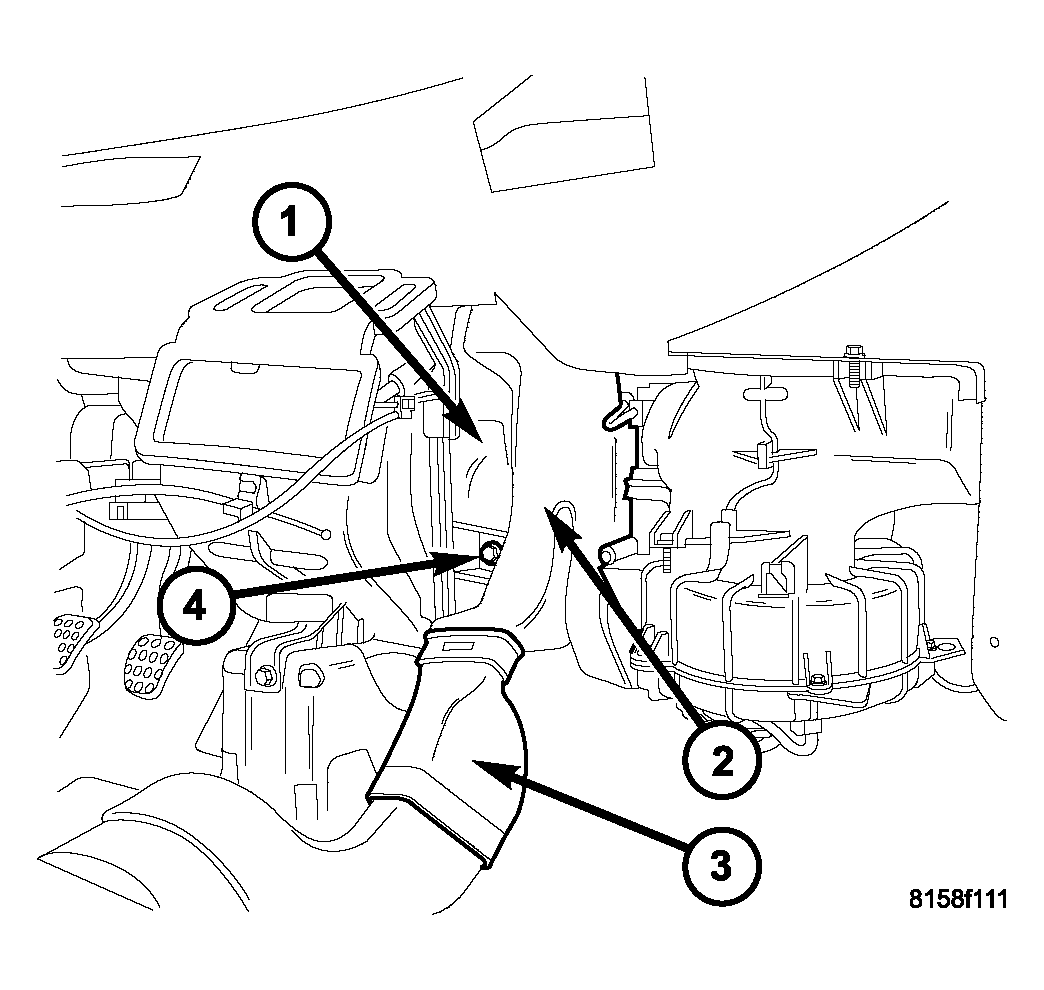

Fig 1: Right Floor Distribution Duct
GC0043305Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Illustration shown with front floor carpet removed for clarity.
  1. Remove the instrument panel (Refer to BODY/INSTRUMENT PANEL/ASSEMBLY-INSTRUMENT PANEL - REMOVAL) .
  2. Remove the screw (4) that secures the right floor distribution duct (2) to the right side of the HVAC housing (1).
  3. Disconnect the right floor distribution duct from the HVAC housing outlet and the right rear intermediate floor duct (3).
  4. Remove the right floor distribution duct from the vehicle.
