Left Floor Distribution Duct

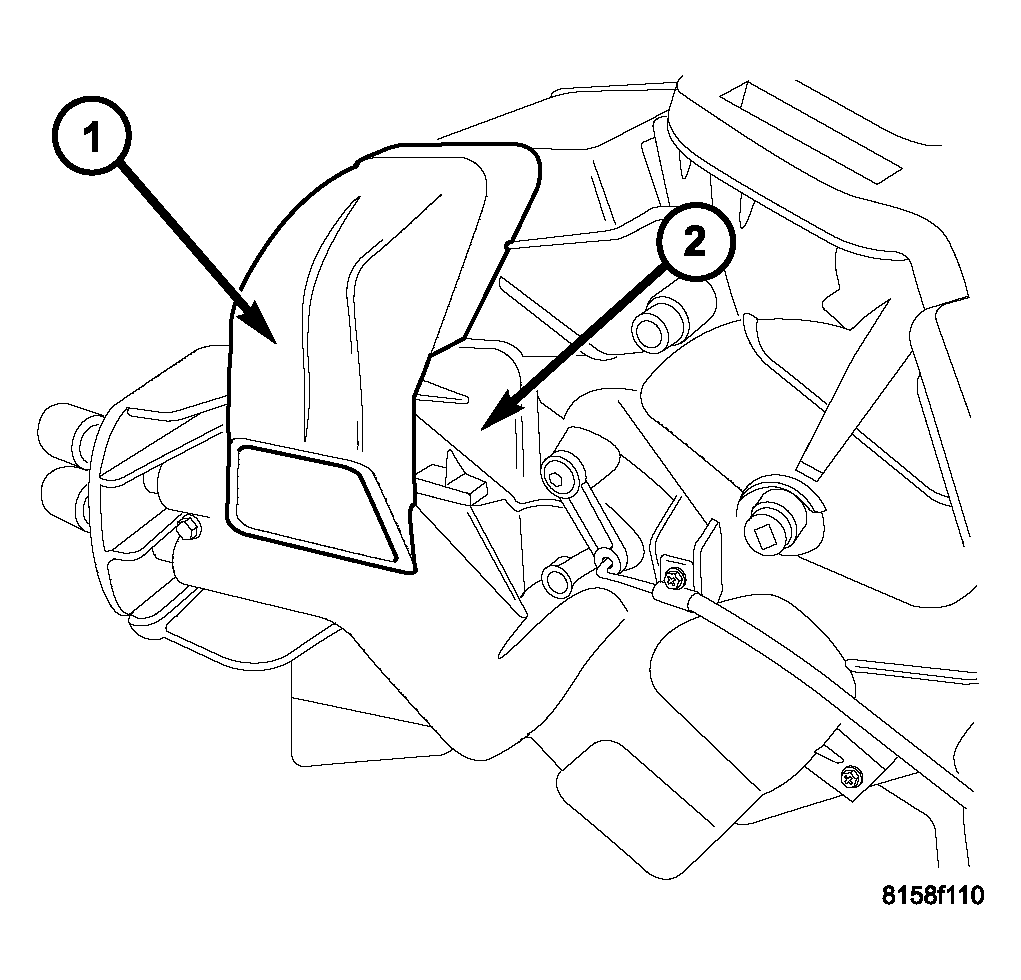

Fig 1: Left Floor Distribution Duct
GC0043304Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the steering column opening cover (Refer to BODY/INSTRUMENT PANEL/COVER-STEERING COLUMN OPENING - REMOVAL) .
  2. Disconnect the left floor distribution duct (1) from the HVAC housing (2) and remove the duct.
