Towing Requirements - Trailer Lights & Wiring
Whenever you pull a trailer, regardless of the trailer size, stop lights and turn signals on the trailer are required for motoring safety.
The Trailer Tow Package may include a 4 and 7 pin wiring harness. Use a factory approved trailer harness and connector.
NOTE:
Do not cut or splice wiring into the vehicles wiring harness.

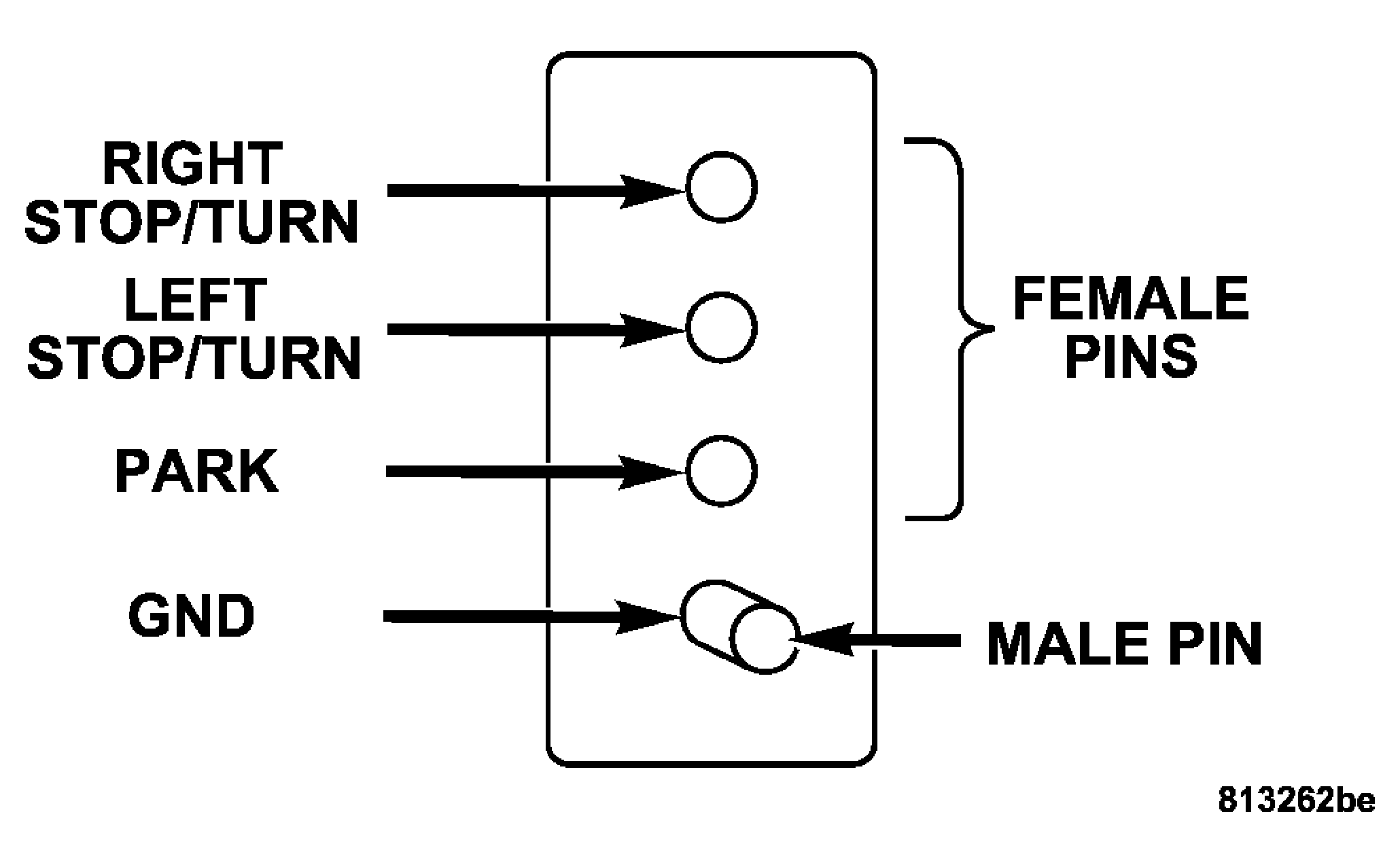

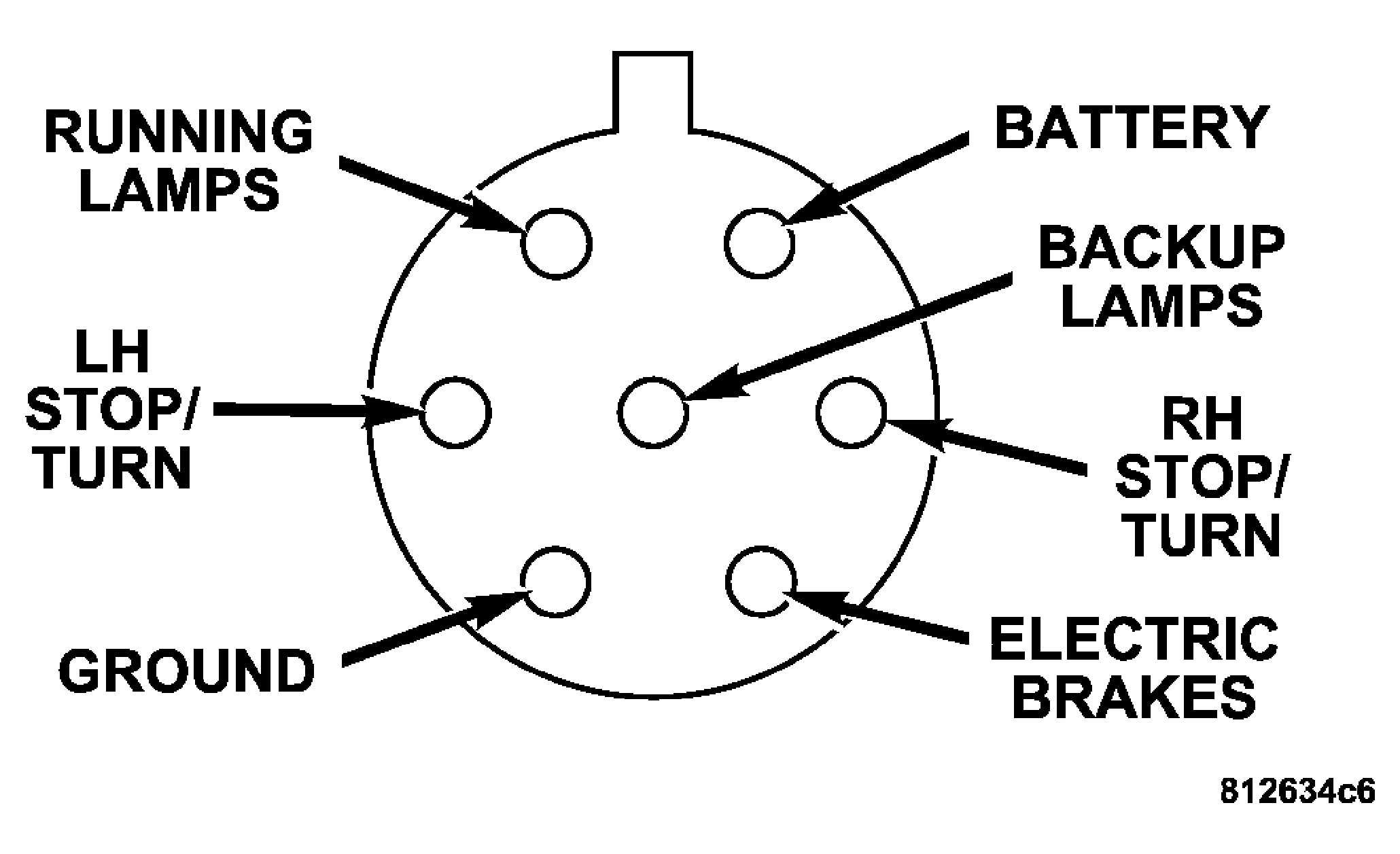

The electrical connections are all complete to the vehicle but you must mate the harness to a trailer connector. Refer to the following illustrations.
