Transaxle Housing: Disassembly

WARNING: This page is about a different variant/trim than selected.

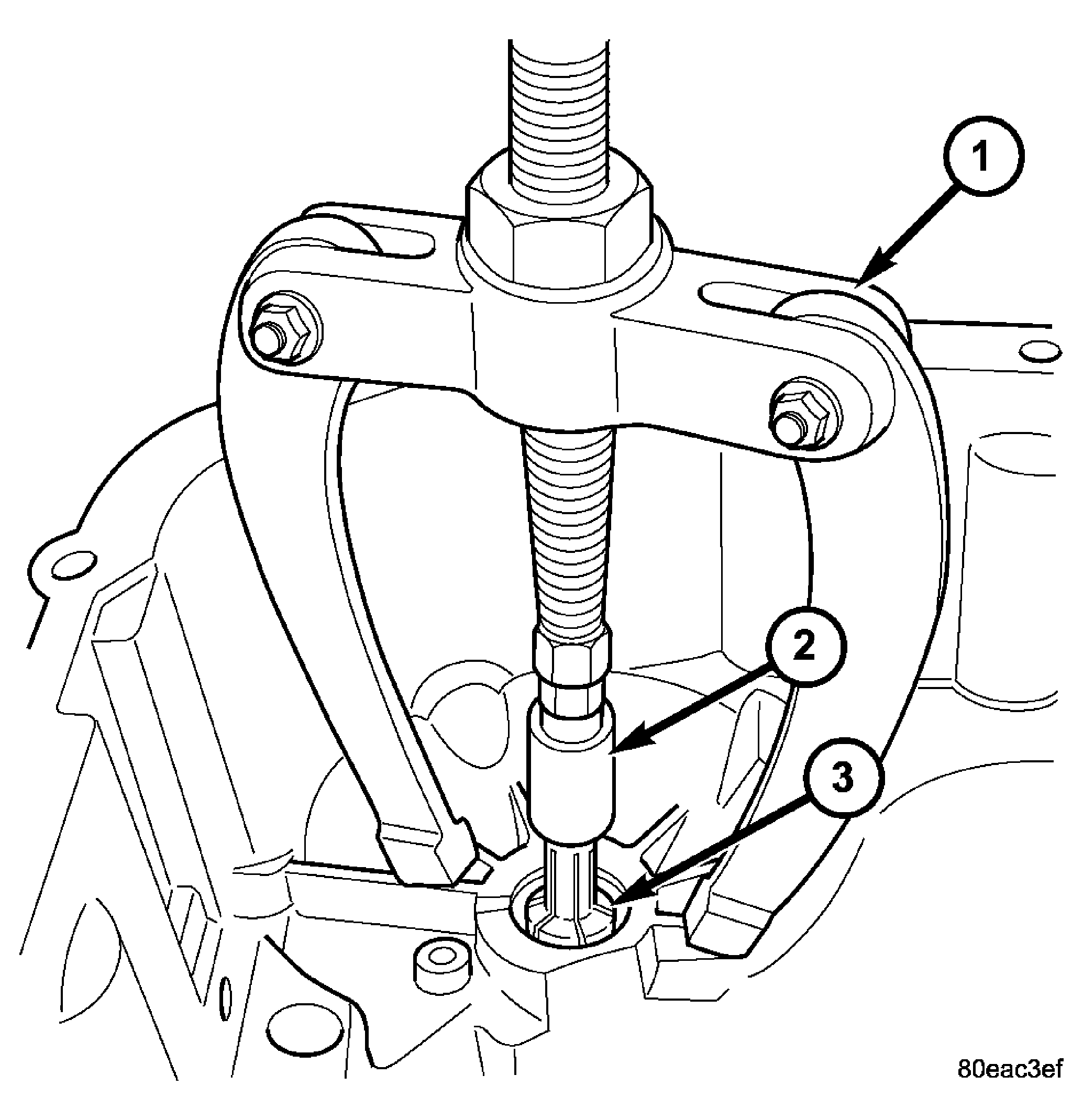

Fig 1: Reverse Shaft Needle Bearing Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 -BRACE TOOL8915

2 -REMOVER 8911

3 - BEARING

Remove reverse shaft needle bearing (3) using Brace Tool 8915 (1) and Remover 8911 (2). See Fig 1.

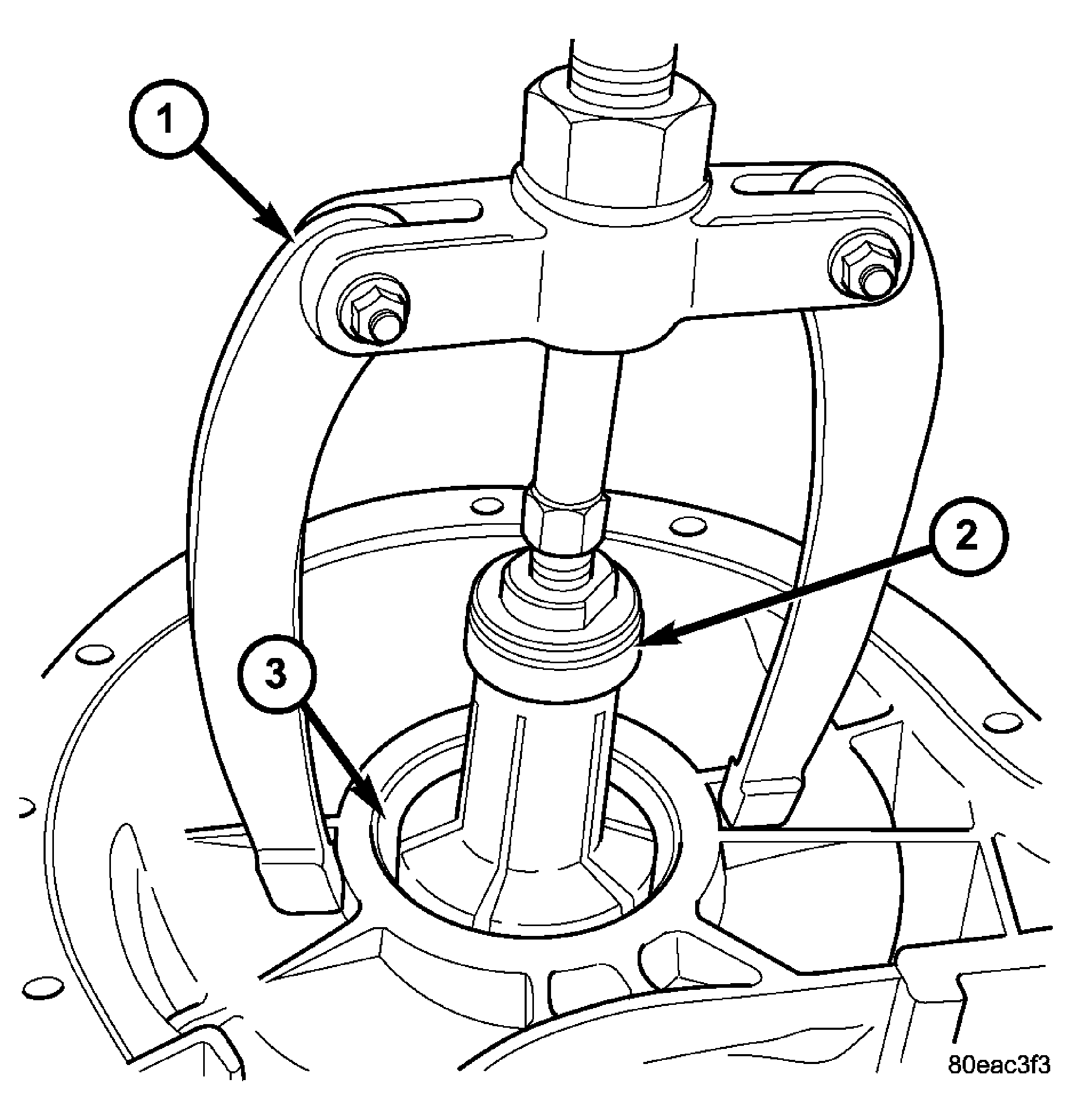

Fig 2: Differential Bearing Race Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - BRACE TOOL 8915

2 - REMOVER 8913

3 - BEARING RACE

Remove differential bearing race (3) using Brace Tool 8915 (1) Remover 8913 (2). See Fig 2.

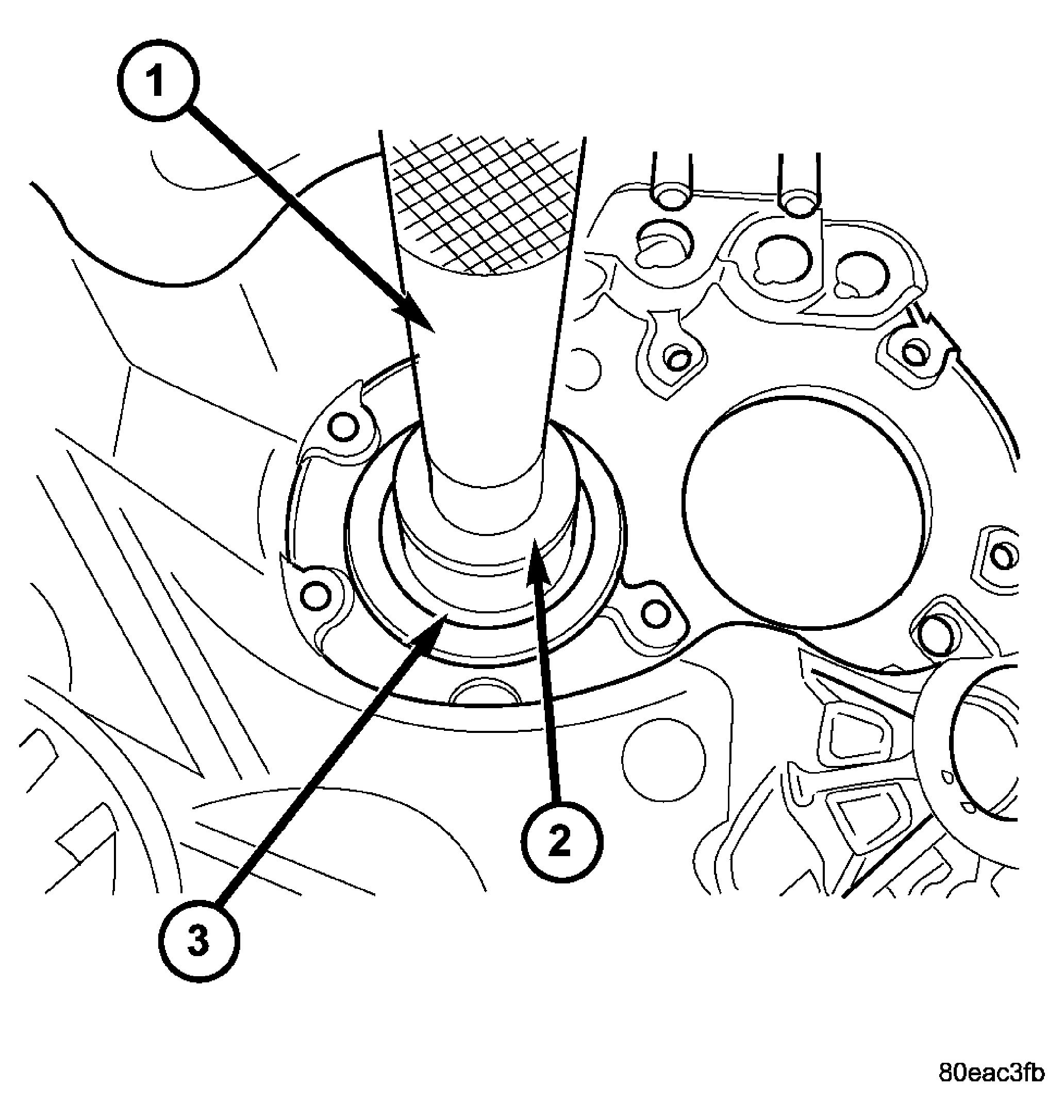

Fig 3: Input Shaft Bearing Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 -HANDLE C-4171

2 - REMOVER 6954

3 - INPUT SHAFT BEARING

Drive out input shaft sealed roller bearing (3) using Handle C-4171(1) and Remover 6954 (2). See Fig 3.

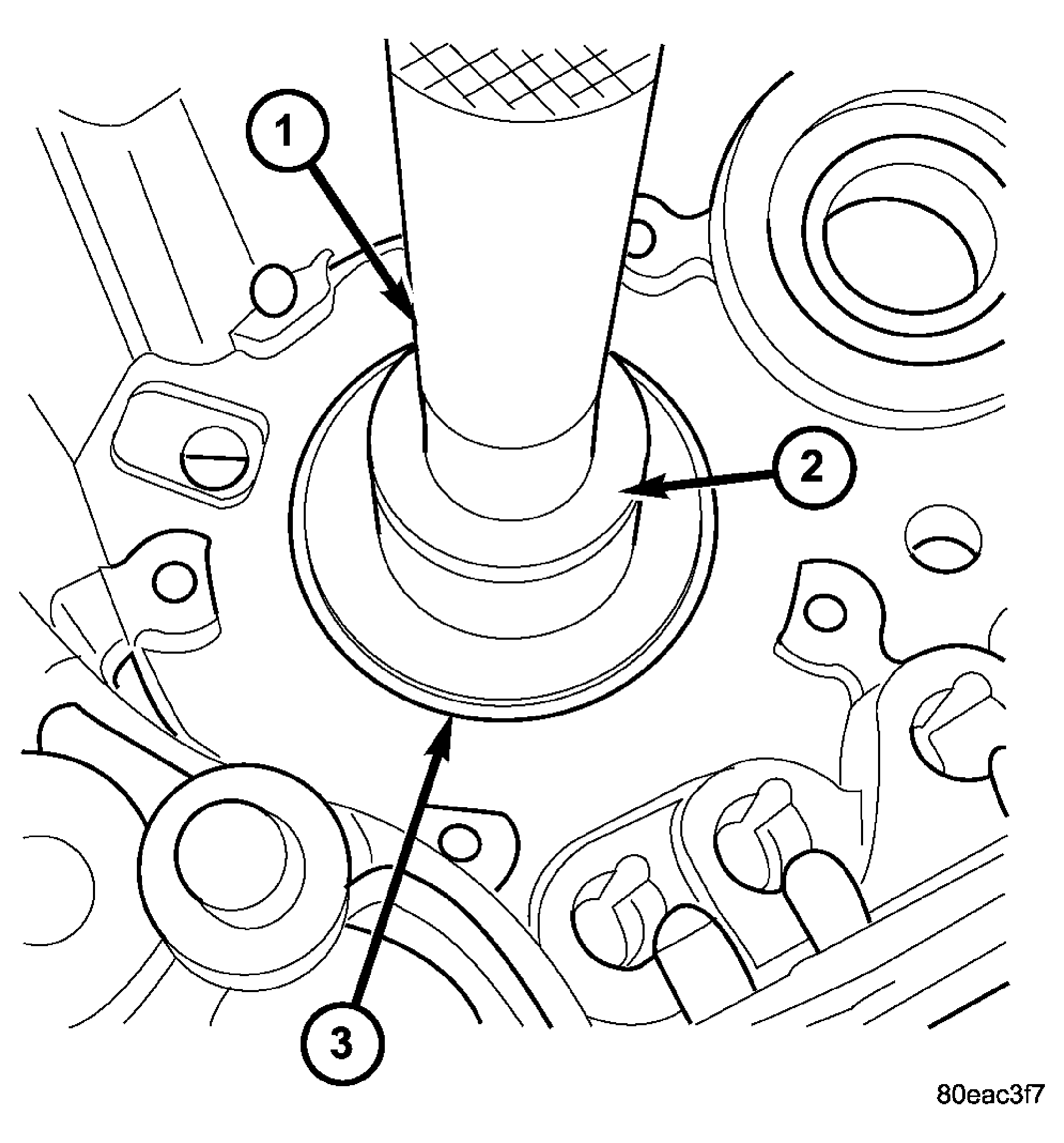

Fig 4: Intermediate Shaft Bearing Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - HANDLE C-4171

2 - REMOVER 6954

3 - INTERMEDIATE BEARING

Drive out intermediate shaft sealed roller bearing (3) using Handle C-4171 (1) Remover 6954 (2). See Fig 4.
