Transaxle Housing: Assembly

WARNING: This page is about a different variant/trim than selected.

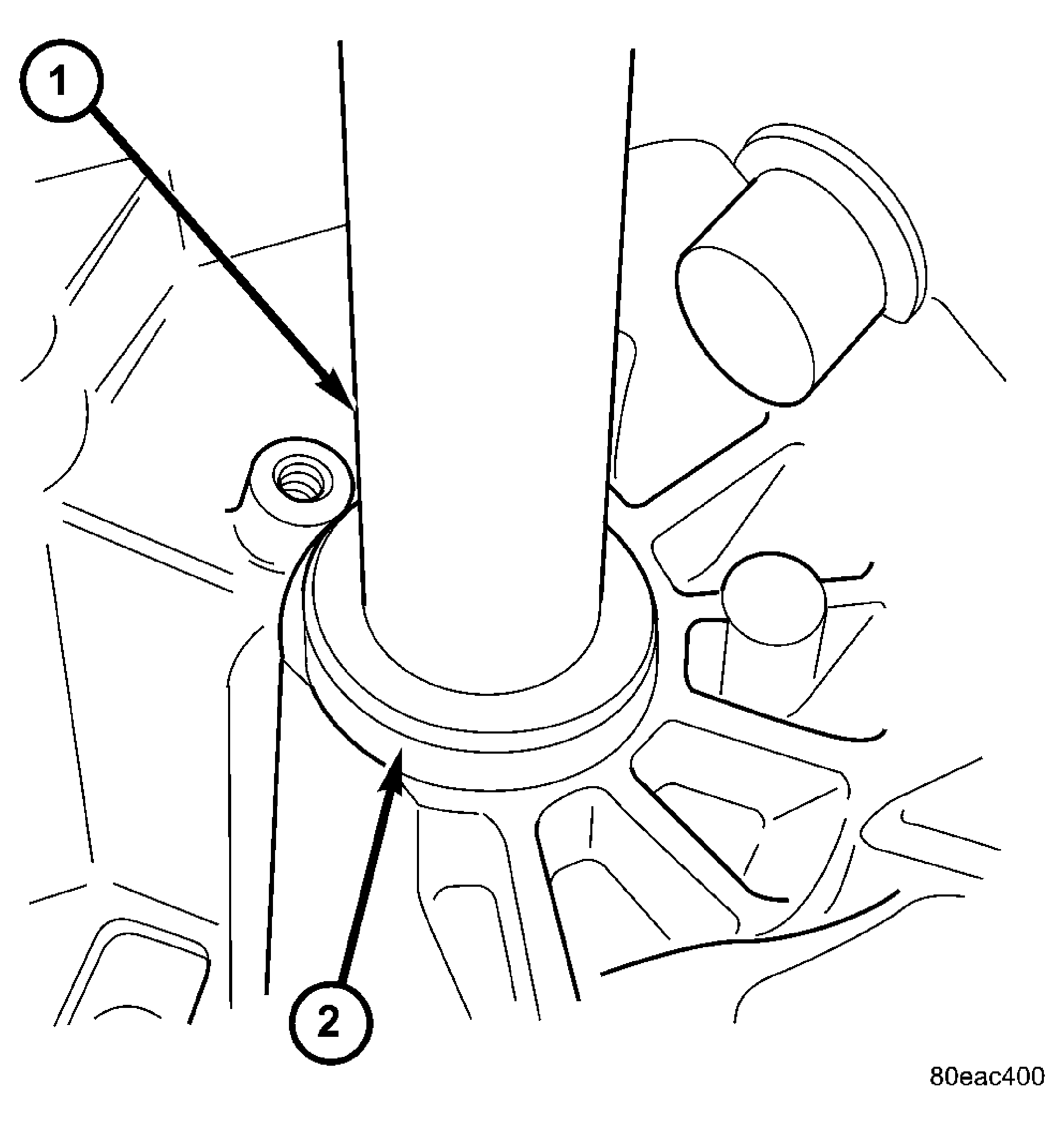

Fig 1: Reverse Shaft Needle Bearing Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - TOOL C-4171

2 - TOOL 8924

NOTE: Input and intermediate shaft sealed roller bearings do not get installed until transaxle assembly.

Using Tools C-4171 (1) and 8924 (2), install reverse shaft needle bearing. See Fig 1. Drive until tool bottoms on case.

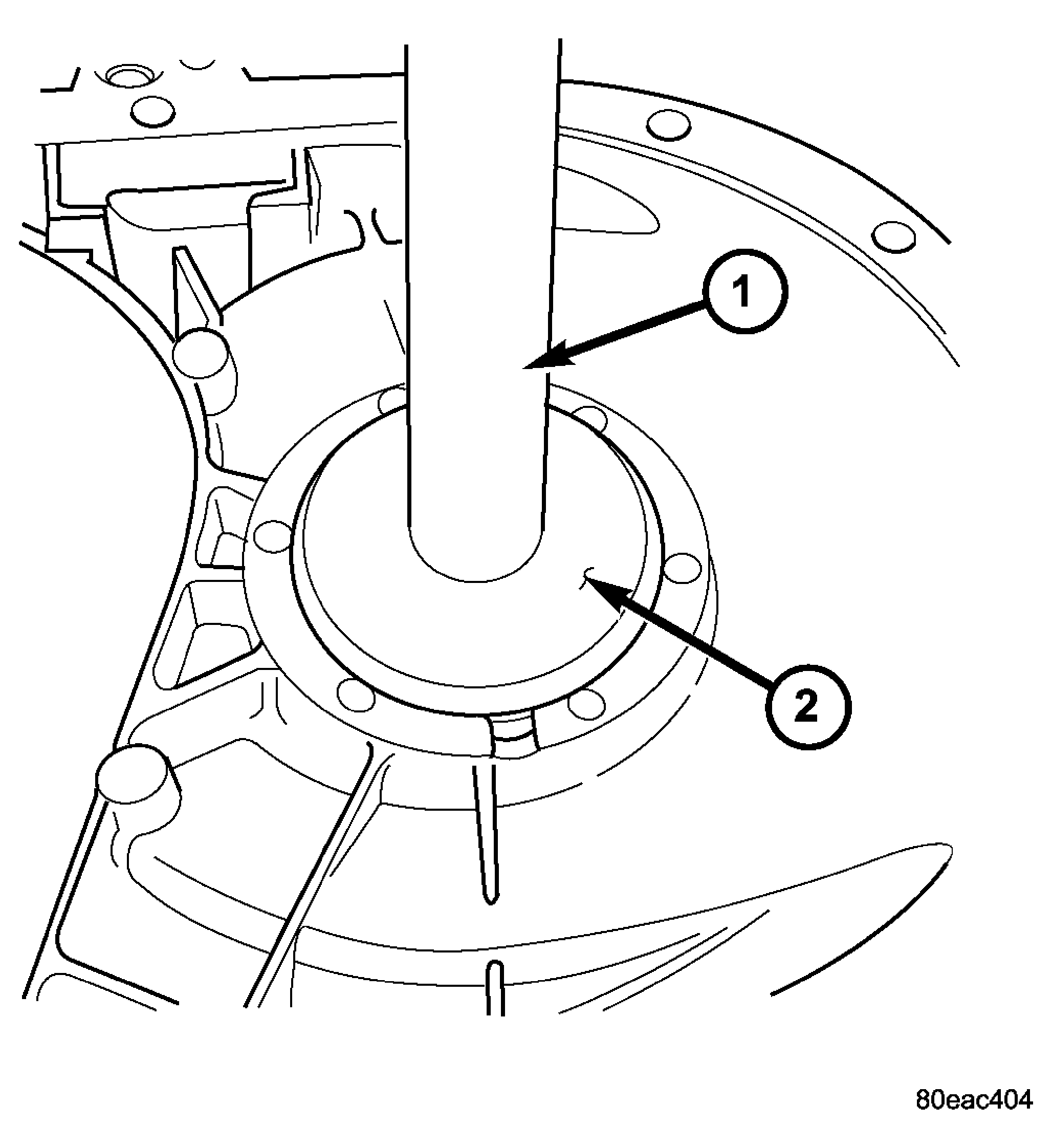

Fig 2: Differential Bearing Race Installation
Courtesy of DAIMLERCHRYSLER CORP.

1 - TOOL C-4171

2 - TOOL 8866
Using Tools C-4171 (1) and 8866 (2), install differential bearing race. Drive until race bottoms in case. See Fig 2.
