Reverse Shaft: Description

WARNING: This page is about a different variant/trim than selected.

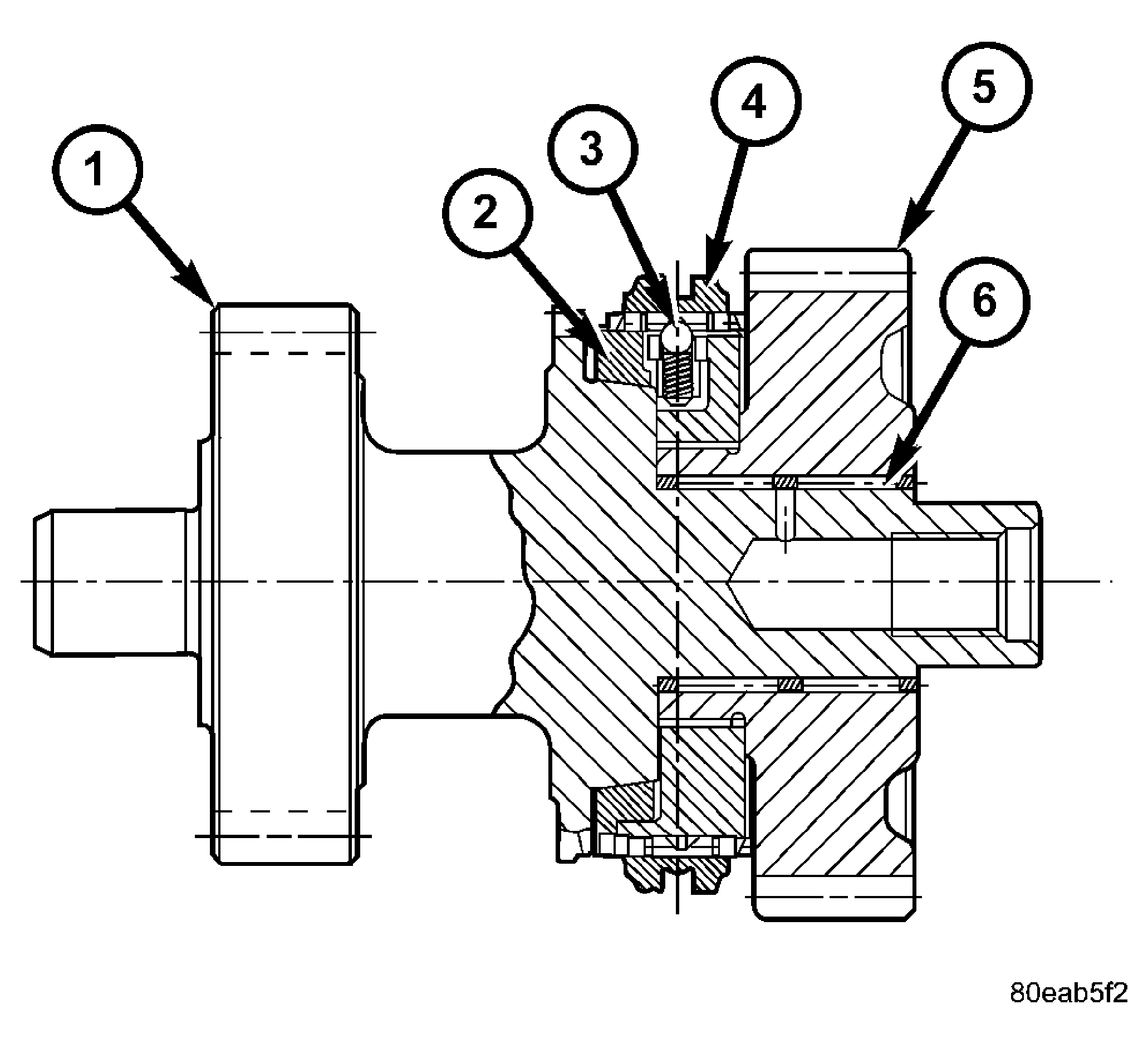

Fig 1: Cross Sectional View - Reverse Shaft

Courtesy of DAIMLERCHRYSLER CORP.

1 - SHAFT W/GEAR

2 - BLOCKER RING

3 - STRUT ASSEMBLY

4 - SLEEVE

5 - GEAR (REVERSE)

6 - NEEDLE BEARING

The reverse shaft assembly (1) consists of a fixed gear shaft, the reverse synchronizer, and a free gear wheel that rotates about two needle bearings. The assembly is supported on one end (clutch bellhousing) by a sealed roller bearing, and a needle bearing at the other end (geartrain housing). See Fig 1.
