Gear Shift Cable: Removal

WARNING: This page is about a different variant/trim than selected.

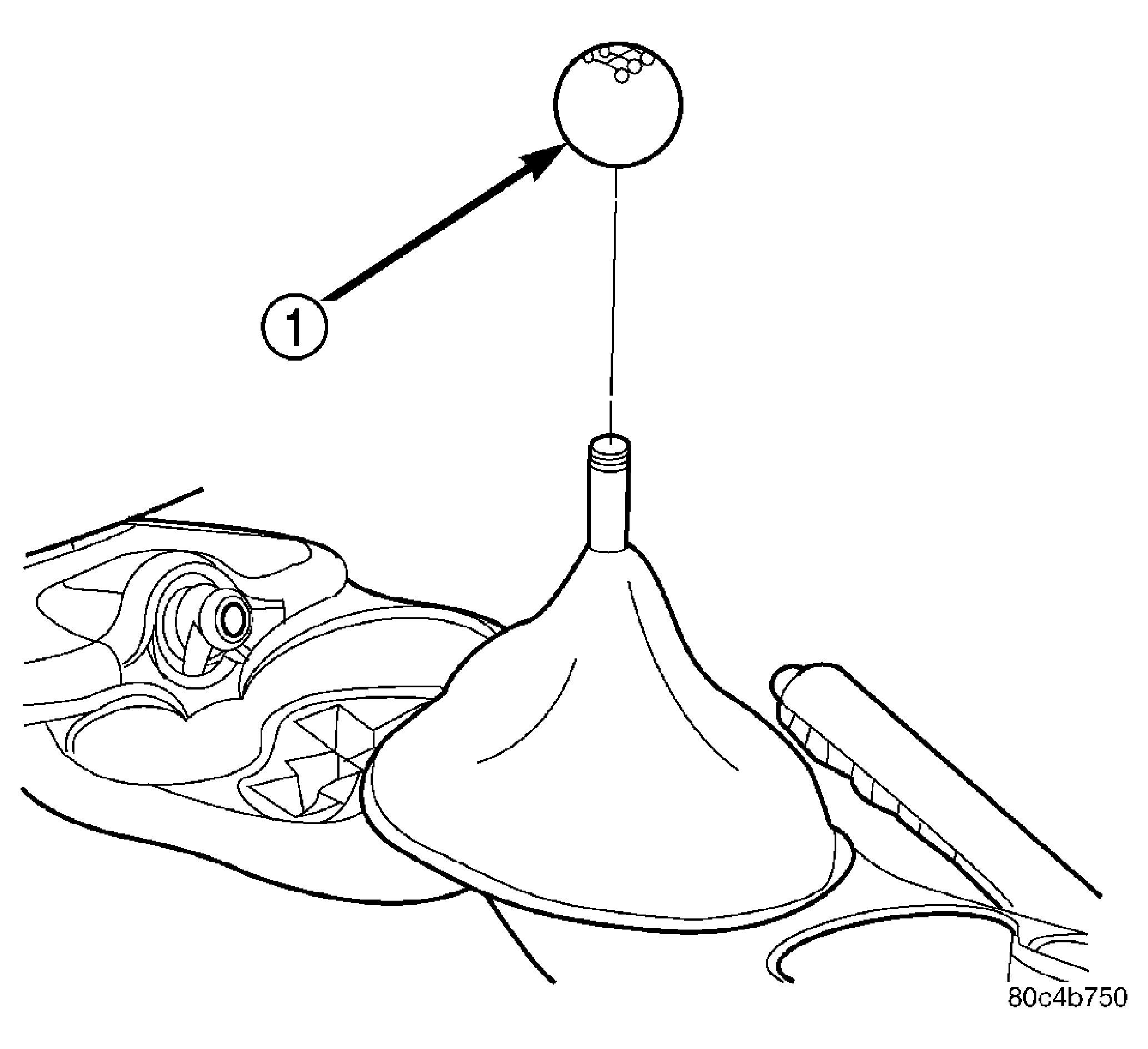

Fig 1: Gearshift Knob Removal/Installation
GC0022125Courtesy of DAIMLERCHRYSLER CORP.
1 - GEARSHIFT KNOB
  1. Pull up on gearshift knob (1) with moderate force to remove from gearshift mechanism. See Fig 1.

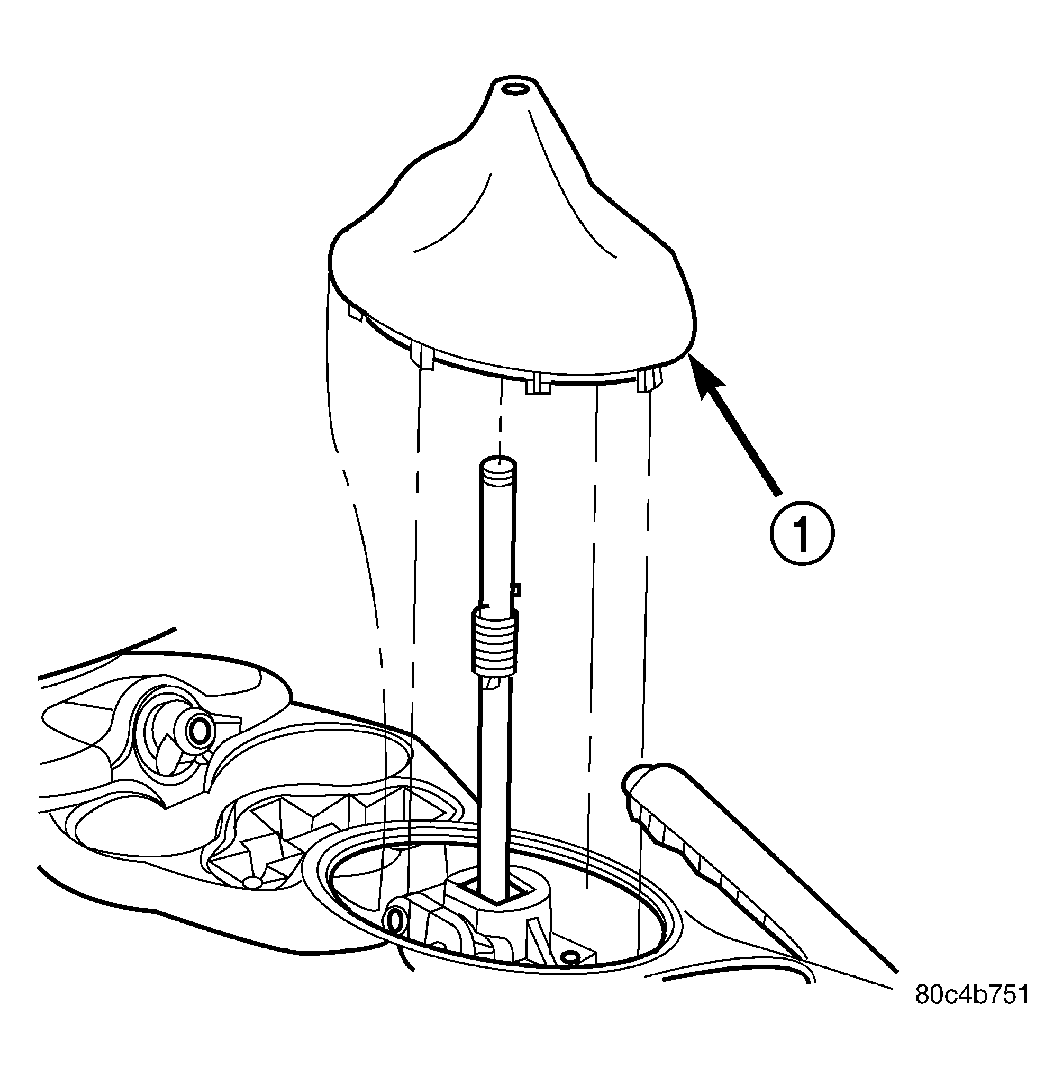

    Fig 2: Gearshift Boot
    GC0022126Courtesy of DAIMLERCHRYSLER CORP.
    1 - GEARSHIFT BOOT
  2. Remove shifter boot/bezel (1) assembly from console by lifting up at mounting ring area. See Fig 2.

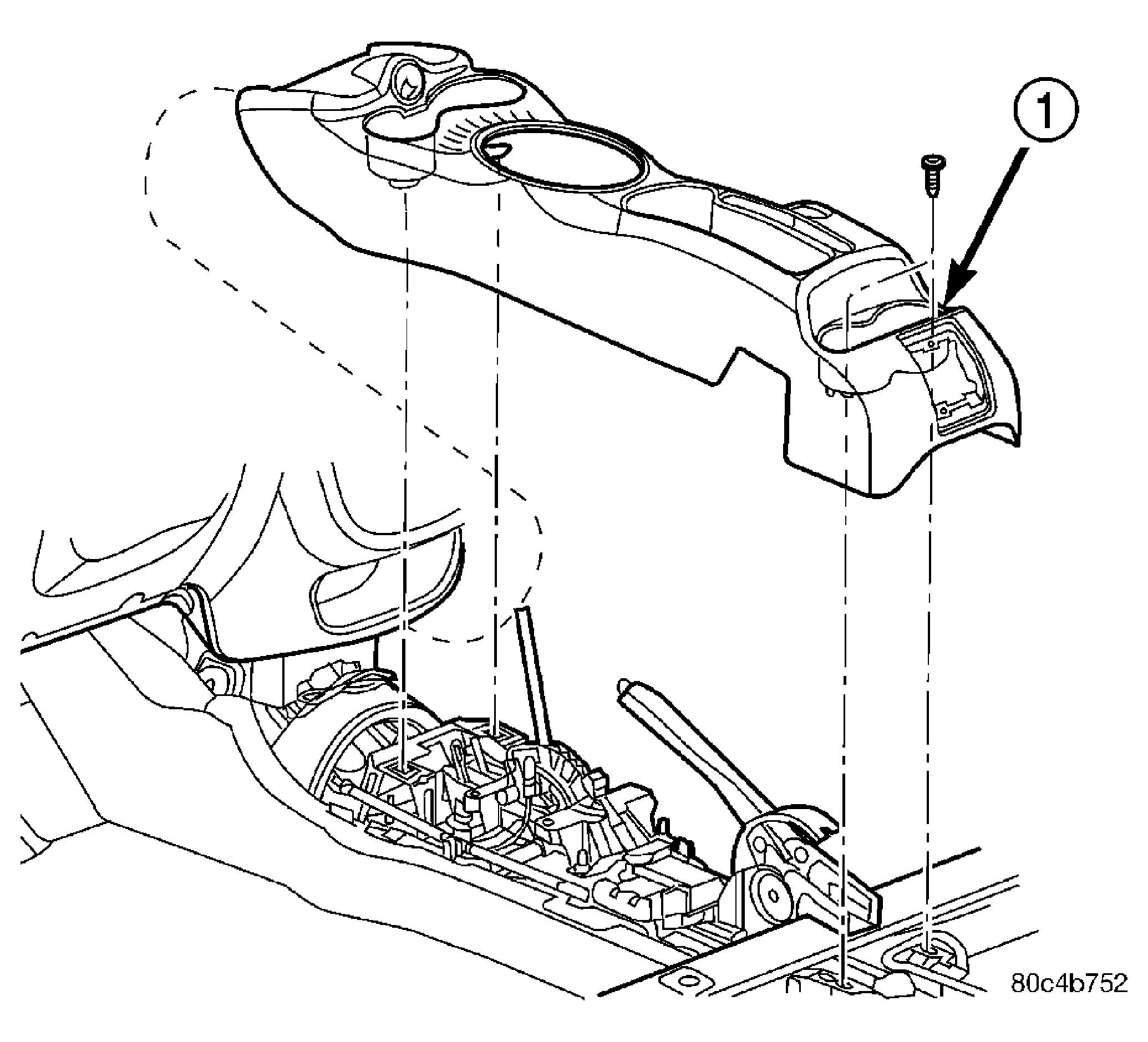

    Fig 3: Center Console Removal/Installation-Typical
    GC0022127Courtesy of DAIMLERCHRYSLER CORP.
    1 - CENTER CONSOLE
  3. Remove the center console (1) assembly if equipped. See Fig 3.

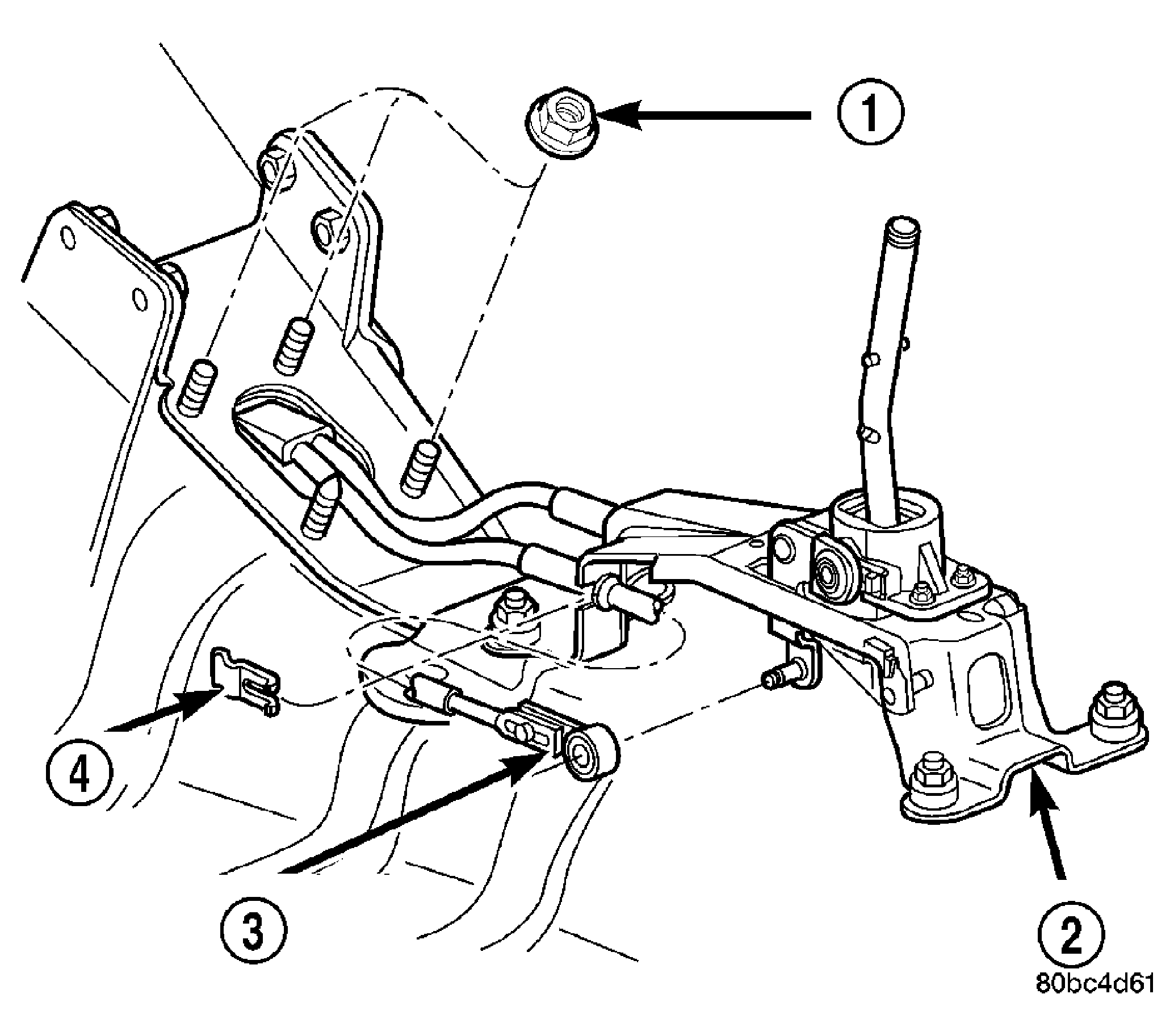

    Fig 4: Crossover Cable at Shifter Assembly
    GC0022128Courtesy of DAIMLERCHRYSLER CORP.
    1 - GROMMET PLATE NUT
    2 - SHIFTER
    3 - CROSSOVER CABLE
    4 - CLIP
  4. Remove crossover cable retaining clip (4) and disconnect from shift lever (3). See Fig 4.

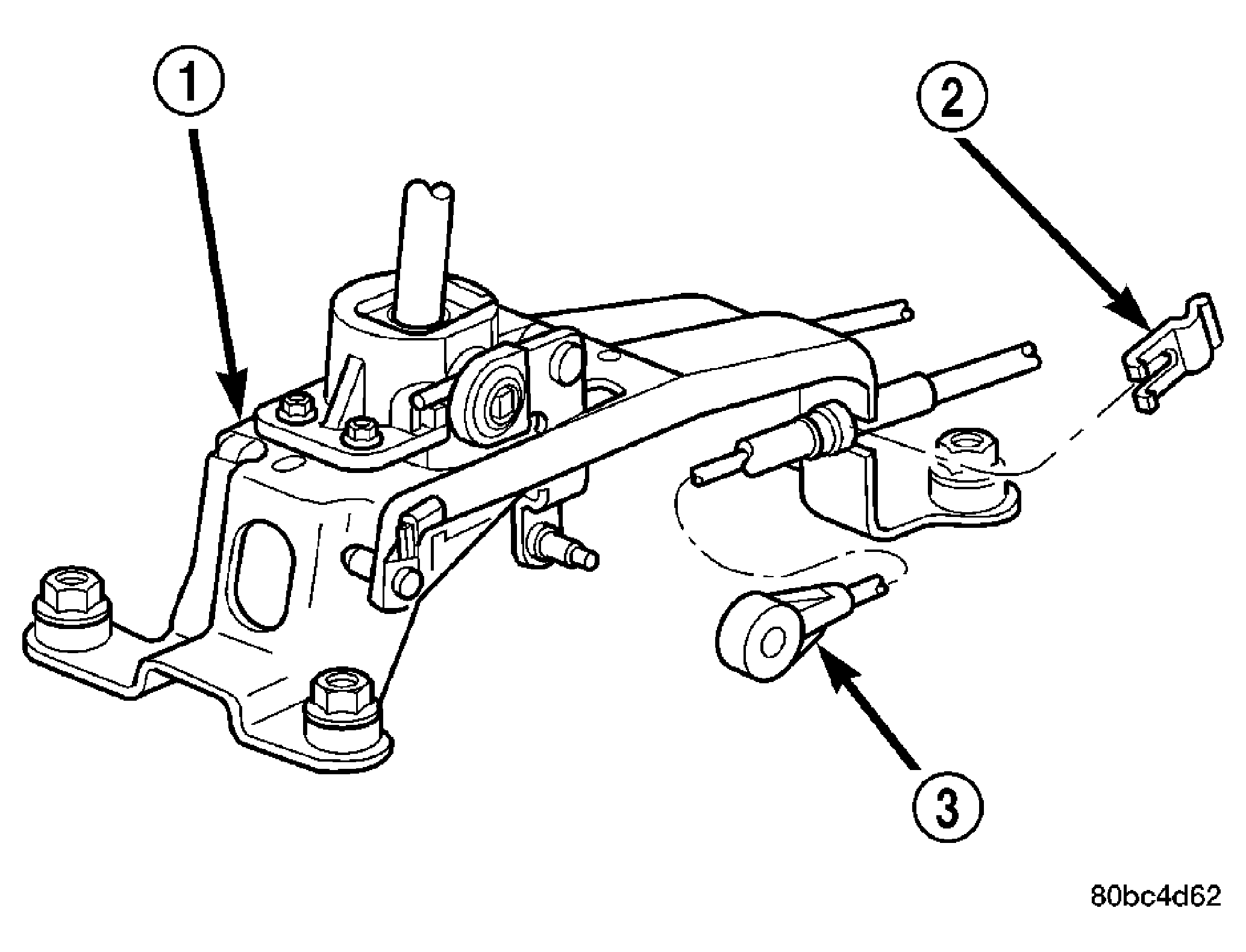

    Fig 5: Selector Cable at Shifter Assembly
    GC0022129Courtesy of DAIMLERCHRYSLER CORP.
    1 - SHIFTER
    2 - CLIP
    3 - SELECTOR CABLE
  5. Remove selector cable retaining clip (2) and disconnect from shift lever (3). See Fig 5.

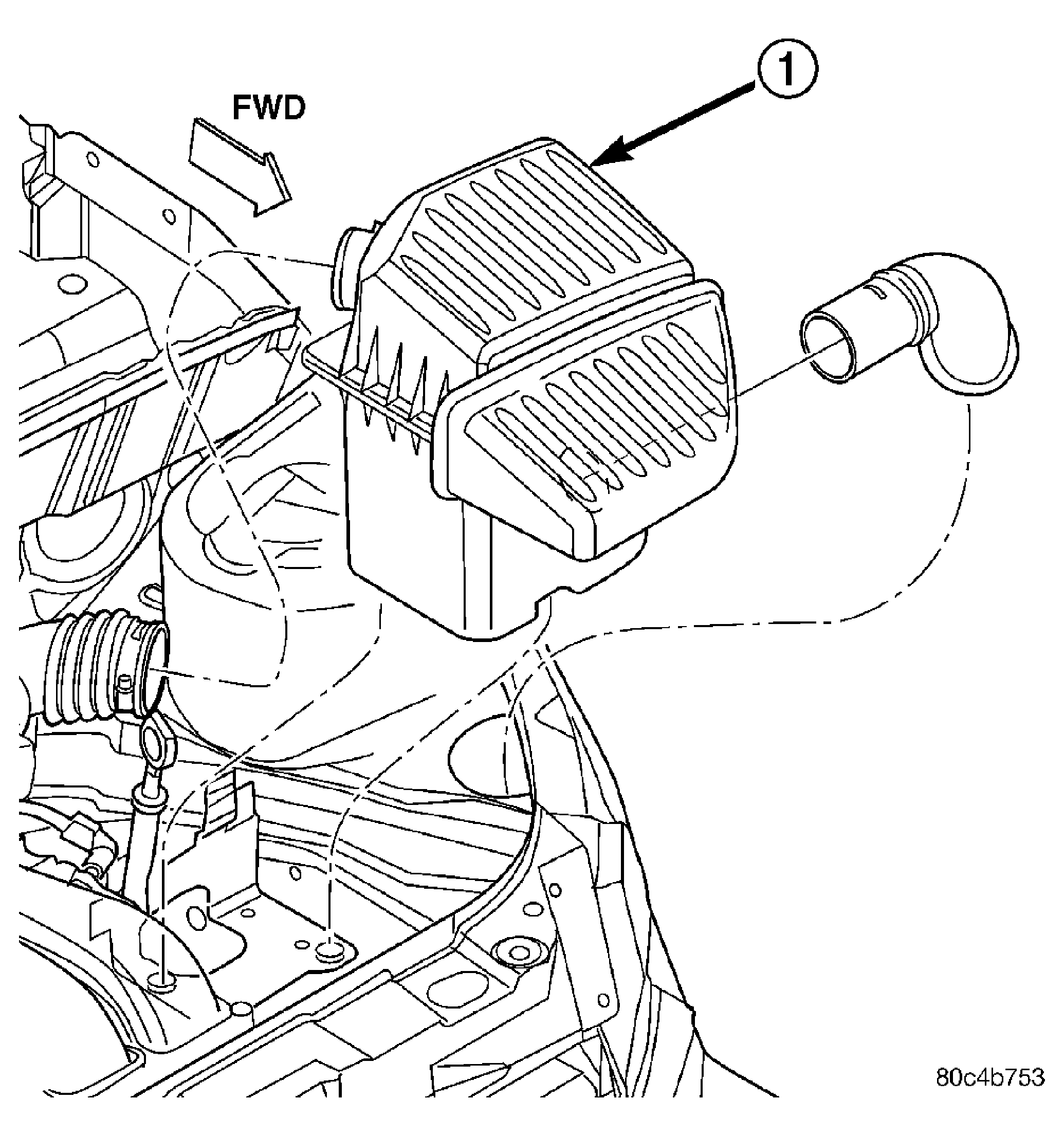

    Fig 6: Air Cleaner Assembly Removal/Installation
    GC0022130Courtesy of DAIMLERCHRYSLER CORP.
    1 - AIR CLEANER ASSEMBLY
  6. Remove air cleaner assy (1). See Fig 6.
  7. Remove battery hold-down clamp and battery. See Fig 7.

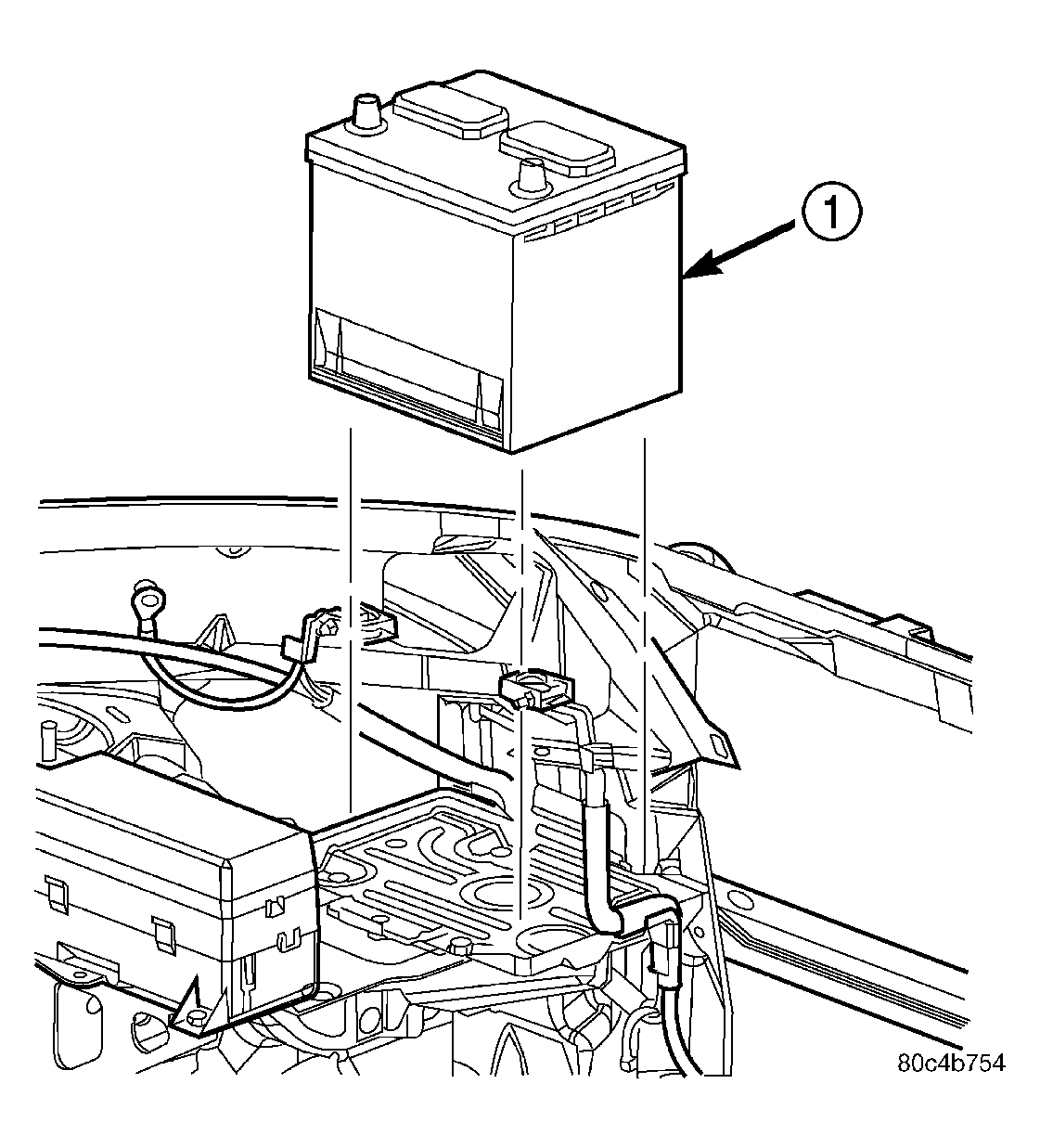

    Fig 7: Battery Removal/Installation
    GC0022131Courtesy of DAIMLERCHRYSLER CORP.
    1 - BATTERY
  8. Disconnect battery cables and remove the battery (1).

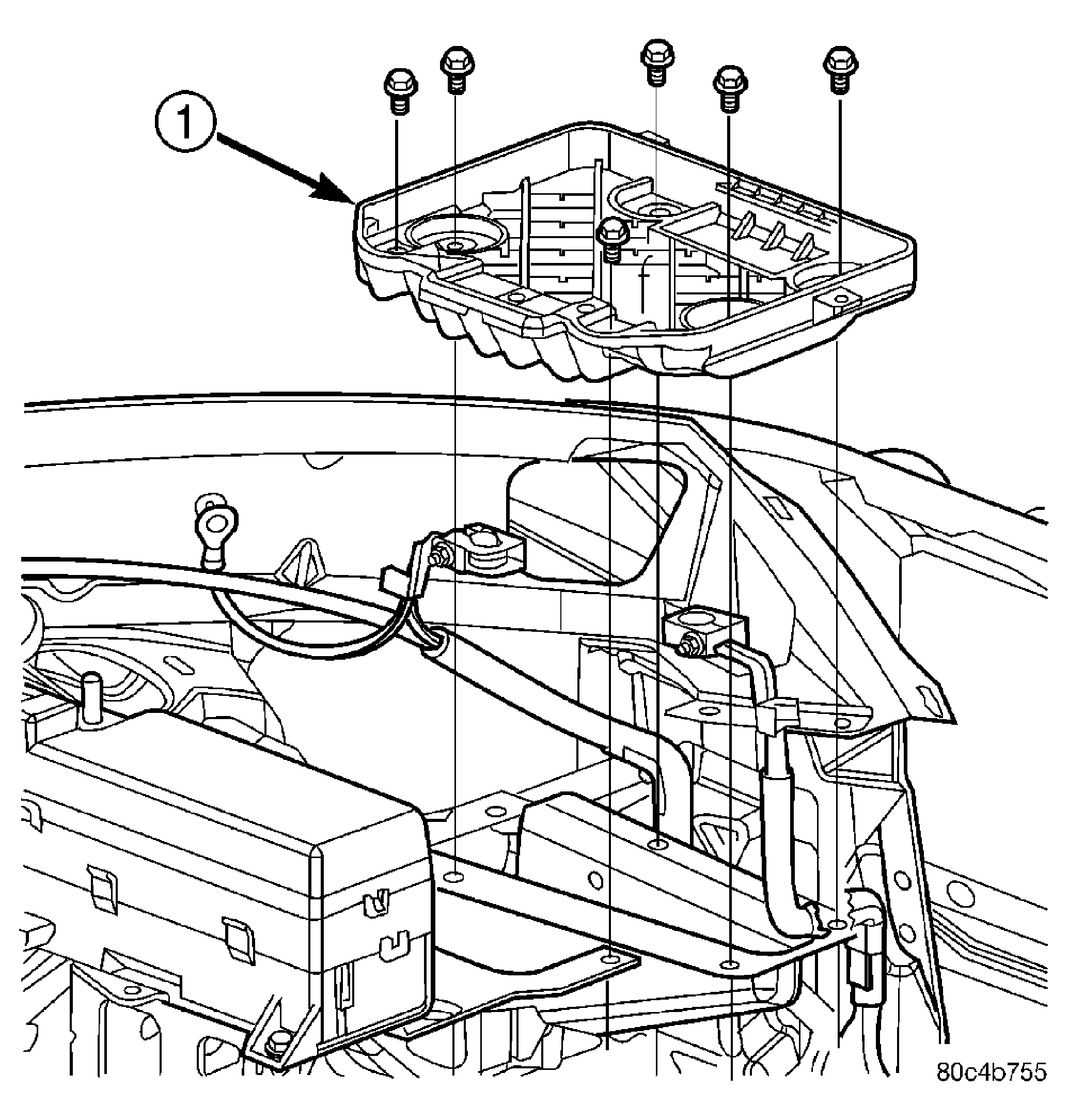

    Fig 8: Battery Tray Removal/Installation
    GC0022132Courtesy of DAIMLERCHRYSLER CORP.
    1 - BATTERY TRAY
  9. Remove battery tray (1). See Fig 8.

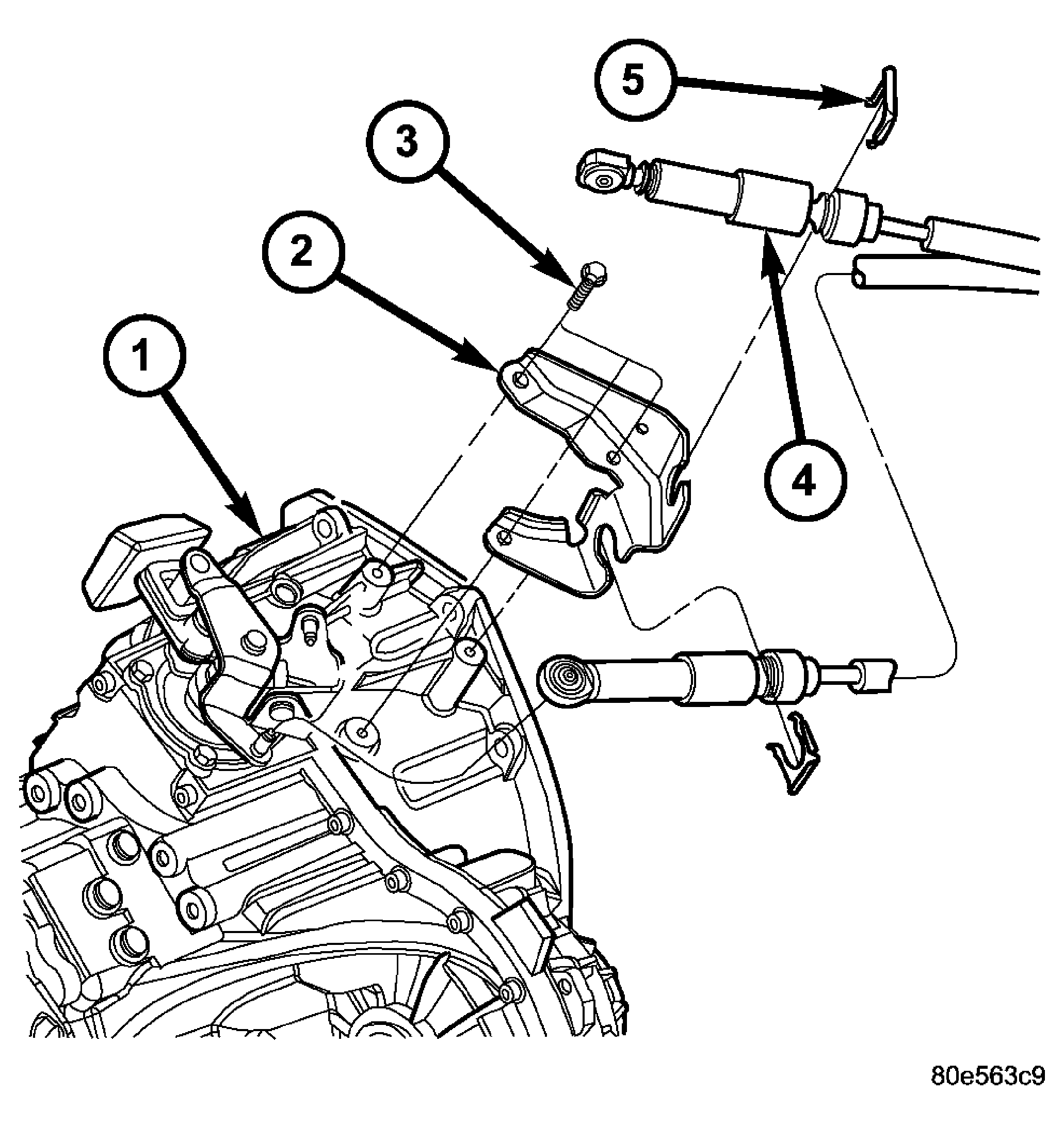

    Fig 9: Gear Shift Cables and Bracket at Transaxle
    GC0022005Courtesy of DAIMLERCHRYSLER CORP.
    1 - TRANSAXLE
    2 - GEAR SHIFT CABLE BRACKET
    3 - BOLT (3)
    4 - CABLE ASSEMBLY
    5 -CLIPS (2)
  10. Remove cable retaining clips (5) and remove cables (4) from bracket (2). See Fig 9.
  11. Disconnect cables (4) from the shift levers at the transaxle (1). See Fig 9.
    CAUTION: Pry up with equal force on both sides of shifter cable isolator bushings to avoid damaging cable isolator bushings.

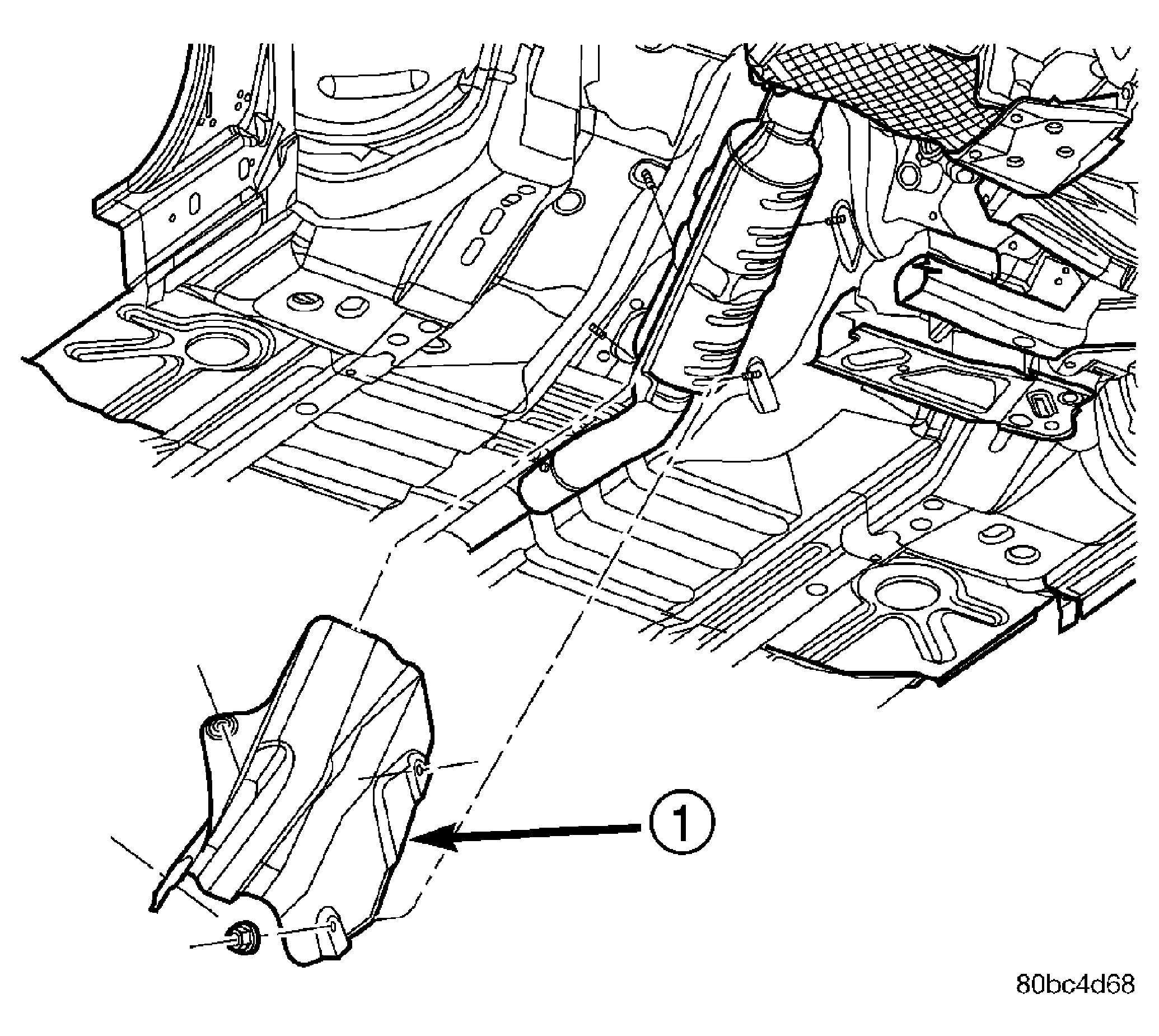

    Fig 10: Converter Heat Shield Removal/Installation
    GC0022134Courtesy of DAIMLERCHRYSLER CORP.
    1 - CONVERTER HEAT SHIELD

    Remove converter heat shield. See Fig 10.

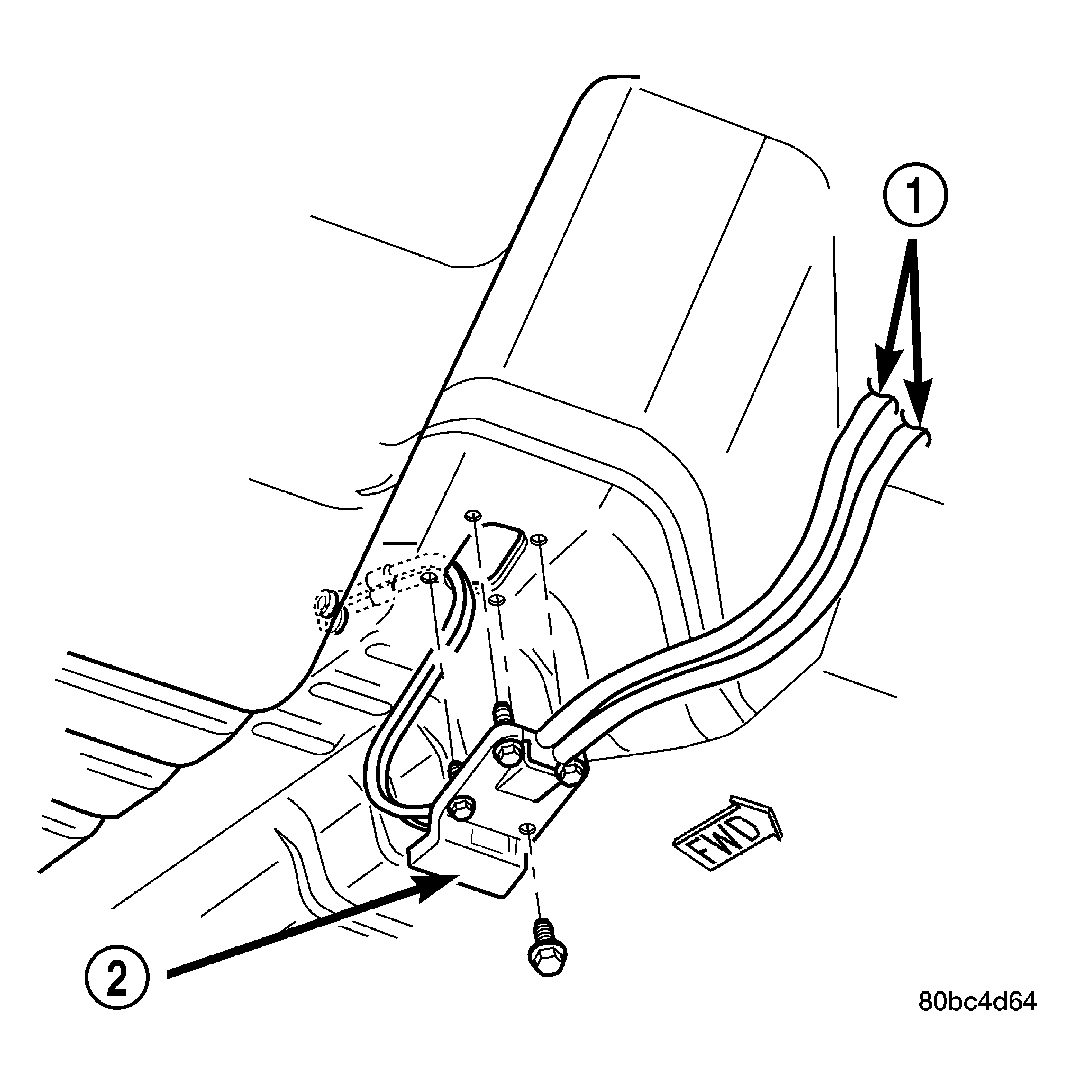

    Fig 11: Shift Cable Assembly at Floor Pan
    GC0022135Courtesy of DAIMLERCHRYSLER CORP.
    1 - CABLE ASSEMBLY
    2 - GROMMET PLATE
  12. Raise vehicle on hoist.
  13. Remove remaining grommet plate-to-floor pan screw (2). See Fig 11.
  14. Remove cable assembly (1) from vehicle.
