G288 Manual Transaxle: Disassembly
WARNING: This page is about a different variant/trim than selected.
| 1 - PULLER/SLIDE HAMMER C-3752 |
| 2 - REMOVER 8870 |
| 3 - DETENT PLUG |
- Using Puller/Slide Hammer C-3752 Remover 8870, (1, 2) remove four (4) shift rod detent plugs (3). See Fig 1.
1 - CONCENTRIC SLAVE CYLINDER - Remove clutch slave cylinder (1). See Fig 2.
1 - PLUG 2 - SPRING 3 - PIN - Remove reverse gear lock-out plug (1), spring (2), and pin (3). See Fig 3. Use magnet to remove pin from transaxle.
1 - DETENT ASSEMBLY - Remove shift shaft detent assembly (1). See Fig 4.
1 - BACKUP LAMP SWITCH - Remove backup lamp switch (1). See Fig 5.
1 - BOLT (4) - Remove shift shaft assembly by gently prying between mechanism and case using a suitable screwdriver.
1 - END COVER 2 - BOLT (9) - Remove end cover-to-case bolts (2). See Fig 7.

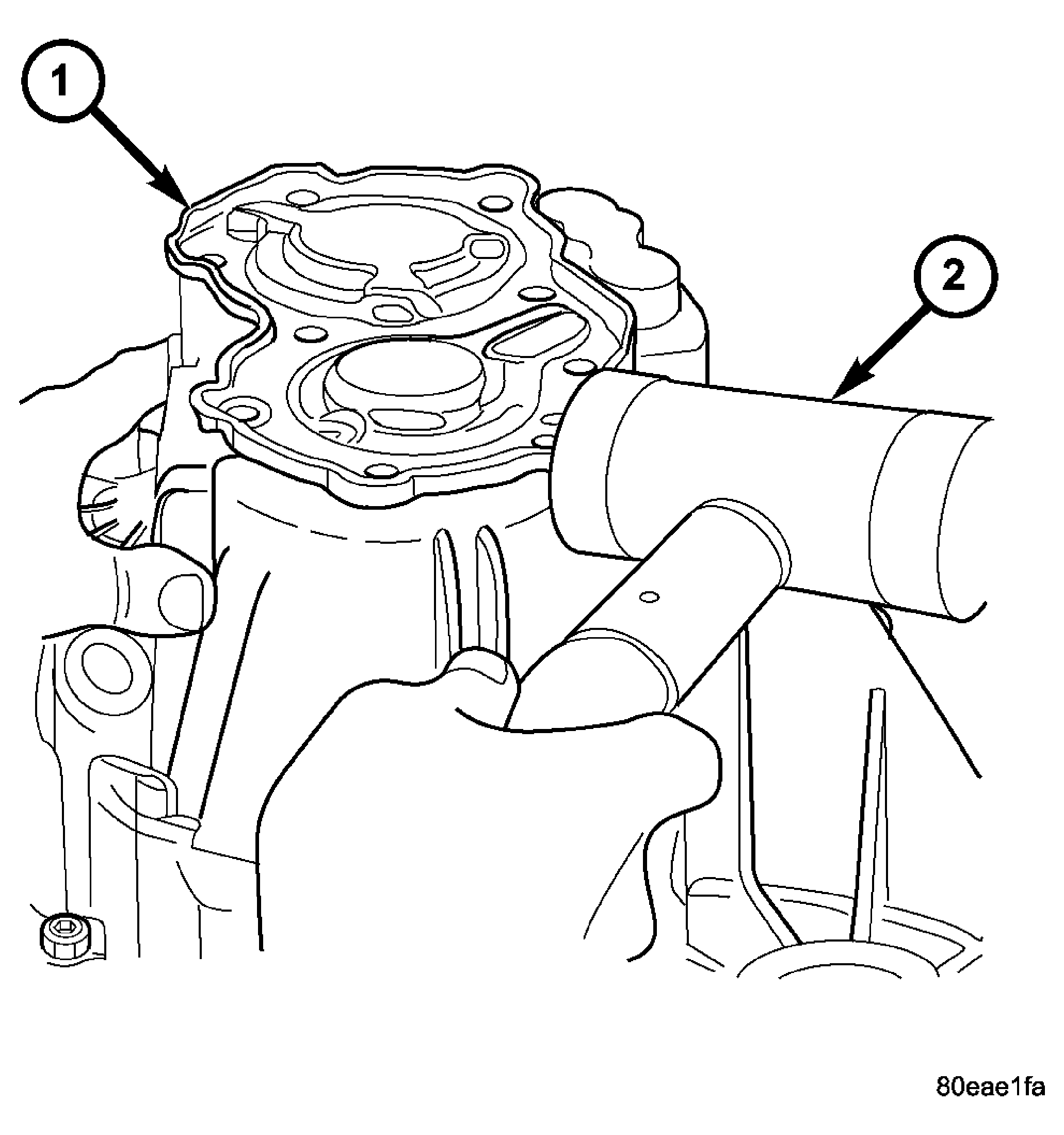

1 - END COVER 2 - SOFT-TIPPED HAMMER - Using a soft tipped hammer (2), break end cover-to-case seal and remove end cover (1). See Fig 8.
1 - DIVERTER 2 - LOCATOR PROVISIONS - Remove and inspect plastic oil diverters (1). See Fig 9.
1 - FIFTH GEAR FORK 2 - SCREWDRIVER - Using suitable screwdriver (2), place transaxle into fifth. See Fig 10.
1 - REVERSE GEAR FORK 2 - SCREWDRIVER - .AND reverse gears (1). See Fig 11. This locks up geartrain and facilitates removal of bearing retaining screws.
1 - RETAINING SCREWS (2) - Remove input and output shaft bearing retainer screws (1). See Fig 12.
1 - BOLTS (18-SHORT) - Remove the short (1) geartrain housing-to-clutch bellhousing bolts. See Fig 13.
1 - BOLTS (2-LONG) - Remove the long (1) geartrain housing-to-clutch bellhousing bolts. See Fig 14.
1 - FIXTURE 8869-2 2 - GEARTRAIN HOUSING - Using a soft tipped hammer, tap clutch bellhousing to break loose and remove from geartrain housing. Reverse shaft and fork/rail assembly will remain with the clutch bellhousing.
- Using a suitable prybar(s), separate reverse shaft assembly from clutch bellhousing.
- Remove differential assembly from transaxle housing.

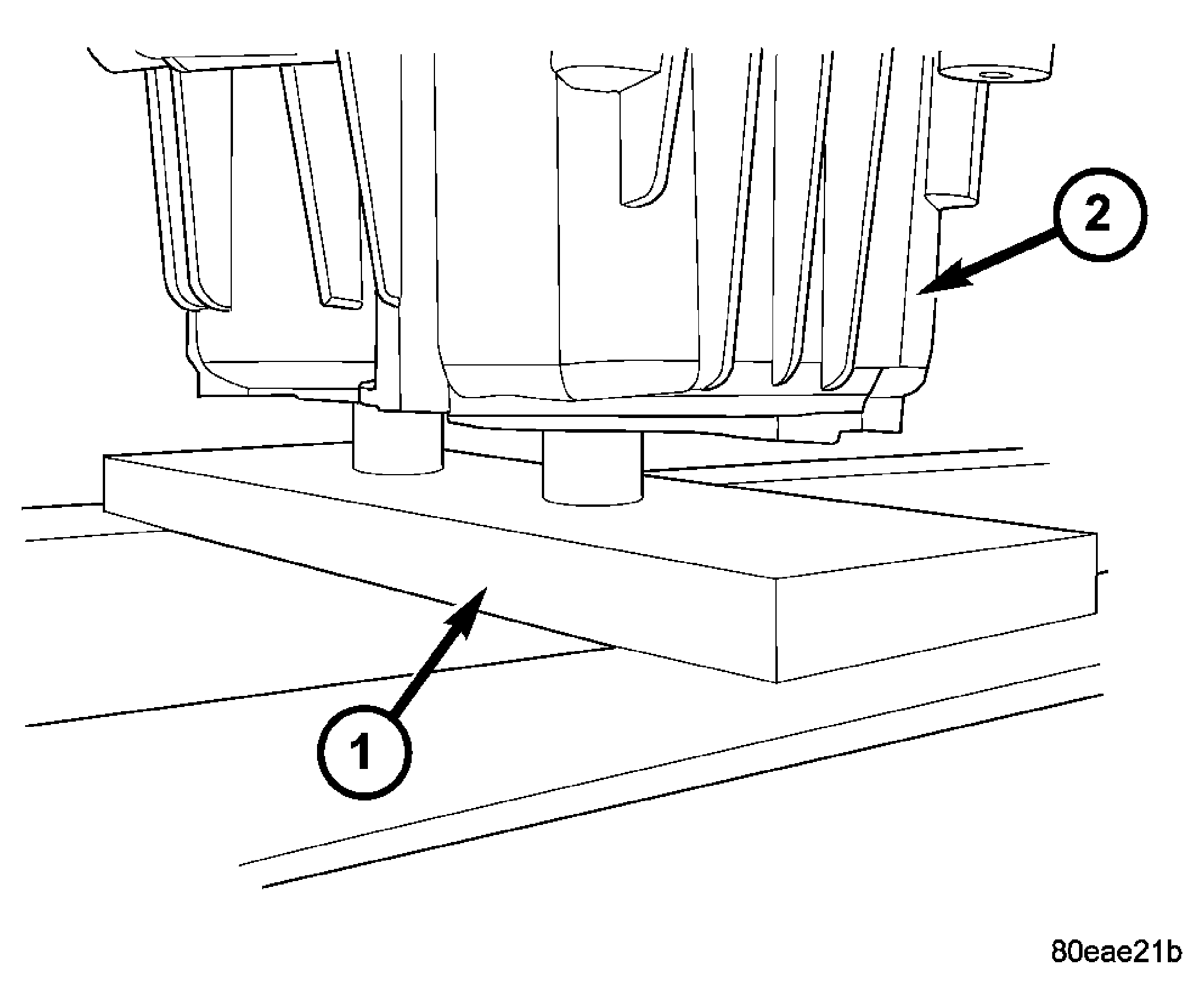

- Place Fixture 8869-2 (1) into input and output shafts at rear of case. Set transaxle and tool on press bed. See Fig 15.

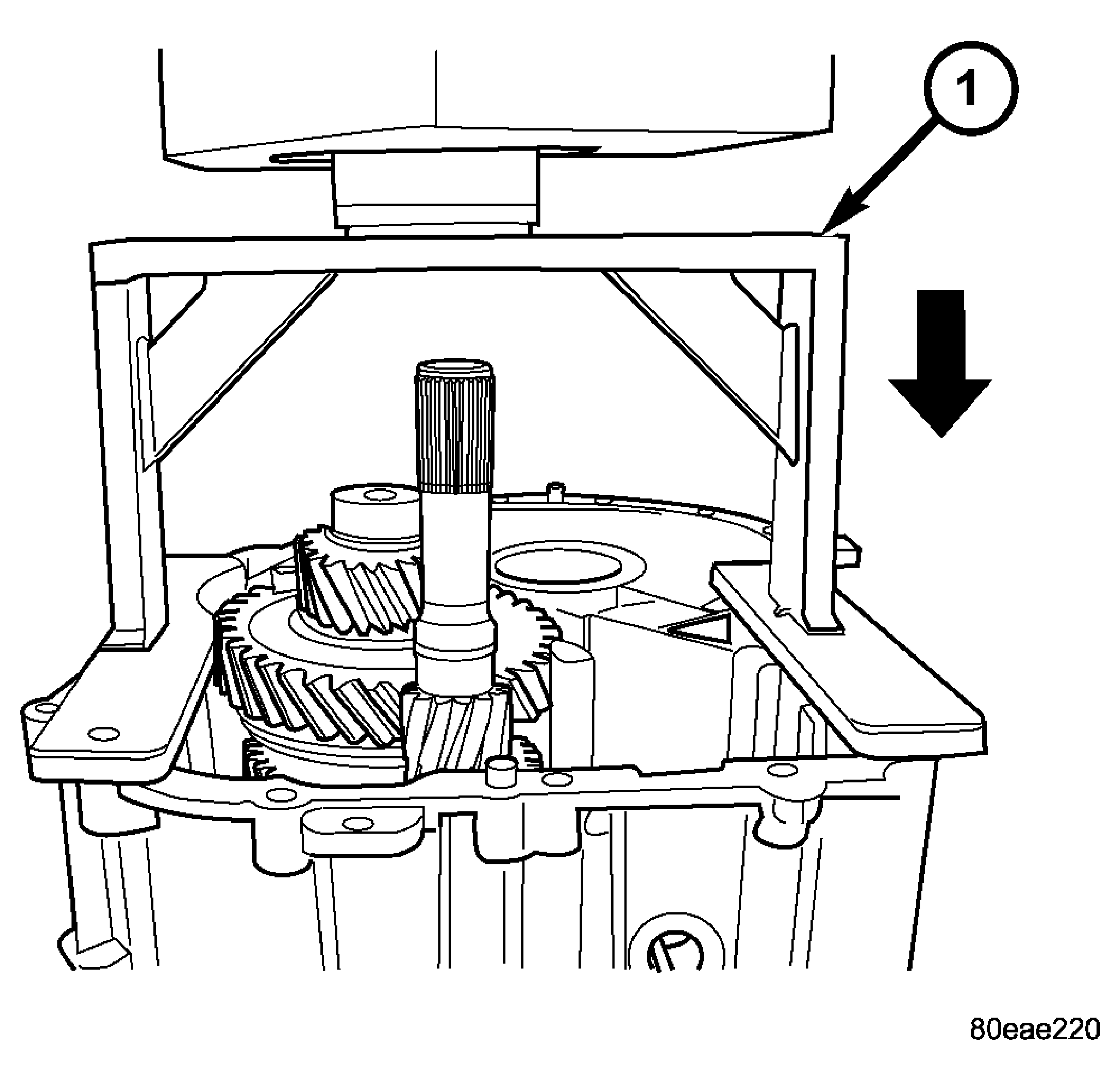

1- FIXTURE 8869-1 - Set Fixture 8869-1 (1) across case flange. Fixture 8869-1 to remove input shaft, output shaft, and fork/rail assemblies from case. See Fig 16.
1 - OIL TROUGH - Remove input shaft oil trough (1). See Fig 17.
1 - OIL TROUGH - Remove output shaft oil trough (1). See Fig 18.
