Section 2 (G288 Manual Transmission - Overhaul): Differential: Disassembly

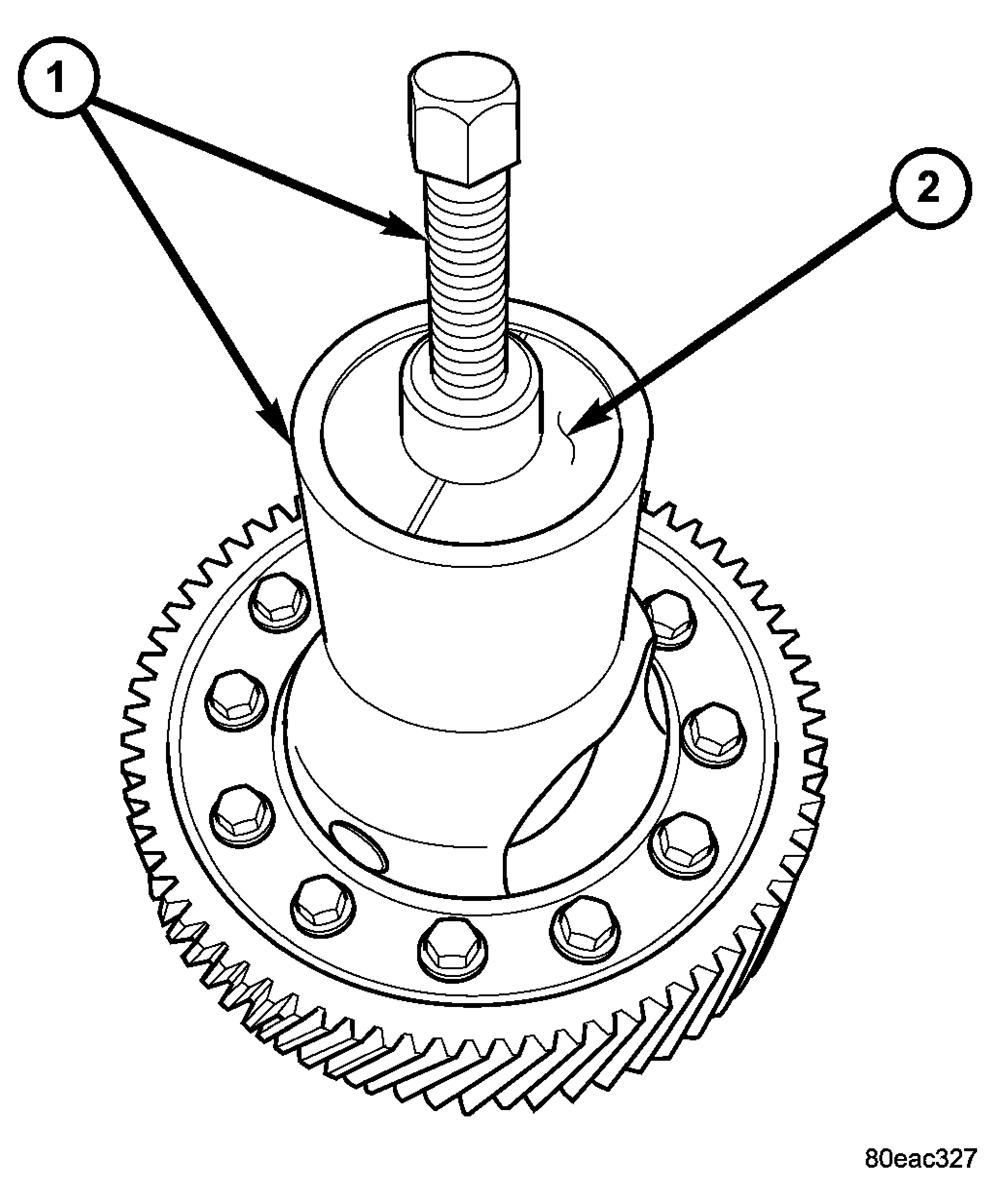

Fig 1: Bearing Removal Set-up

Courtesy of DAIMLERCHRYSLER CORP.

1 - PULLER SET 5048

2 - REMOVER 8926

1. Remove differential side bearings. Set up Puller Set 5048 (1), with Remover 8926 (2). See Fig 1.

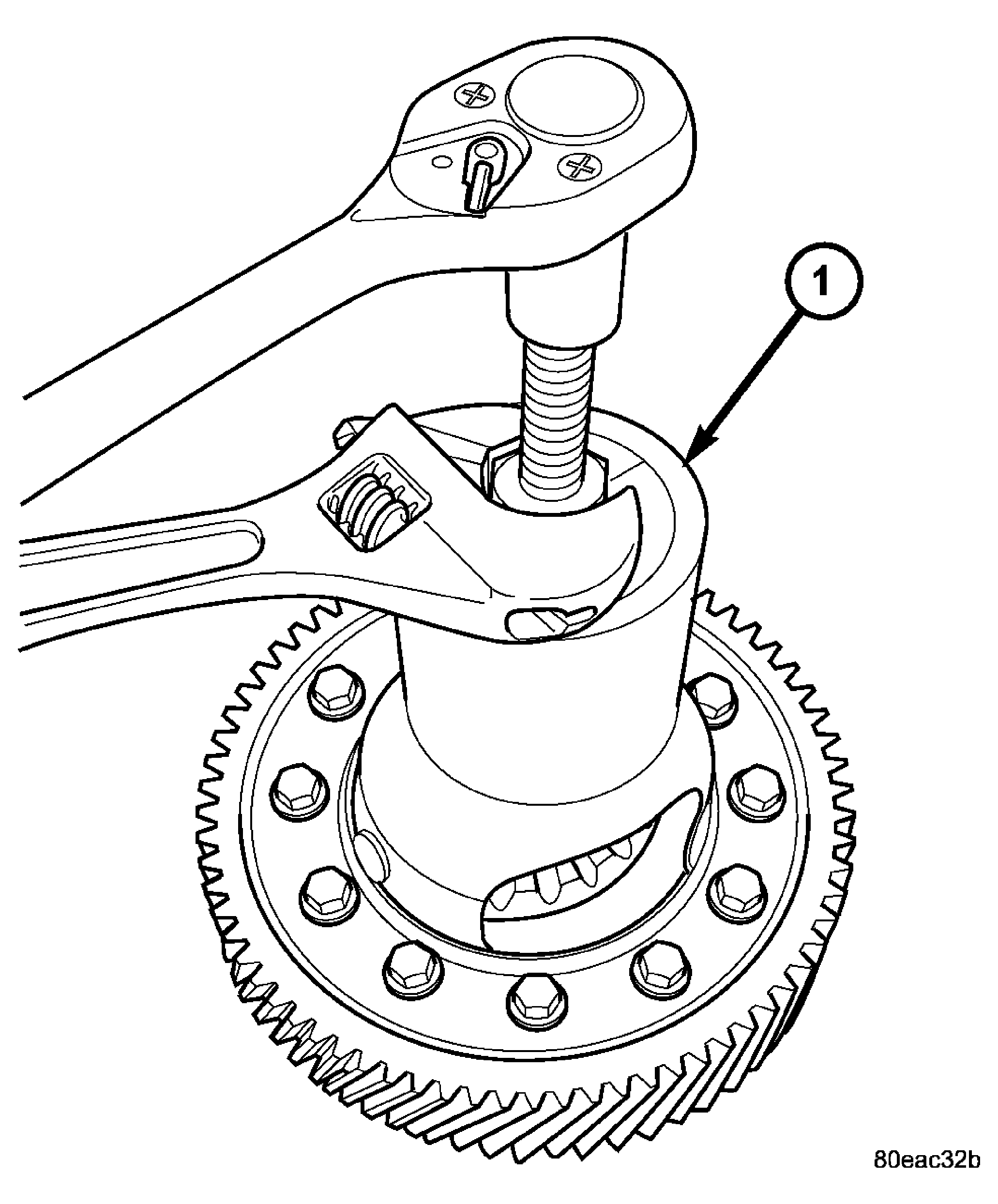

   Fig 2: Removing Differential Side Bearings

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - PULLER SET 5048

2. Using suitable socket and wrench, remove differential side bearing(s). See Fig 2.

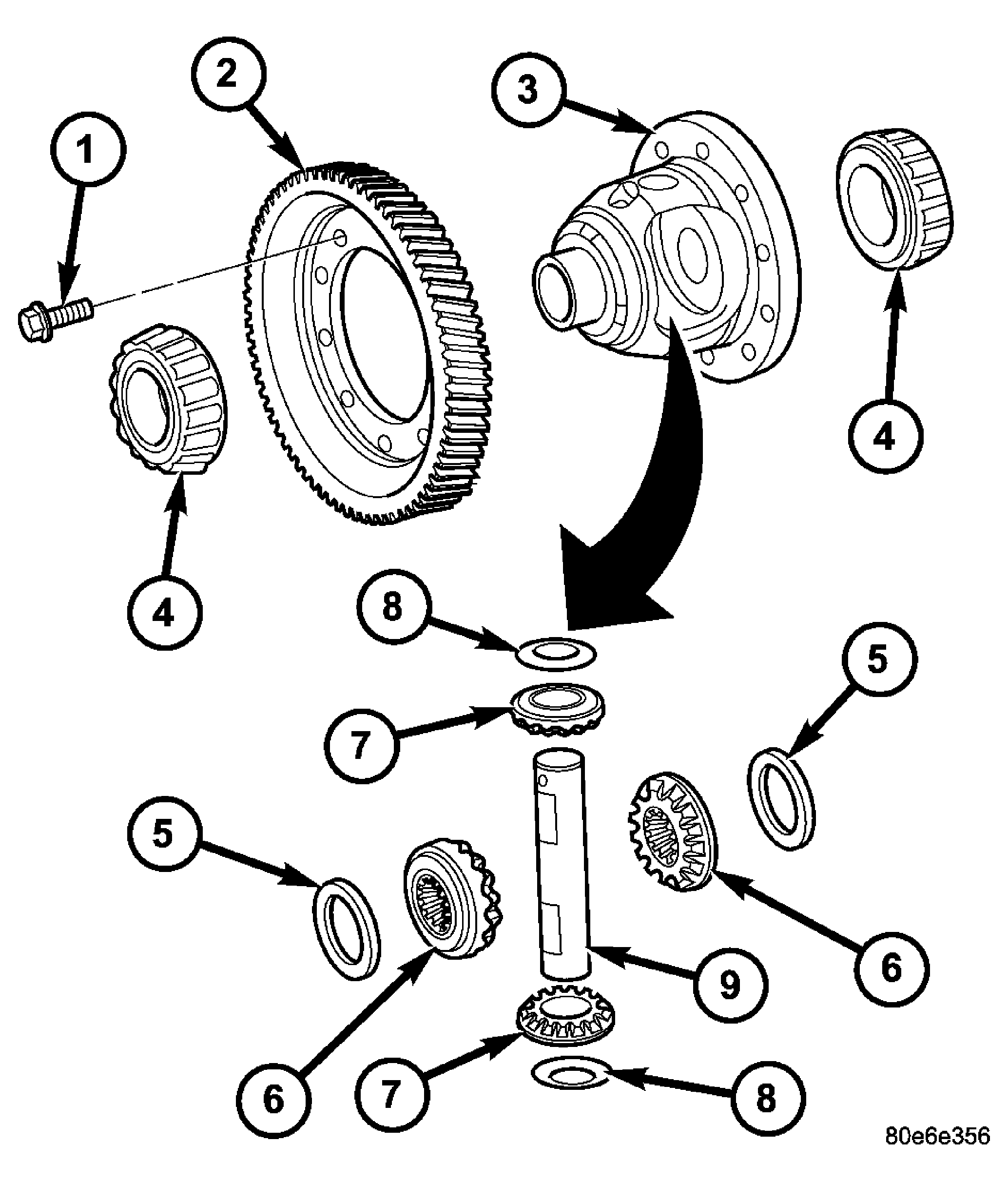

   Fig 3: Differential Components

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - BOLT (12)

   2 - RING GEAR

   3 - CASE

   4 - BEARING (2)

   5 - WASHER (2)

   6 - SIDE GEAR (2)

   7 - PINION GEAR (2)

   8 - WASHER (2)

   9 - PINION SHAFT

3. Remove pinion shaft (9), and remove all pinion gears (7), side gears (6), and thrust washers (8). See Fig 3.
4. Remove twelve (12) differential ring gear-to-case bolts (1). See Fig 3. Remove differential ring gear (2) from case.
