Backup Lamp Switch: Removal

WARNING: This page is about a different variant/trim than selected.

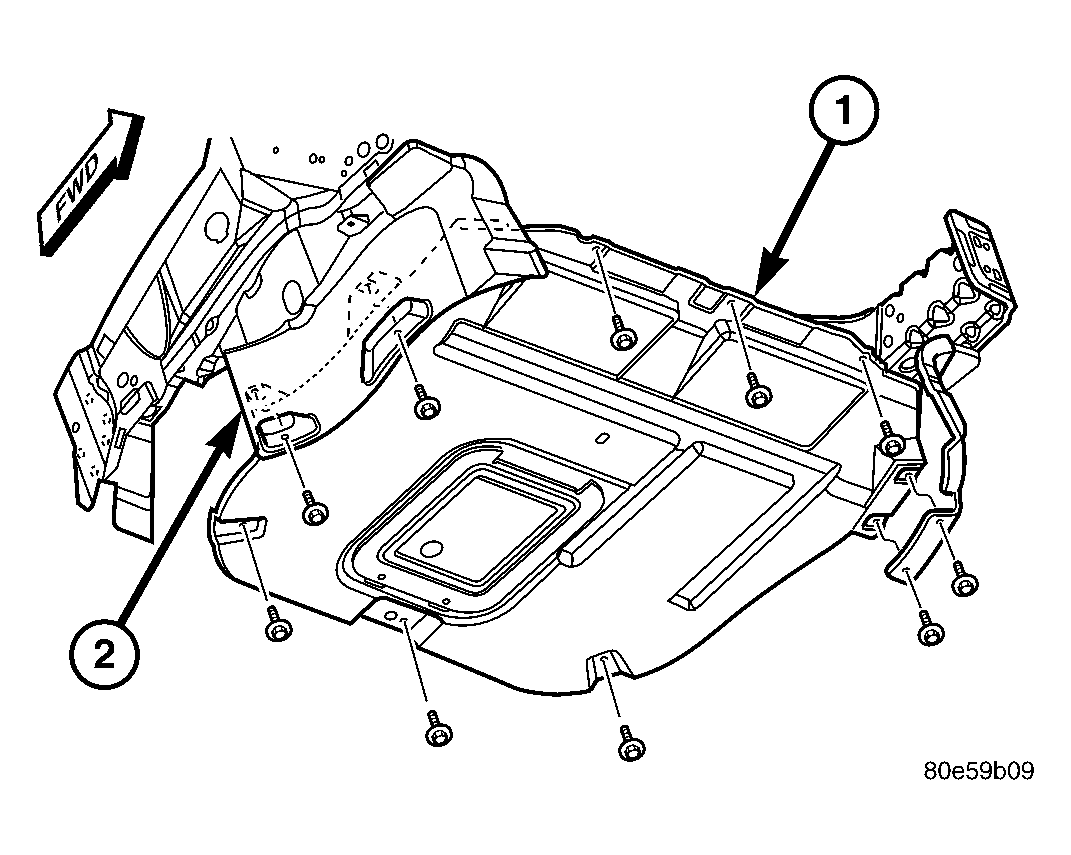

Fig 1: Engine Compartment Lower Silencer

GC0022013

Courtesy of DAIMLERCHRYSLER CORP.

1 - ENGINE COMPARTMENT SILENCER

2 - ACCESSORY DRIVE BELT SPLASH SHIELD

Disconnect battery negative cable.
Raise vehicle on hoist.
Diesel Models: Remove engine compartment lower silencer (1). See Fig 1.

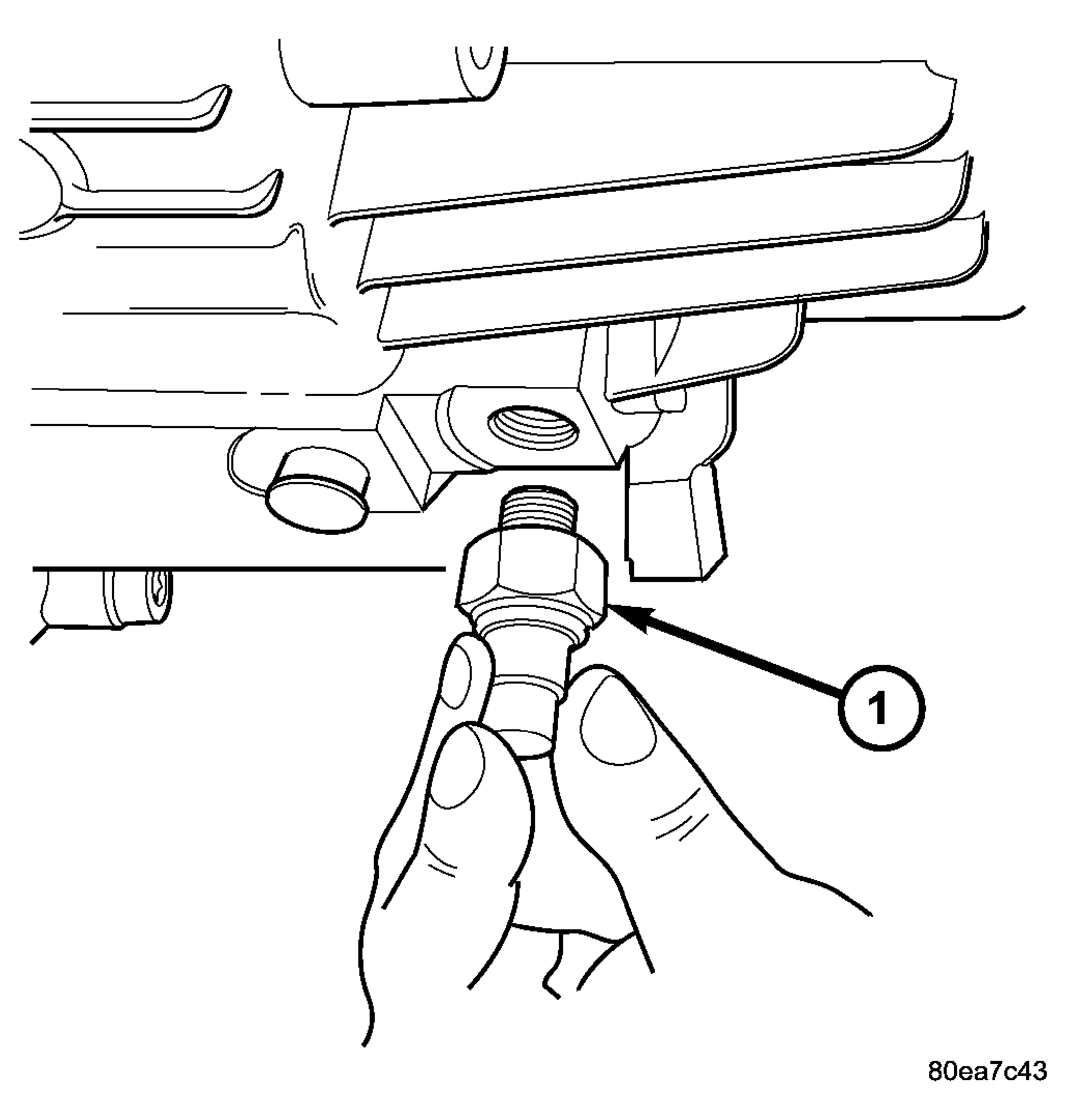

Fig 2: Backup Lamp Switch
Courtesy of DAIMLERCHRYSLER CORP.

1 - BACKUP LAMP SWITCH
Disconnect backup lamp switch connector.
Remove backup lamp switch (1). See Fig 2.
