Valve Body

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To ease installation of the valve body, turn the manual valve lever fully clockwise.

Fig 1: Identifying Underdrive & Overdrive Accumulators

Courtesy of CHRYSLER LLC

1 - OVERDRIVE PISTON AND SPRING

2 - UNDERDRIVE PISTON AND SPRING

Install overdrive (1). See Fig 1and underdrive (2) accumulators and springs.

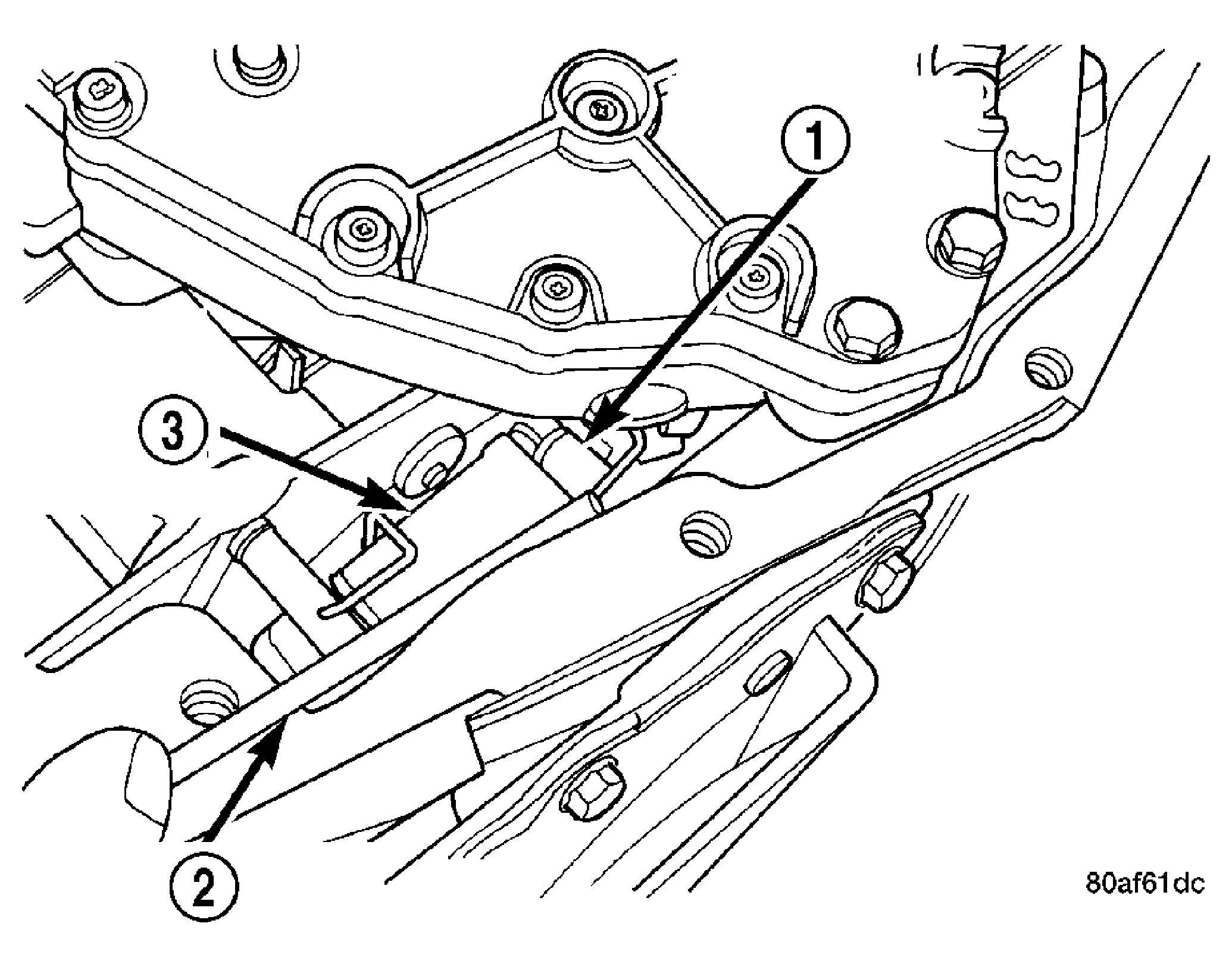

Fig 2: View of Park Rod Rollers And Guide Bracket

Courtesy of CHRYSLER LLC

1 - PARK SPRAG ROLLERS

2 - SCREWDRIVER

3 - PARK SPRAG GUIDE BRACKET

Guide park rod rollers (1) into guide bracket (2) while installing valve body to the transaxle case. See Fig 2.

Fig 3: Identifying Valve Body Attaching Bolts
Courtesy of CHRYSLER LLC

1 - VALVE BODY ATTACHING BOLTS (18)

2 - VALVE BODY
Install the valve body-to-case bolts (1). See Fig 3and torque to 12 N.m (105 in. lbs.).

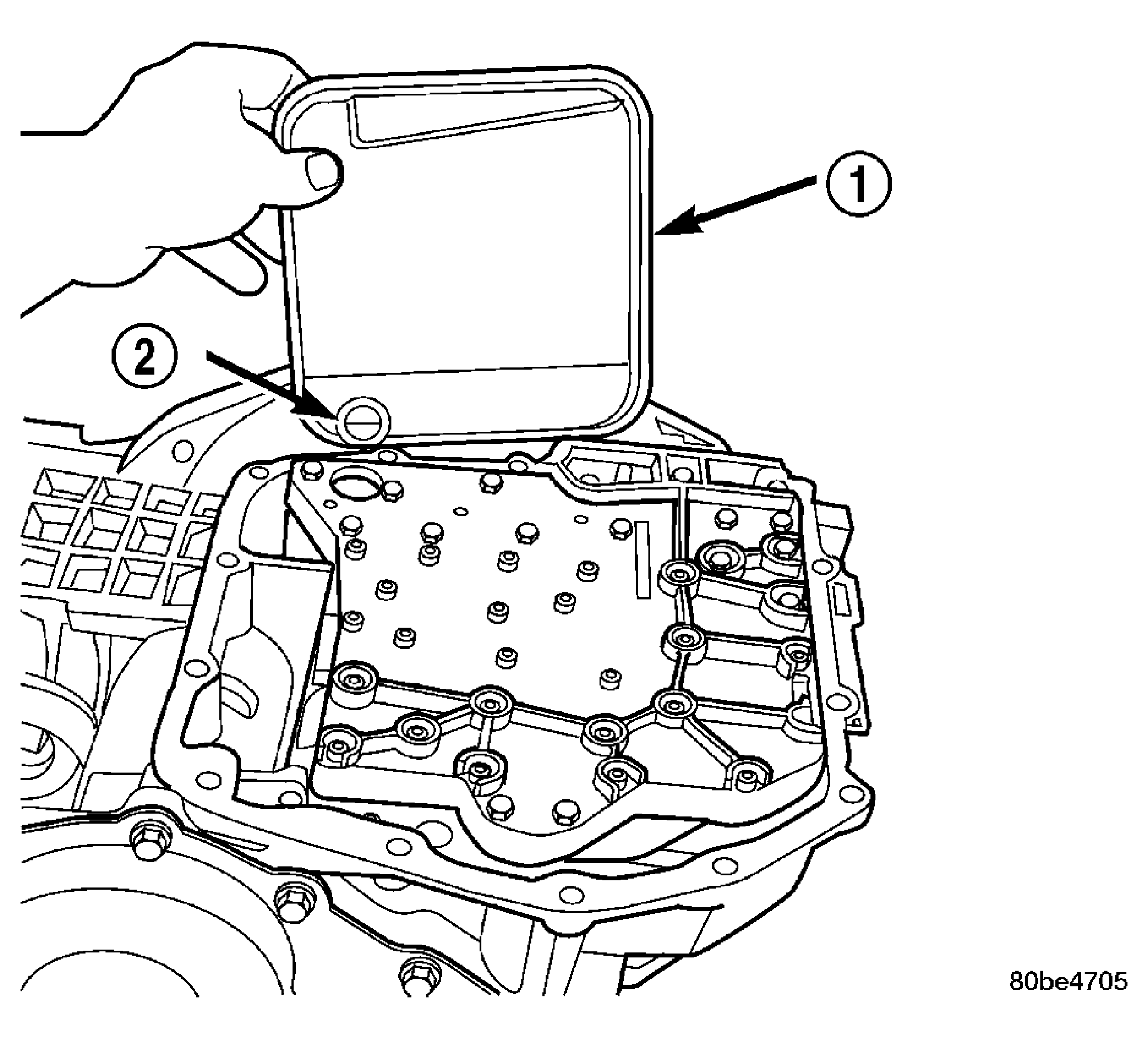

Fig 4: Identifying Filter & O-Ring
Courtesy of CHRYSLER LLC

1 - OIL FILTER

2 - O-RING

Install the oil filter (1). See Fig 4. Inspect the o-ring (2) for damage and replace as necessary.

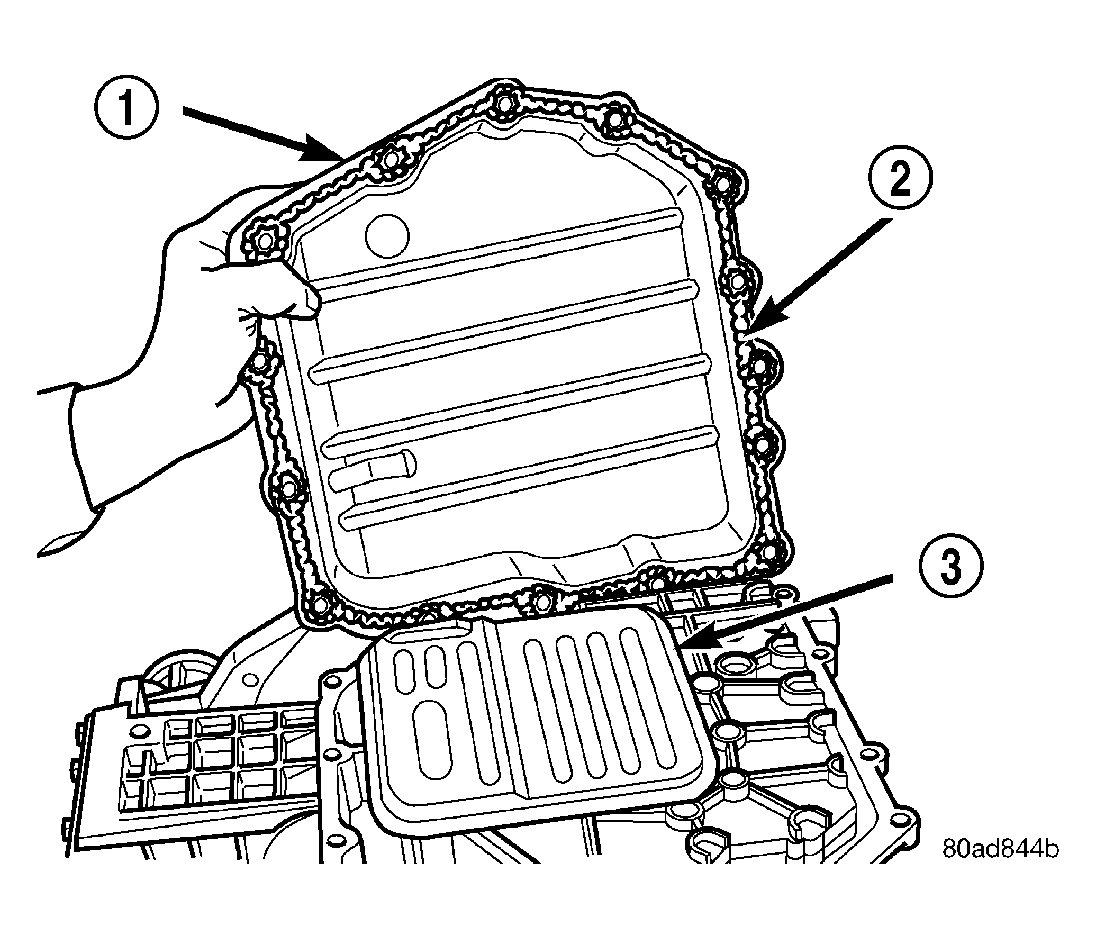

Fig 5: Identifying Oil Pan With Adhesive Sealant Areas

Courtesy of CHRYSLER LLC

1 - OIL PAN

2 - 1/8 INCH BEAD OF RTV SEALANT

3 - OIL FILTER

Install an 1/8' bead of RTV (2) and install pan (1) to case. See Fig 5.

Fig 6: Locating Oil Pan Bolts
Courtesy of CHRYSLER LLC

1 - OIL PAN BOLTS (USE RTV UNDER BOLT HEADS)
Install oil pan bolts (1) and torque to 19 N.m (165 in. lbs.) torque. See Fig 6.
Lower vehicle.

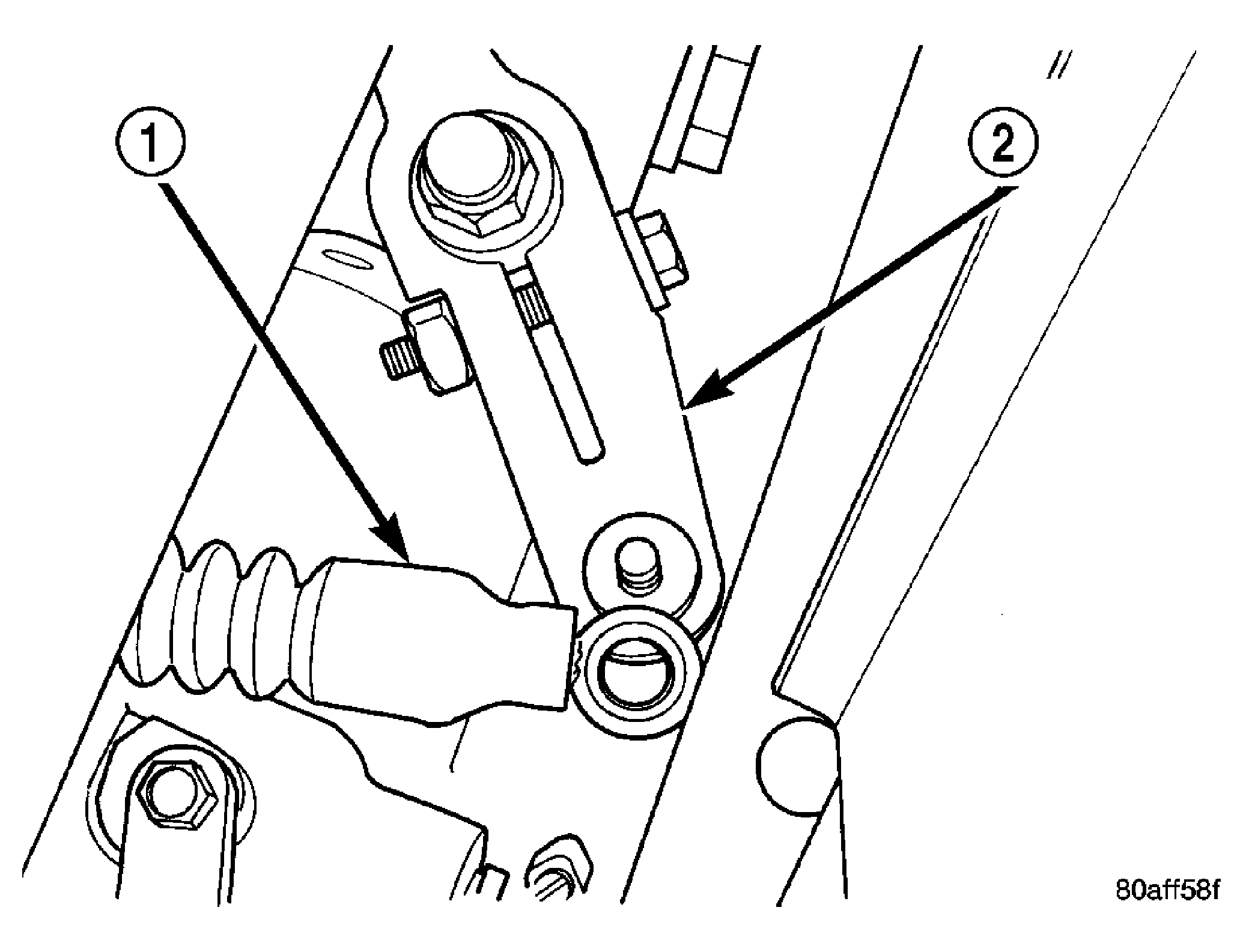

Fig 7: Locating Gearshift Cable At Manual Valve Lever
Courtesy of CHRYSLER LLC

1 - GEARSHIFT CABLE

2 - MANUAL VALVE LEVER
Install manual valve lever (2) to manual shaft. See Fig 7.
Install gearshift cable (1) to manual valve lever.

Fig 8: Removing/Installing Battery Tray
Courtesy of CHRYSLER LLC
Install the battery tray (1). See Fig 8.

Fig 9: Removing/Installing Battery
Courtesy of CHRYSLER LLC

1 - BATTERY
Install the battery (1) and hold down clamp. See Fig 9.

Fig 10: Removing/Installing Air Cleaner Assembly
Courtesy of CHRYSLER LLC

1 - AIR CLEANER ASSEMBLY
Install air cleaner assembly (1). See Fig 10.
Connect battery cables.
Fill transaxle with fluid. Refer to STANDARD PROCEDURE for proper fluid fill procedure.
