Solenoid/Pressure Switch Assembly

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Air Cleaner Assembly

Courtesy of CHRYSLER LLC

1 - AIR CLEANER ASSEMBLY

Disconnect the battery cables.
Remove air cleaner assembly (2). See Fig 1.

Fig 2: Removing/Installing Battery
Courtesy of CHRYSLER LLC

1 - BATTERY
Remove the battery hold down clamp and remove the battery (1). See Fig 2.

Fig 3: Removing/Installing Battery Tray
Courtesy of CHRYSLER LLC
Remove the battery tray (1). See Fig 3.

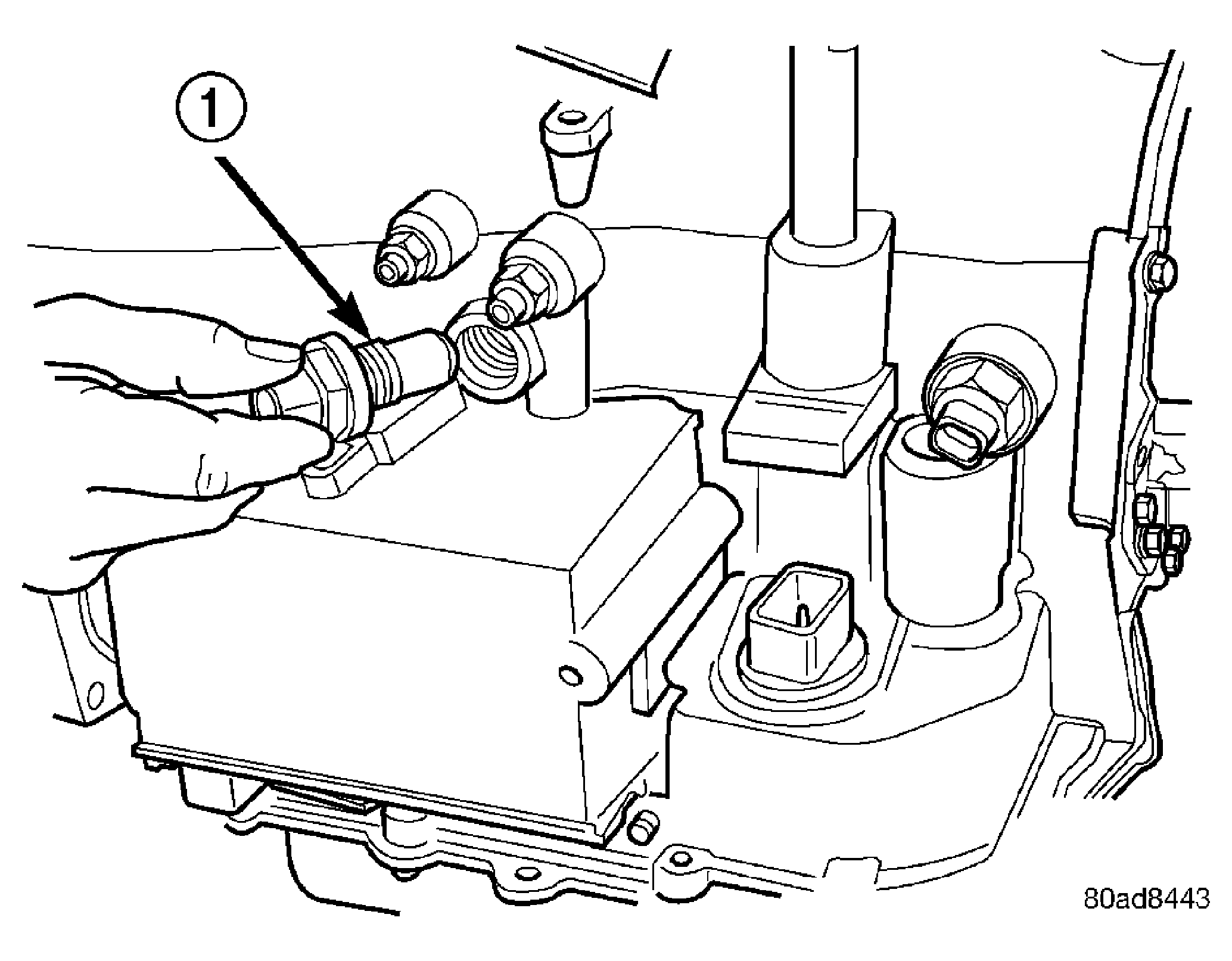

Fig 4: Removing/Installing Input Speed Sensor
Courtesy of CHRYSLER LLC

1 - INPUT (TURBINE) SPEED SENSOR
Disconnect and remove the input speed sensor (1). See Fig 4.
Disconnect the transmission oil cooler lines. Cap off hoses and fittings to prevent foreign matter intrusion.
Disconnect the solenoid/pressure switch assembly connector.

Fig 5: Identifying Solenoid Pack-To-Transaxle Bolts
Courtesy of CHRYSLER LLC

1 - BOLTS

2 - SOLENOID AND PRESSURE SWITCH ASSEMBLY
Remove the three solenoid/pressure switch assembly-to-transaxle case bolts (1). See Fig 5.

Fig 6: Identifying Solenoid/Pressure Switch Assembly & Gasket
Courtesy of CHRYSLER LLC

1 - SOLENOID/PRESSURE SWITCH ASSEMBLY

2 - GASKET
Remove solenoid/pressure switch assembly (1) and gasket (2). See Fig 6.

CAUTION: Be sure to keep foreign material from entering ports in transaxle case. Erratic transaxle operation and/or failure can result.
