Oil Pump Seal
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC

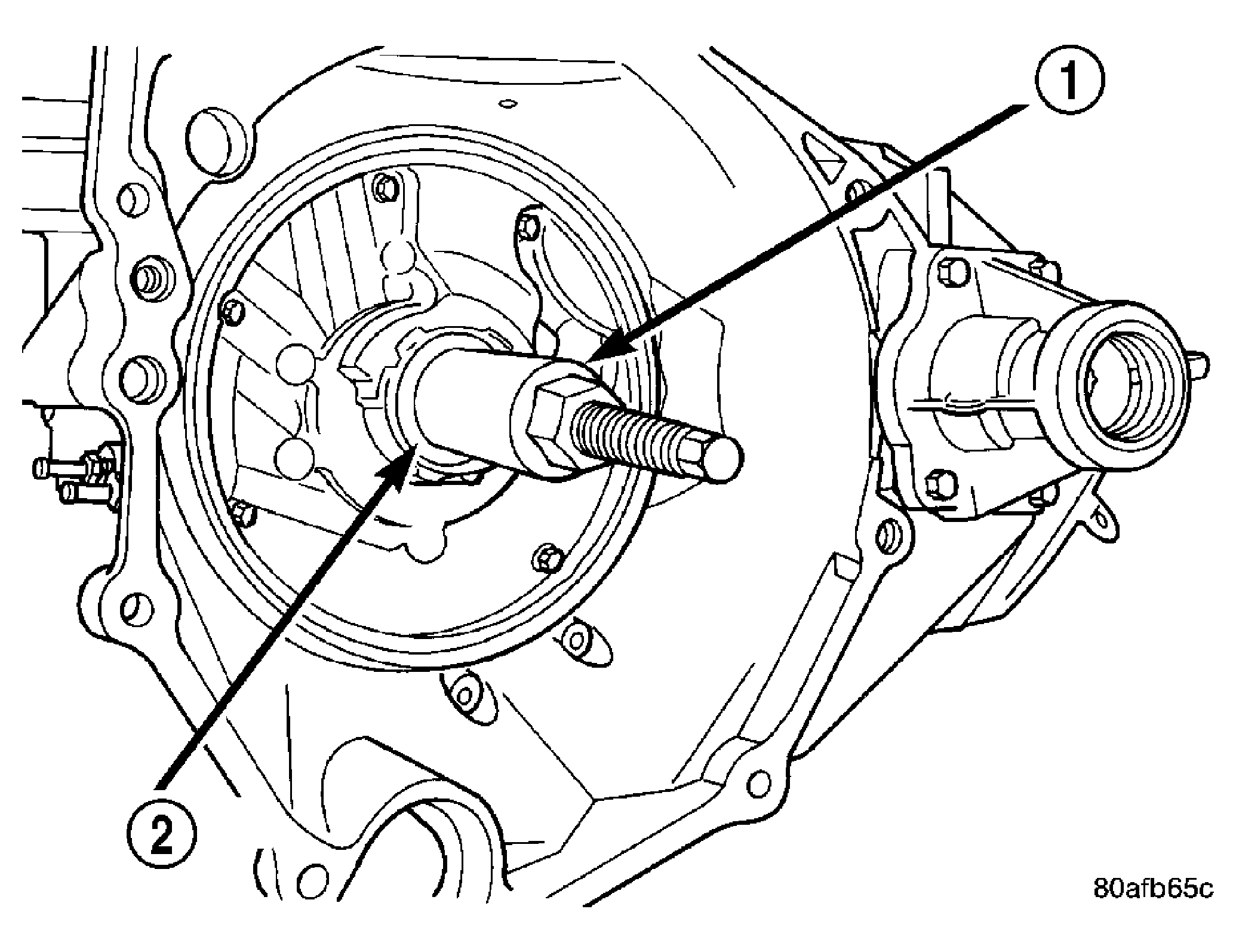

| 1 - SEAL PULLER C-3981-B |
| 2 - OIL PUMP SEAL |
- Remove transaxle from vehicle. See REMOVAL .
- Using Seal Puller C-3981-B (1), remove oil pump seal (2). See Fig 1.
