Special Tools: Wiring/Terminal

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Probing Tool Package 6807

Courtesy of CHRYSLER LLC

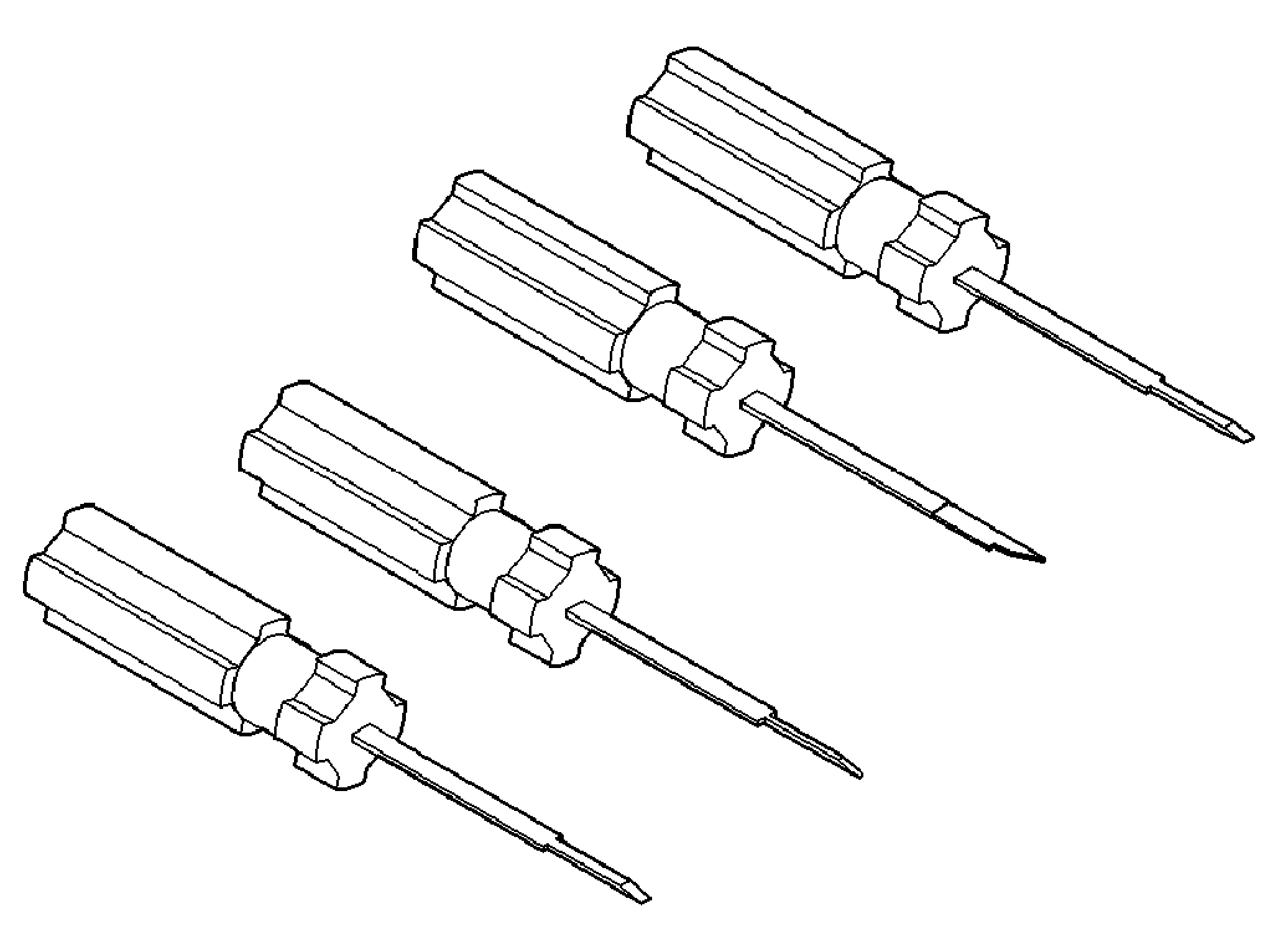

Fig 2: Terminal Pick Tool Set 6680

Courtesy of CHRYSLER LLC

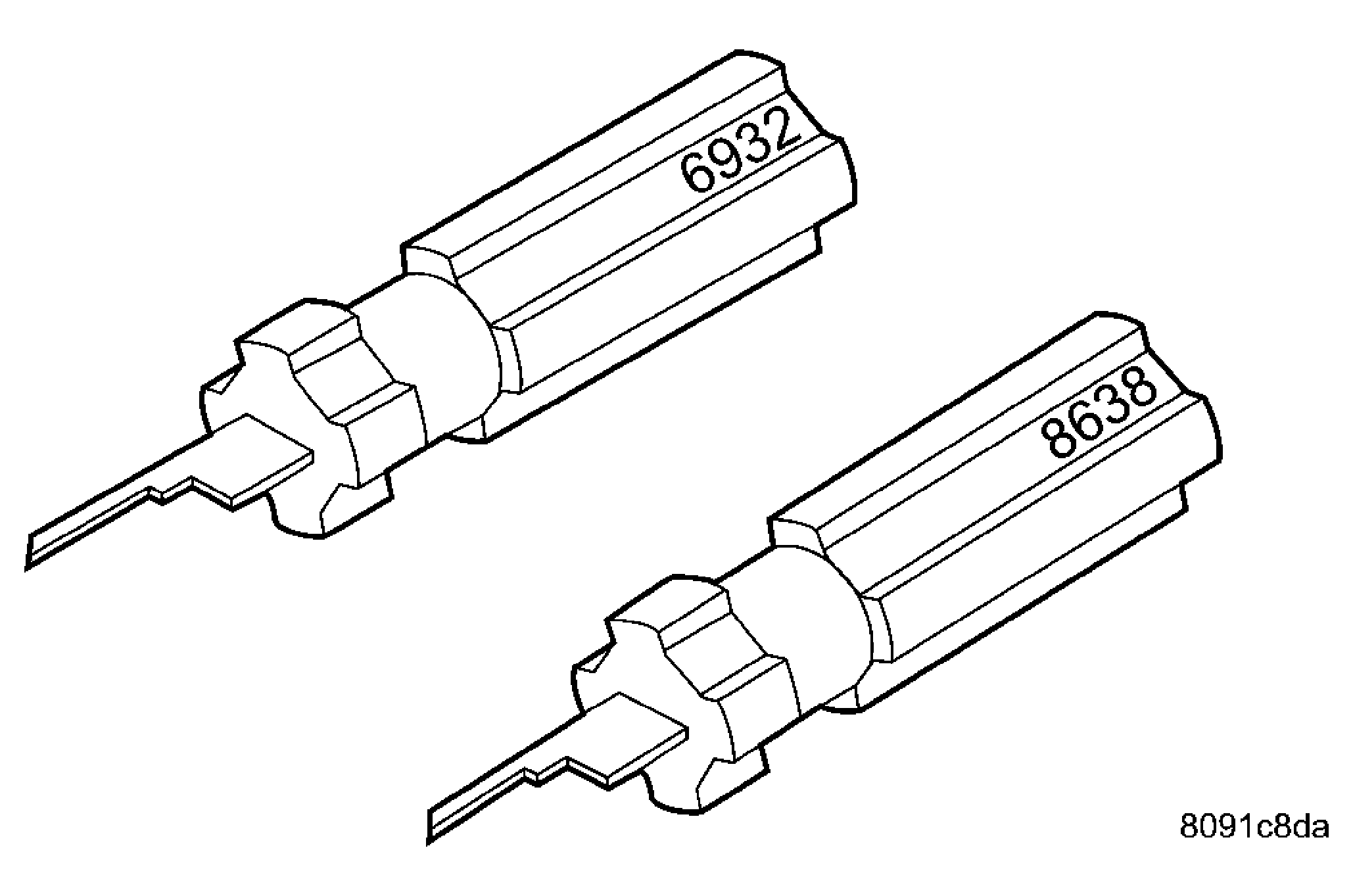

Fig 3: Terminal Removing Tools 6932 & 8638

Courtesy of CHRYSLER LLC

Fig 4: Terminal Removing Tool 6934

Courtesy of CHRYSLER LLC
