WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

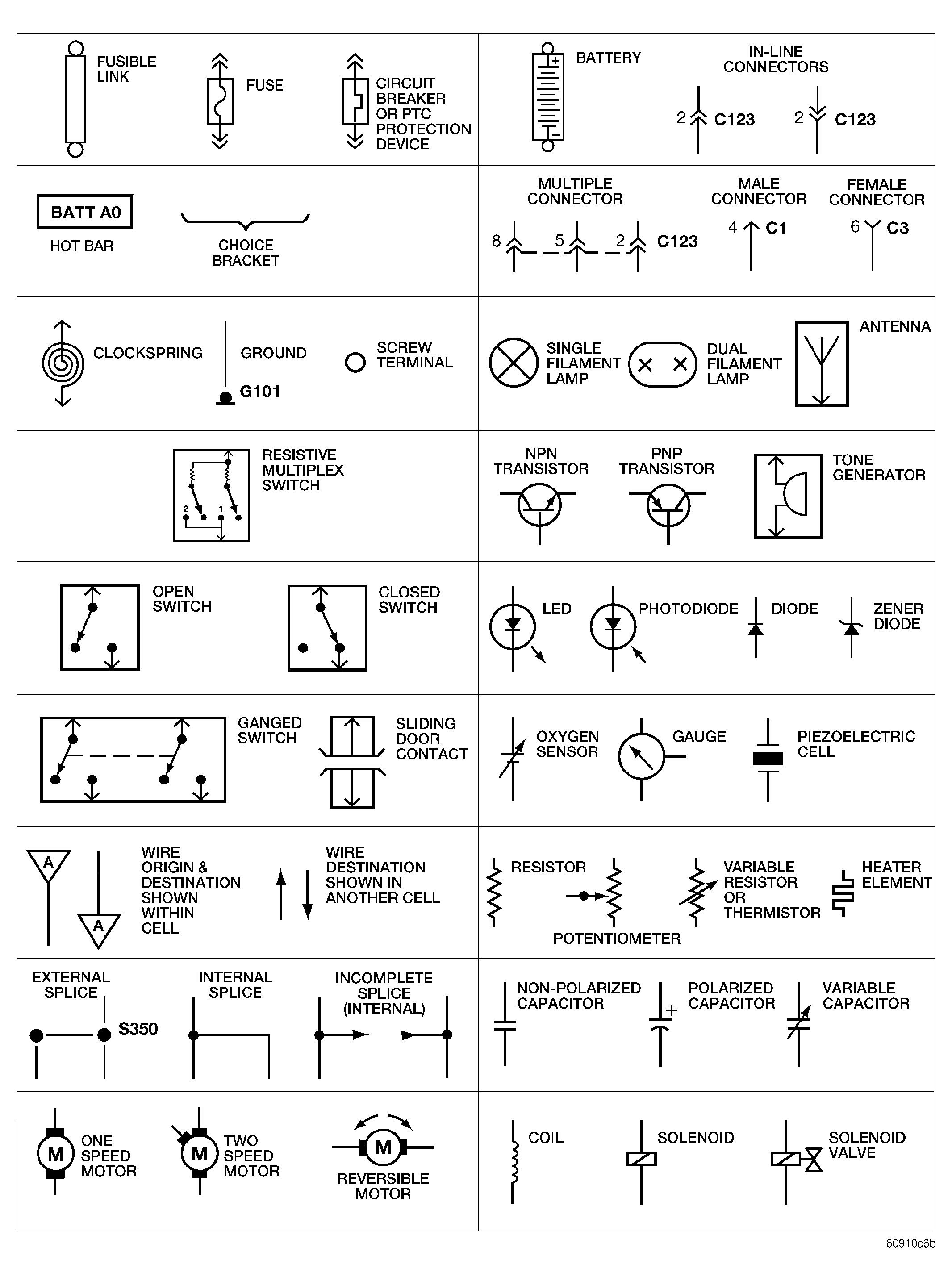

International symbols are used throughout the wiring diagrams. These symbols are consistent with those being used around the world.
