Diagnostic Test
- 1) CHECK FOR ACTIVE DTCS
With the scan tool, read the active DTC's.
Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per cycle.
With the scan tool, read the active DTC's.
Does the scan tool display this DTC as active?
Yes
- Go to 2).
No
- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
- 2) CHECK TOTALLY INTEGRATED POWER MODULE DTC's
With the scan tool, read TIPM active DTC's
Does the scan tool display any CAN B BUS DTC's - ACTIVE?
Yes
- Refer to DIAGNOSIS AND TESTING .
No
- Go to 3).

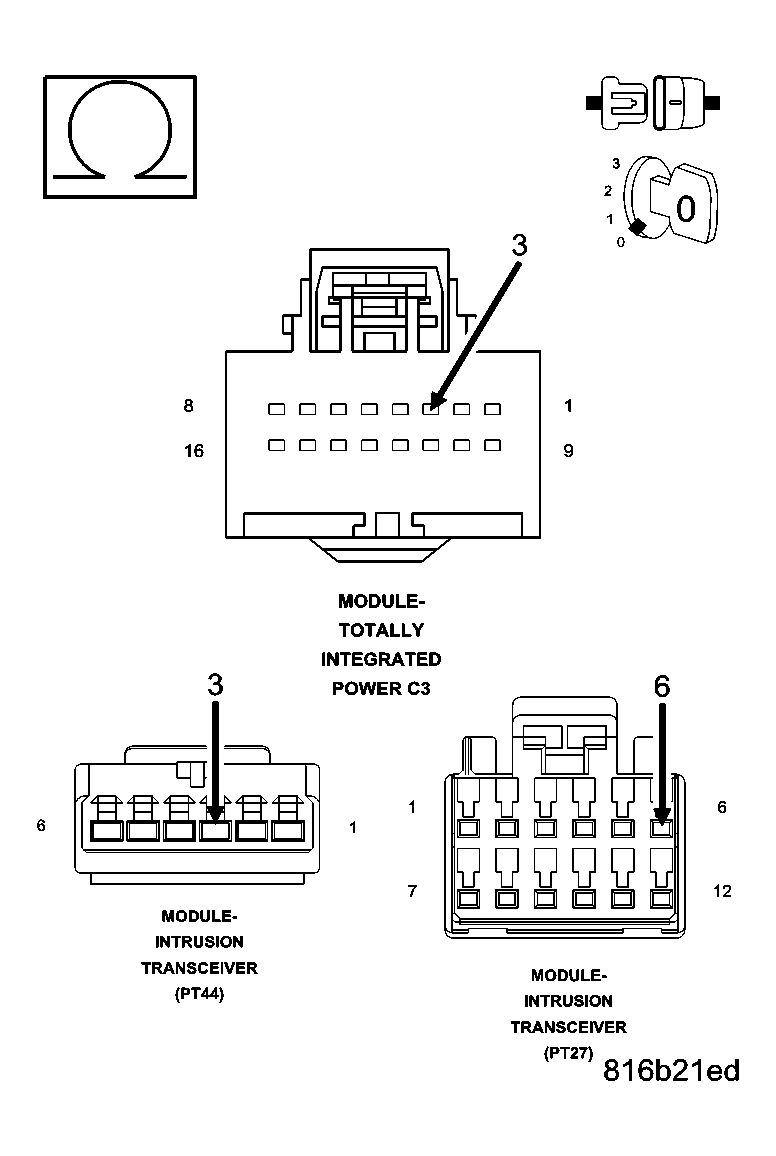

- 3) (D55) CAN B BUS (+) CIRCUIT OPEN
Turn the ignition off.
Disconnect the negative battery cable.
Disconnect the Intrusion Transceiver Module connector.
Disconnect the TIPM C3 connector.
Measure the resistance of the (D55) CAN B Bus (+) circuit between the TIPM C3 connector and the Intrusion Transceiver Module connector.
Is the resistance below 2.0 ohms?
Yes
- Go to 4).
No
- Repair the (D55) CAN B Bus (+) circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1 .

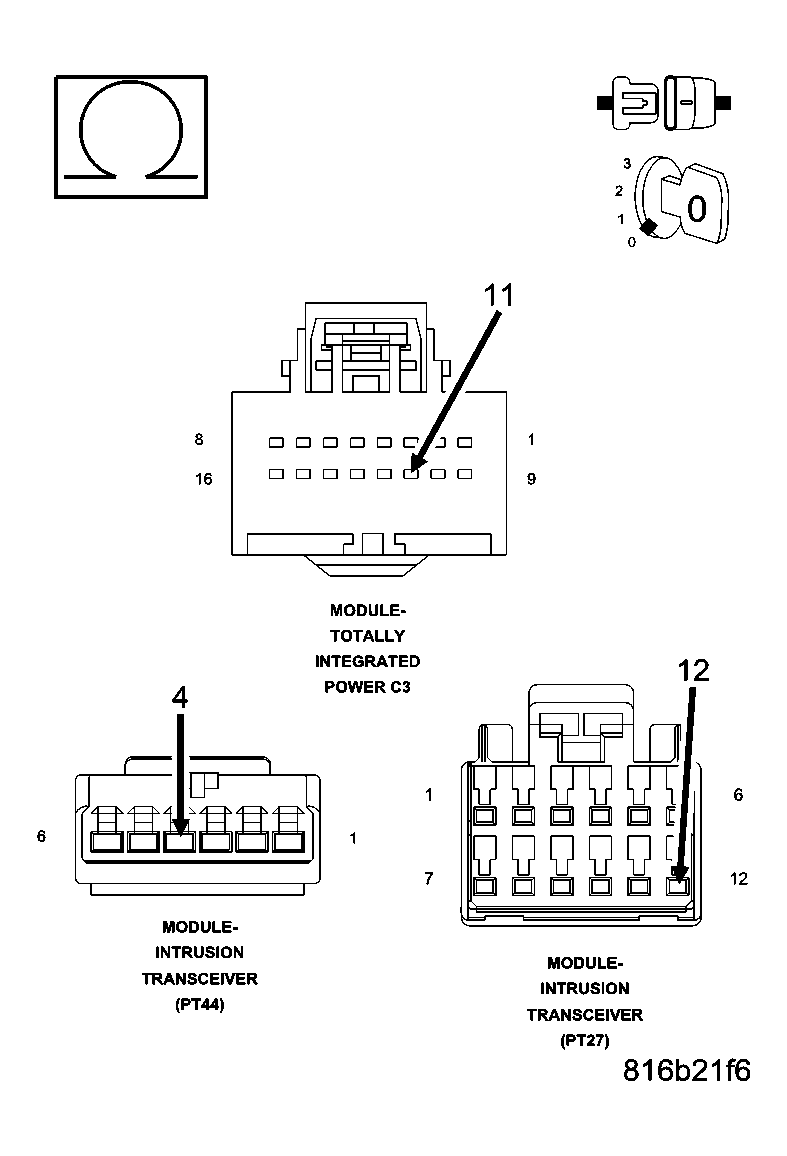

- 4) (D54) CAN B BUS (-) CIRCUIT OPEN
Measure the resistance of the (D54) CAN B Bus (-) circuit between the TIPM C3 connector and the Intrusion Transceiver Module connector.
Is the resistance below 2.0 ohms?
Yes
- Replace the Intrusion Transceiver Module in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1 .
No
- Repair the (D54) CAN B Bus (-) circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1 .
