Rear Seat Back

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

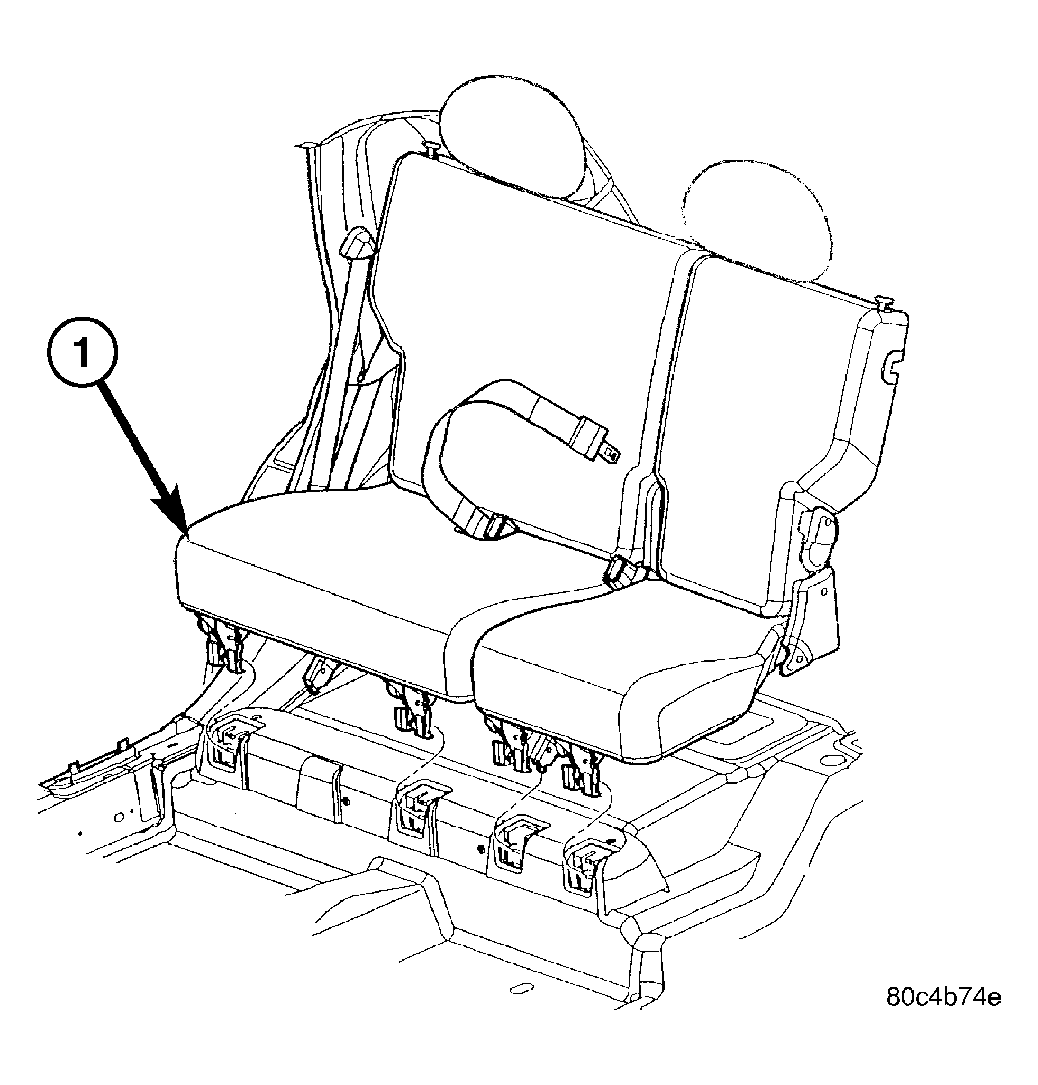

Fig 1: Rear Seat
GC0022511Courtesy of CHRYSLER LLC
1 - REAR SEAT
  1. Remove seat from vehicle.
  2. Remove seat cushion side shields.

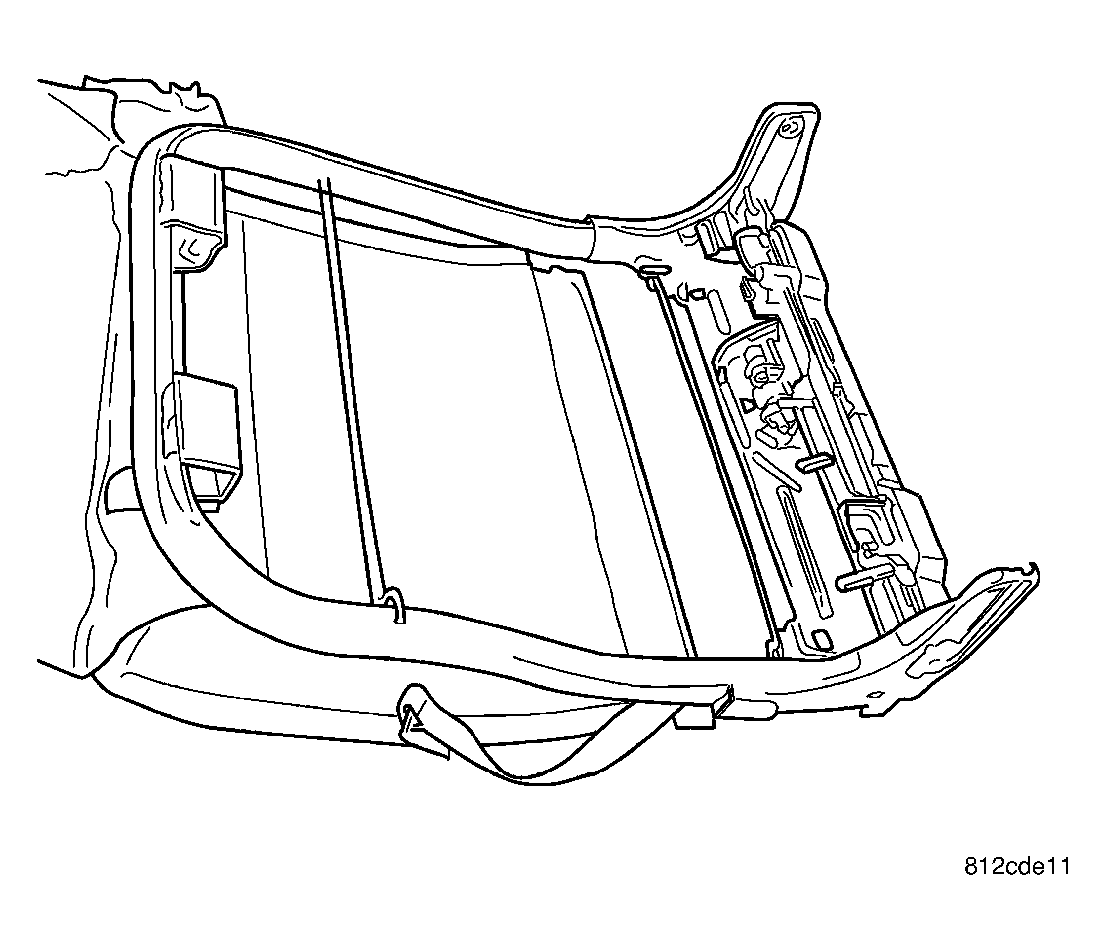

    Fig 2: Rear Seat Cushion Frame
    GC0022549Courtesy of CHRYSLER LLC
  3. Remove bolts attaching recliner to seat back cushion frame.
  4. Remove inboard pivot bolt.
  5. Remove seat back from seat cushion.

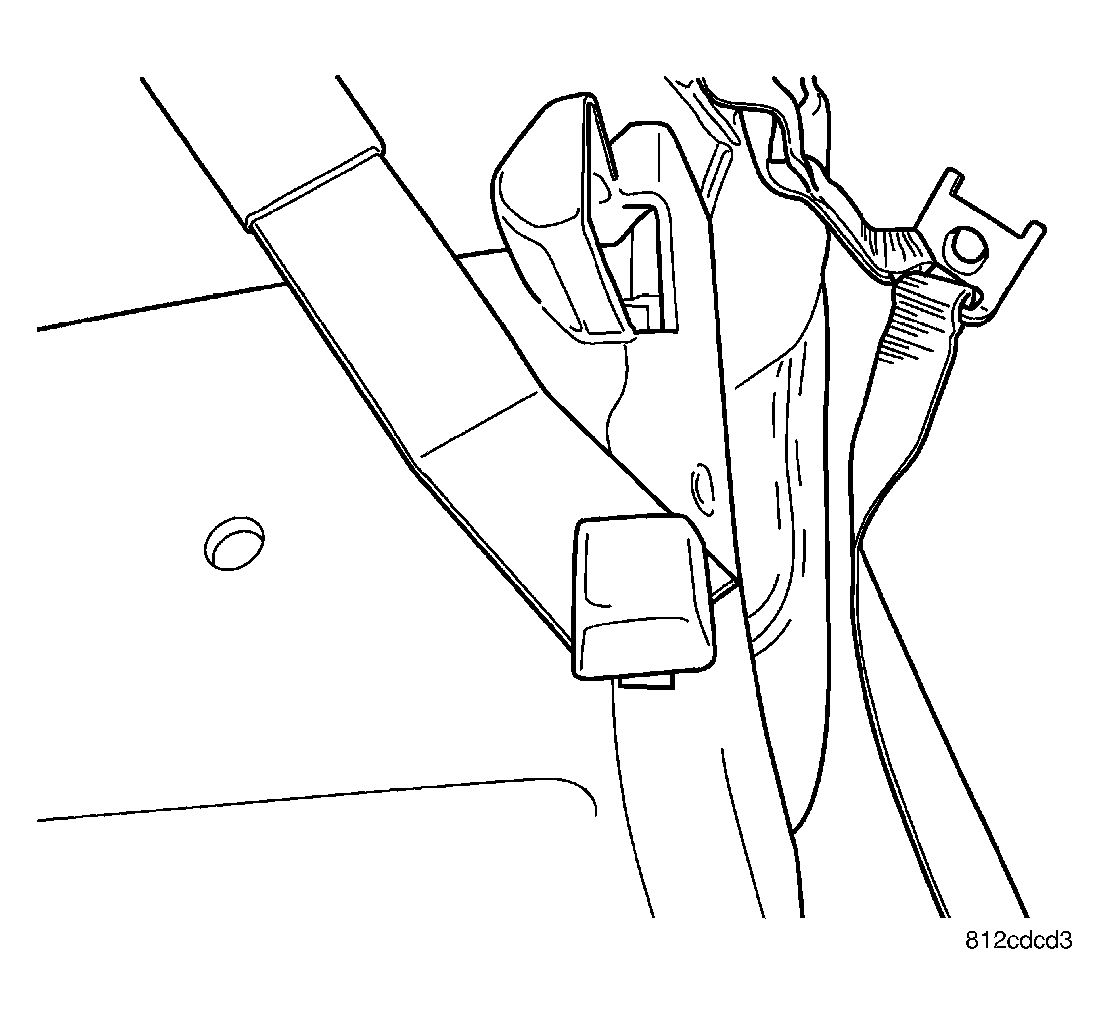

Fig 1: Removing Rubber Bumper
GC0022529Courtesy of CHRYSLER LLC
  1. Remove seat from vehicle. See REMOVAL .
  2. Remove rubber bumper.

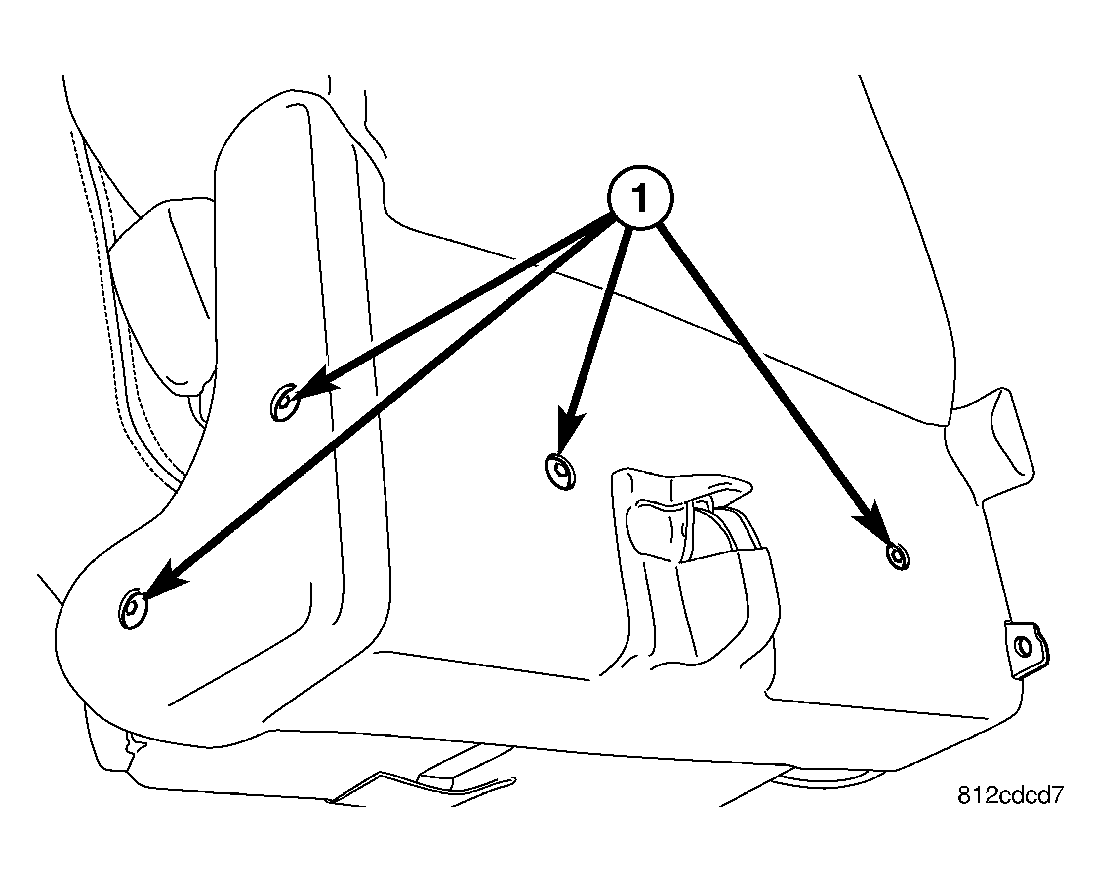

    Fig 2: Rear Seat Shield
    GC0022526Courtesy of CHRYSLER LLC
    ATTACHING SCREWS
  3. Remove seat cushion side shields.

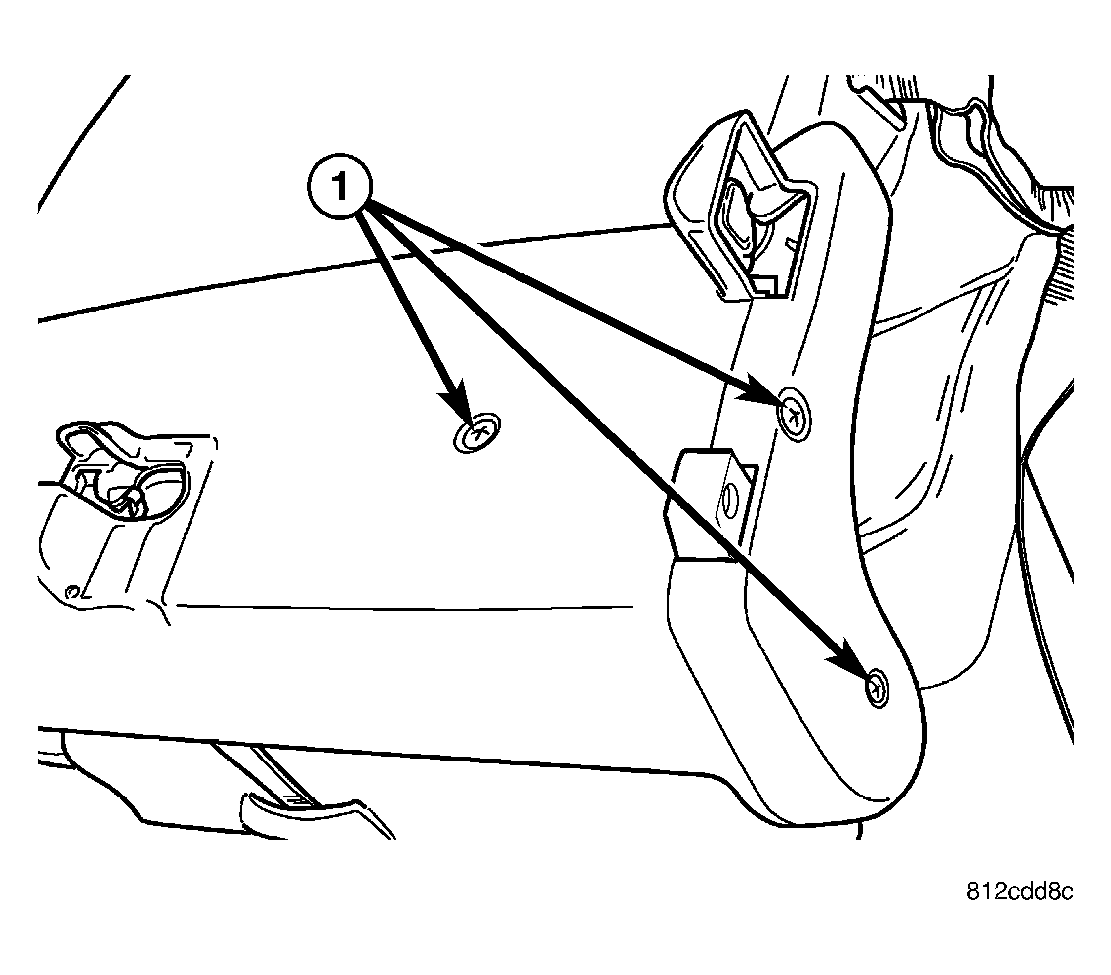

    Fig 3: Rear Seat Cushion Shield 2
    GC0022527Courtesy of CHRYSLER LLC
    1 - ATTACHING SCREWS
  4. Remove seat cushion side shields.

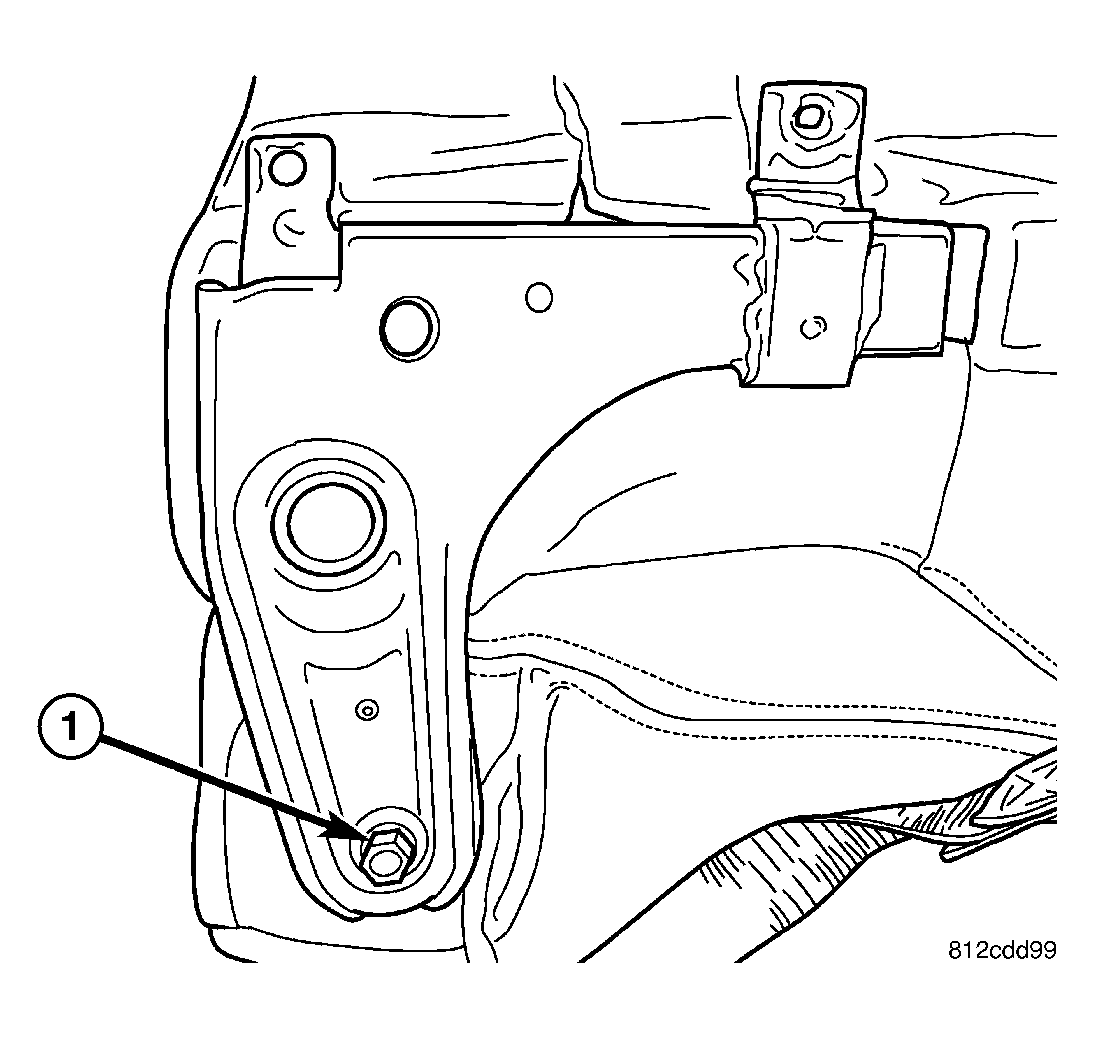

    Fig 4: Hinge Bracket
    GC0022528Courtesy of CHRYSLER LLC
    1 - ATTACHING BOLT
  5. Remove inboard pivot bolt.
  6. Remove seat back from seat cushion.
