Rear Seat Cushion Cover

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

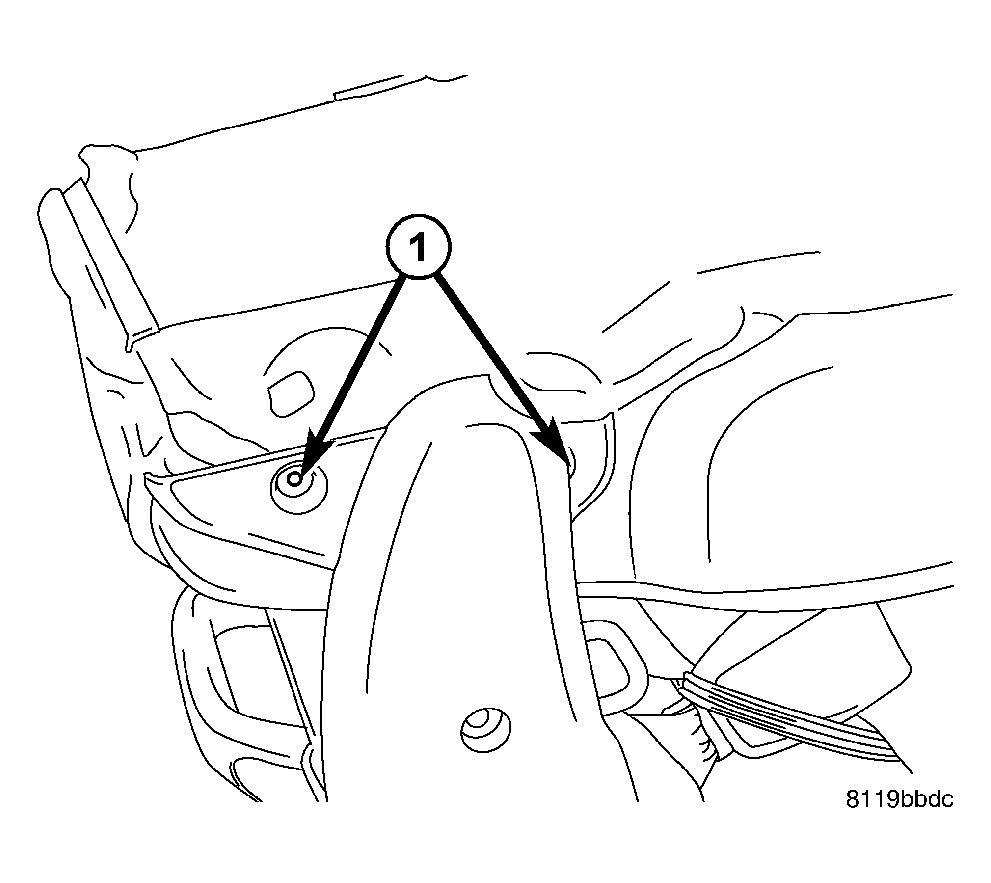

Fig 1: Seat Back Trim
GC0022558Courtesy of CHRYSLER LLC
  1. Remove seat from vehicle.
  2. Remove rear seat cushion side shields.
  3. Remove seat back.
  4. Remove track assembly.

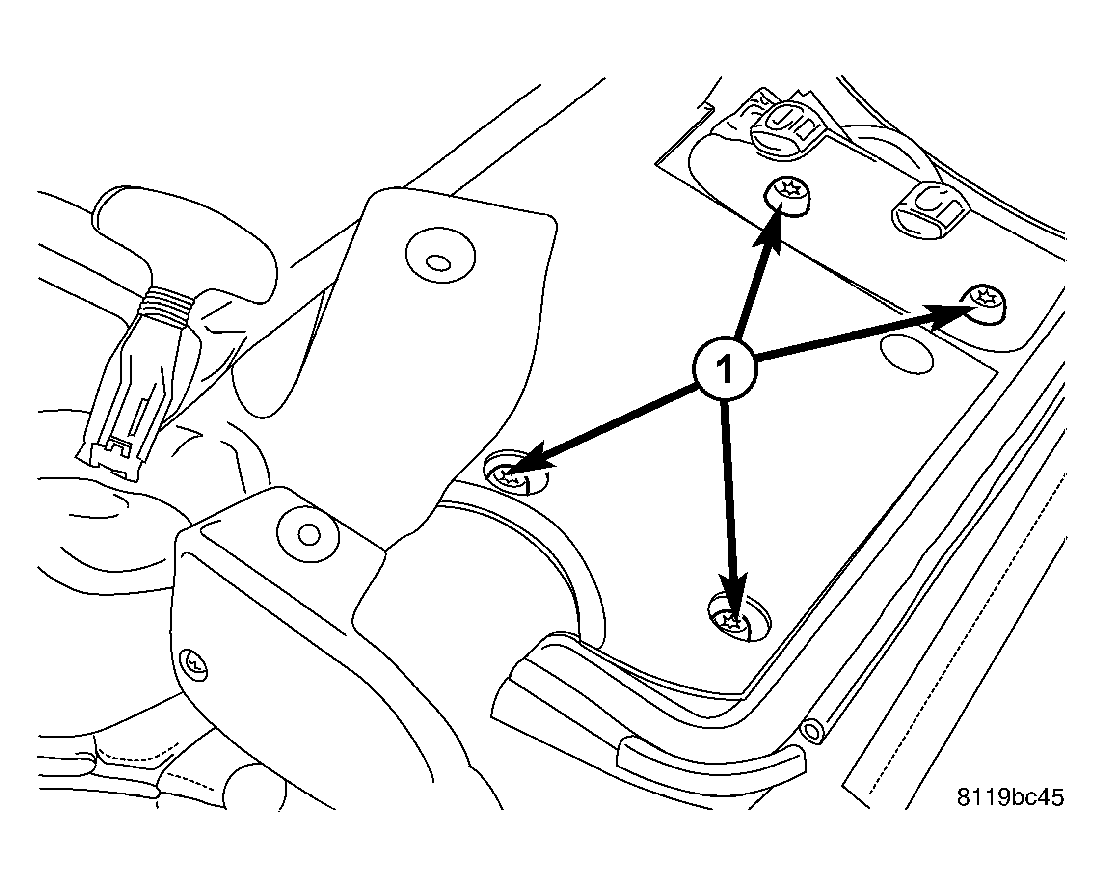

    Fig 2: Seat Cushion Frame, Back Frame, Pivot
    GC0022557Courtesy of CHRYSLER LLC
  5. Disengage J-strap attaching seat cover from the seat cushion frame.
  6. Pull cover off of the hog rings.
  7. Cut hog rings attaching seat cover to seat cushion pad.
  8. Remove seat cushion cover from seat cushion.
