Rear Seat Back Cushion Cover/Foam

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Seat Back J-Strap

Courtesy of CHRYSLER LLC

Remove seat from vehicle. See REMOVAL .
Remove rear seat back. See INSTALLATION .

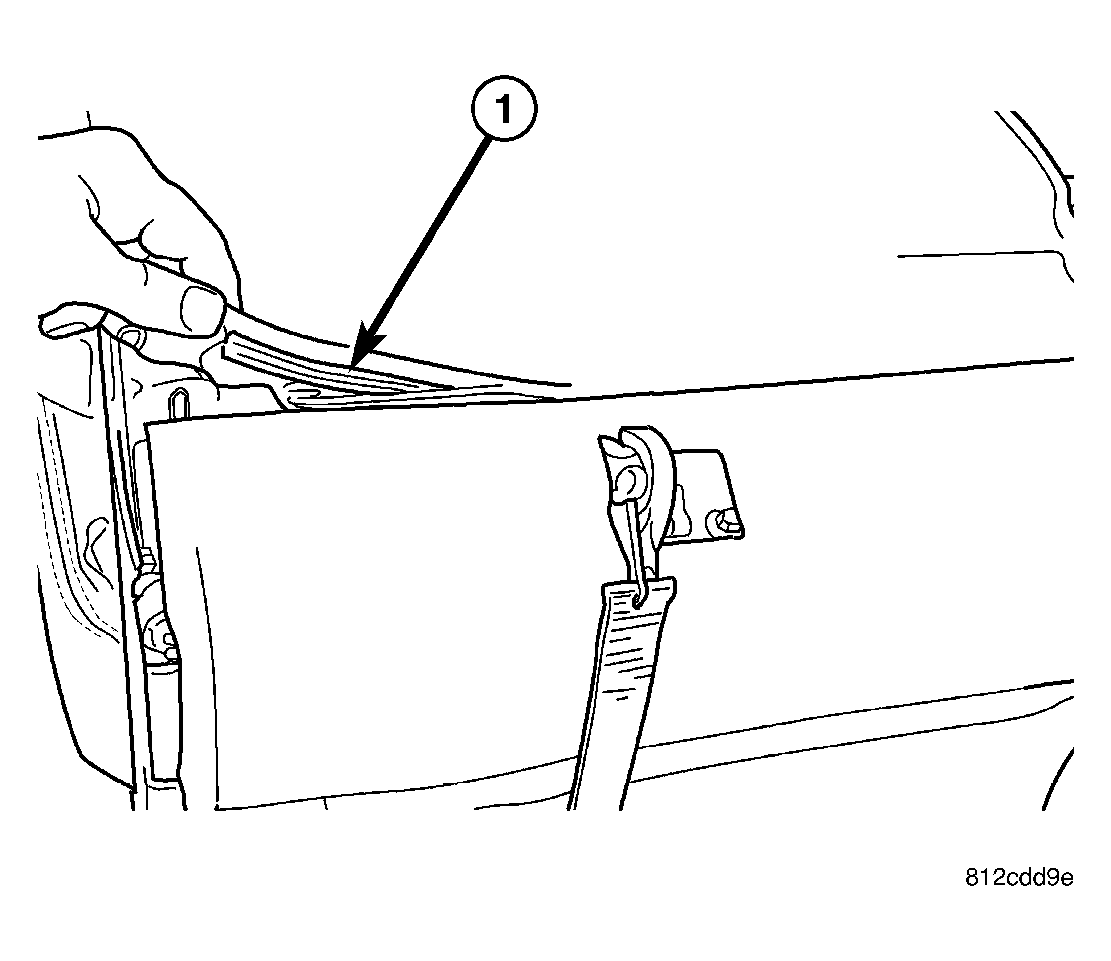

Fig 2: Rear Seat Back Cover J-Strap
Courtesy of CHRYSLER LLC

1 - J-STRAP
Disengage the J-strap retainer.

Fig 3: Rear Seat Back Cover Push Pin Fasteners
Courtesy of CHRYSLER LLC

1 - PUSH PIN FASTENERS
Roll flap back to access push pin fasteners (1).

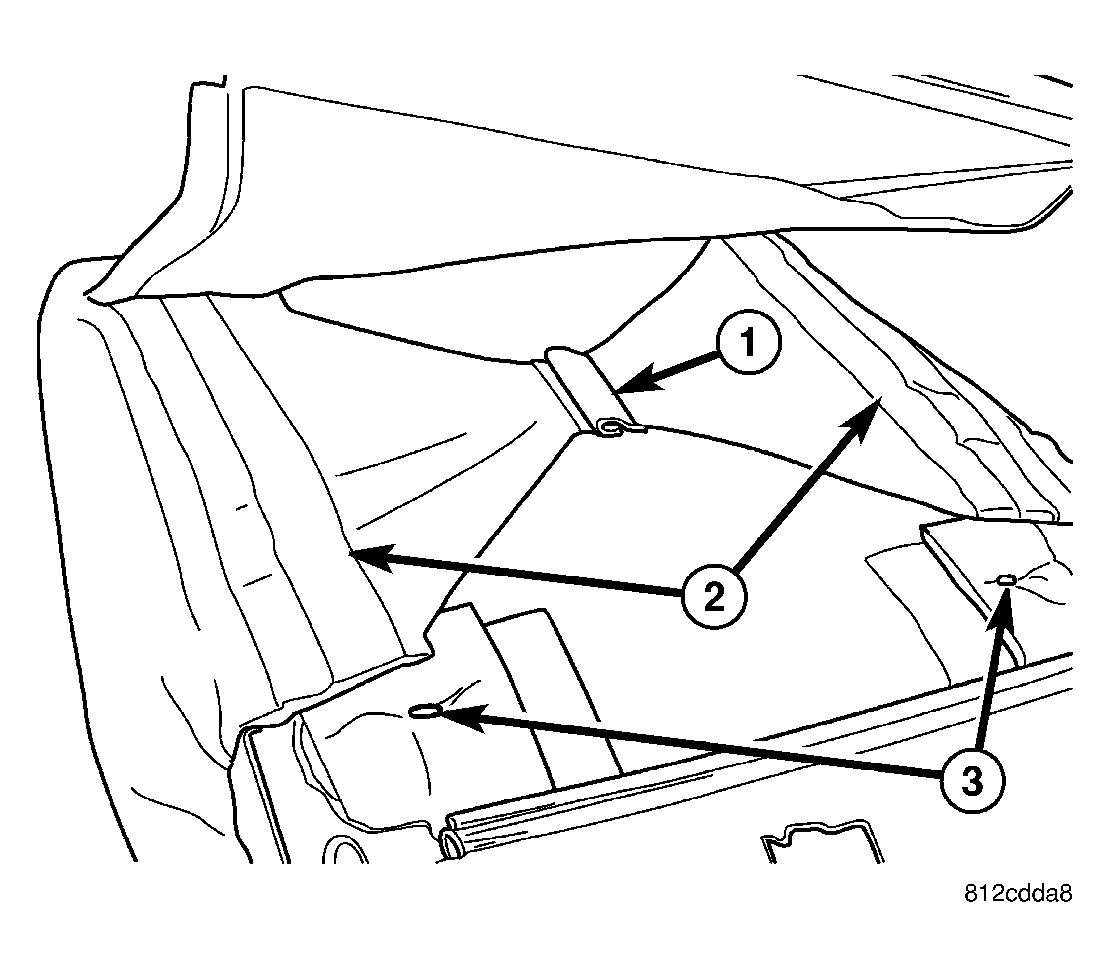

Fig 4: Rear Seat Back Cover Retainers
Courtesy of CHRYSLER LLC

1 - J-STRAP

2 - HOOK AND LOOP

3 - HOG RINGS
Raise back flap to release the hook and loop (2) to access the J-strap (1) and hog rings (3). Release J-strap (1) and cut the hog rings (3).

Fig 5: Locating J-Strap On Rod
Courtesy of CHRYSLER LLC
Disconnect the lower J-strap from the rod.

Fig 6: J-Strap On Upper Rod
Courtesy of CHRYSLER LLC
Disconnect the upper J-strap from the rod.

Fig 7: Rear Seat Back Cover
Courtesy of CHRYSLER LLC

1 - HOG RINGS
Roll cover upward to hog rings (1). Cut hog rings to free cover.

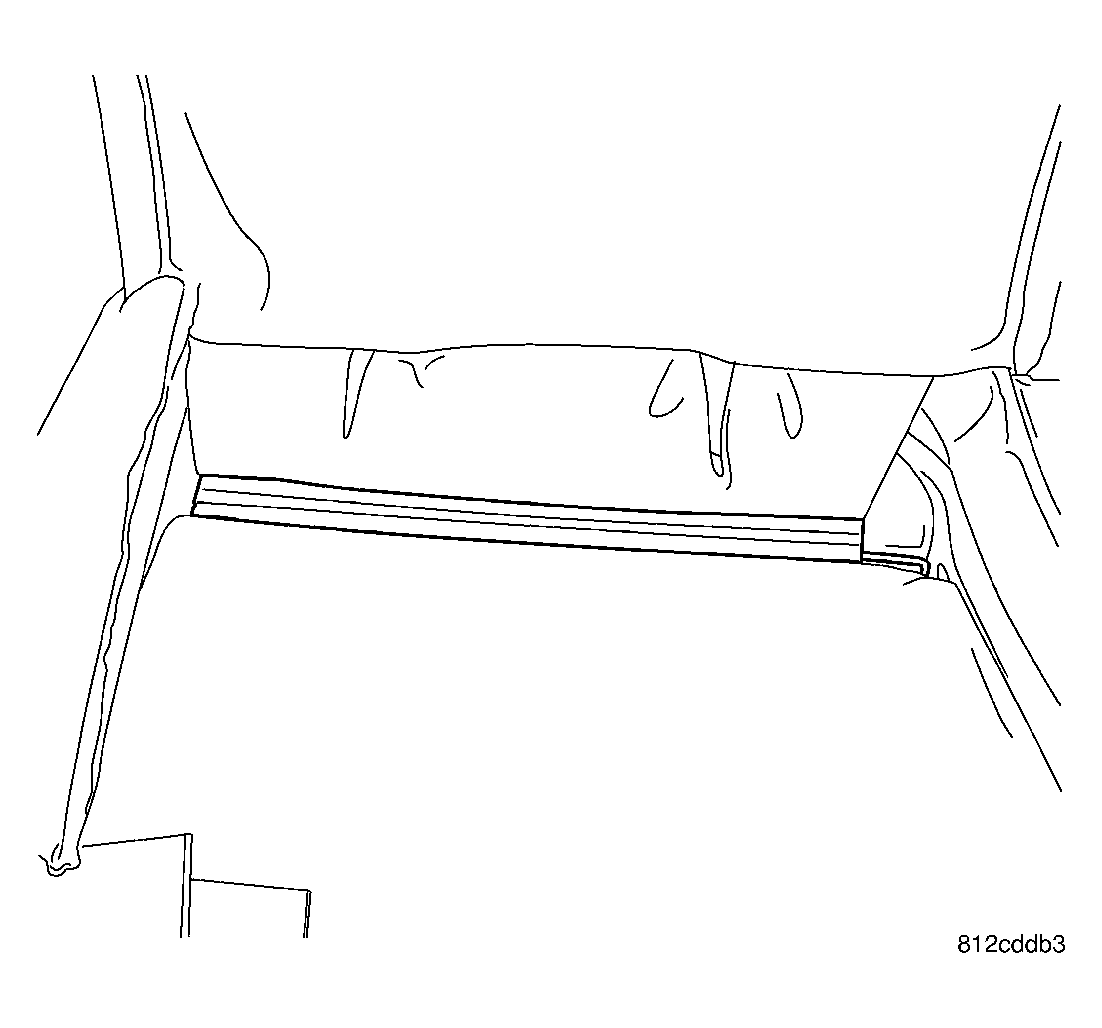

Fig 8: Rear Seat Back Cover
Courtesy of CHRYSLER LLC
Roll seat cover bottom to clear the foam.

Fig 9: Rear Seat Back Cover Hog Ring Fasteners
Courtesy of CHRYSLER LLC

1 - HOG RINGS
Roll seat back cover to the hog rings. Cut hog rings (1).

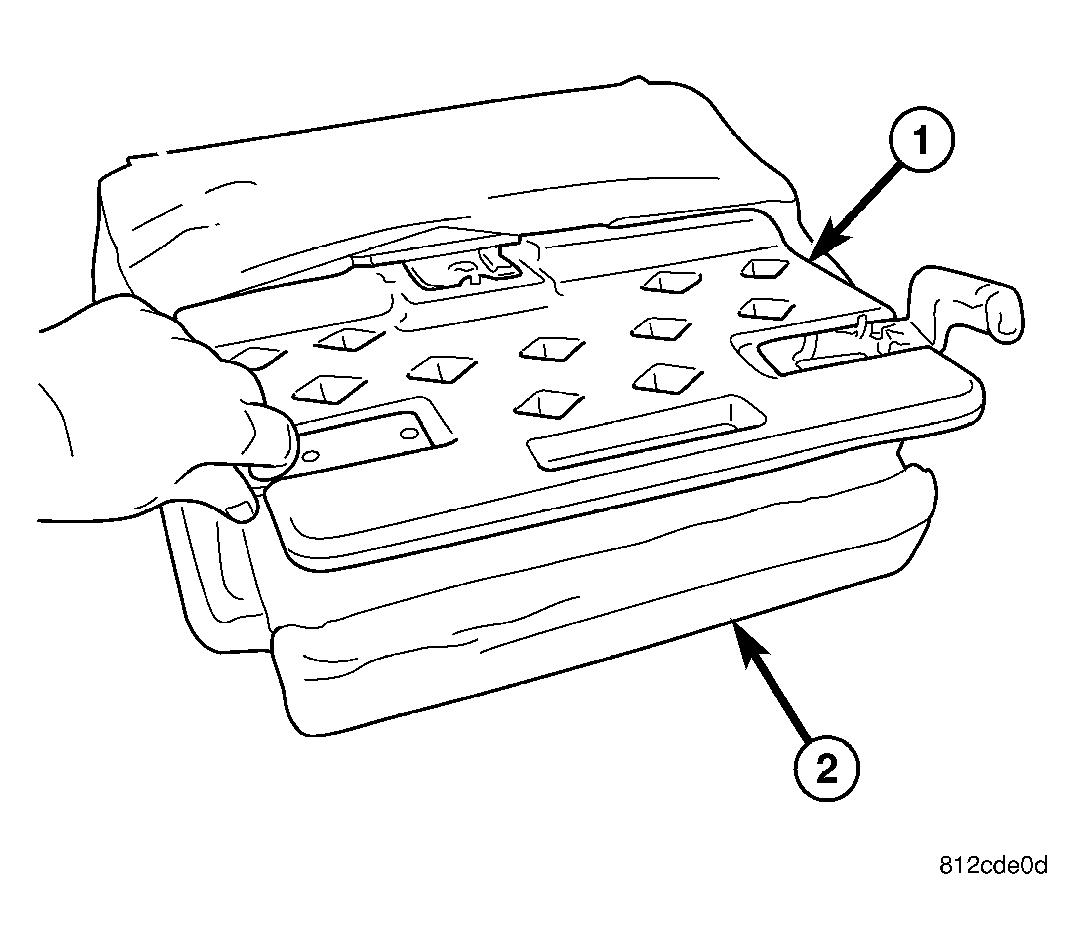

Fig 10: Removing/Installing Back Panel
Courtesy of CHRYSLER LLC

1 - BACK PANEL

2 - FOAM
Pull back panel (1) free of the seat cover and foam (2).

Fig 11: Rear Seat Back Panel
Courtesy of CHRYSLER LLC
Remove seat back cover from the foam.
