Trunk Trim Panel - Pt-27
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - SEAT BACK RELEASE |
| 2 - TRUNK SIDE TRIM PANEL(S) |
| 3 - DECKLID SILL SCUFF PLATE |
- Remove decklid sill scuff plate (3). See REMOVAL .
- Disconnect power outlet/cargo lamp, if equipped.

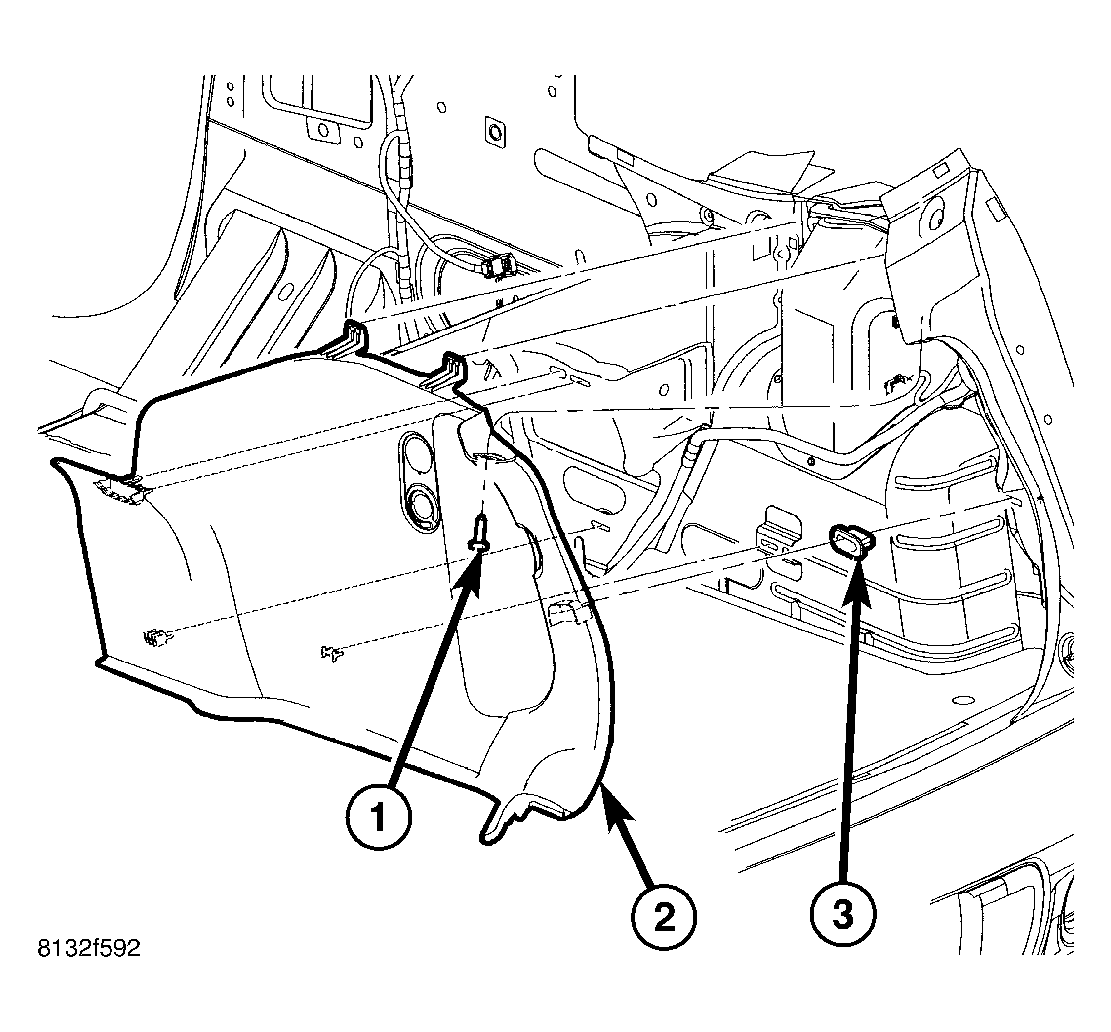

1 - PUSH PIN FASTENER 2 - TRUNK TRIM PANEL 3 - PLASTIC NUT - Remove push pin fastener (1) attaching trunk side trim panel (2).
- Pull inward on trunk side trim panel (2) to disengage clips.
- Remove trunk side trim panel (2) from vehicle. Repeat operation for other side.
