Lamp Unit-Back-Up

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

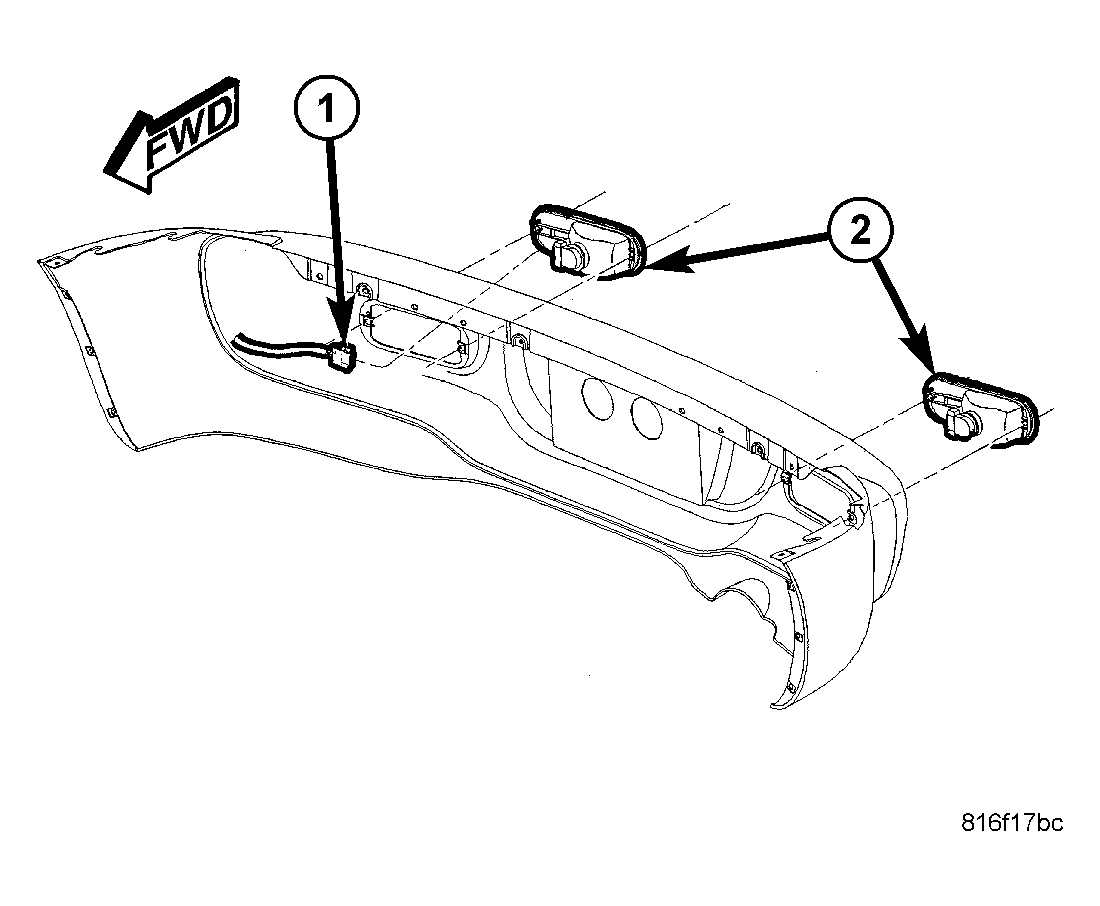

Fig 1: Removing/Installing Back-Up Lamp
GC0041395Courtesy of CHRYSLER LLC
  1. Using a fiber stick or equivalent, pry out on the outboard side of the lamp unit (2) at the fascia gap.
  2. Remove back up lamp assembly (2).
  3. Remove the bulb from the lamp housing (2) by rotating it counter-clockwise until the bulb socket is free of the housing (2).
