Circuit Schematic

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

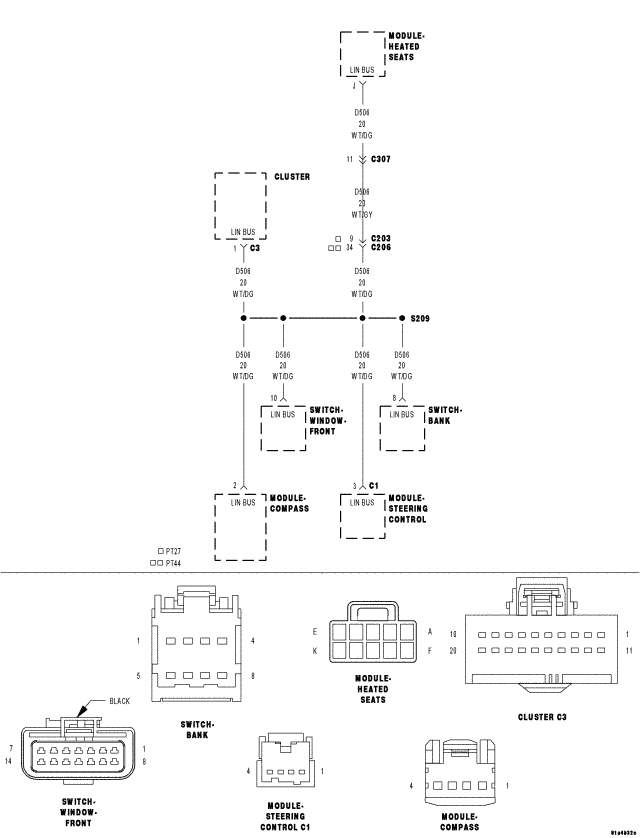

Fig 1: PT LIN 1 BUS Circuit Schematic
GC0058383Courtesy of CHRYSLER LLC
