Instrument Panel Speaker

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

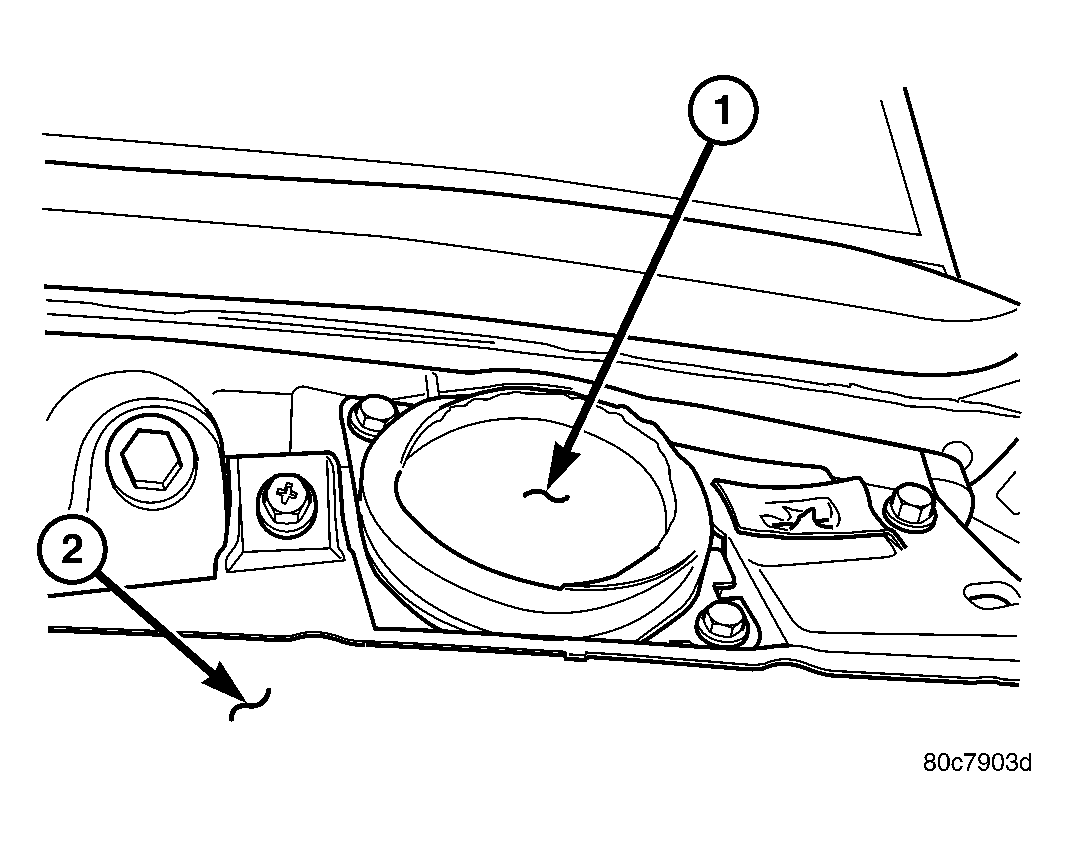

Fig 1: Instrument Panel Speaker
GC0022871Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove instrument panel (2) top cover. Refer to REMOVAL .
  3. Remove speaker retaining screws.
  4. Remove speaker (1) and disconnect wire harness connector.
