Hood Hinge Ground Strap

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

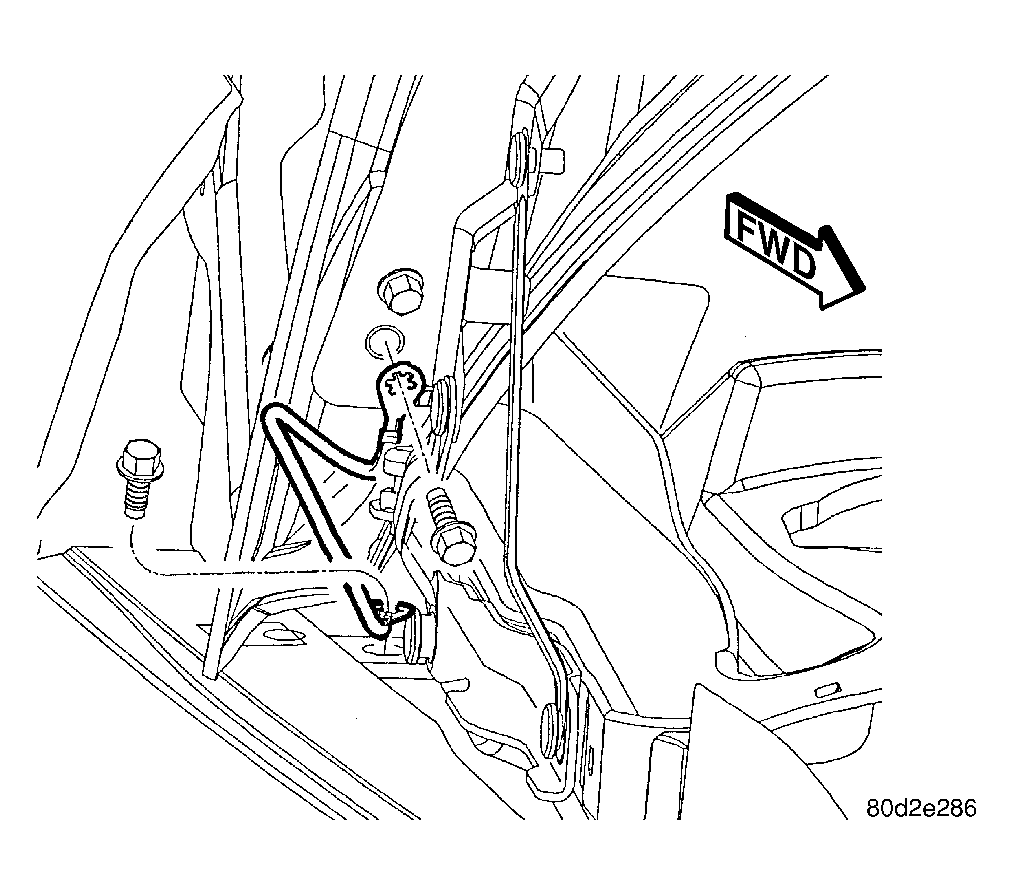

Fig 1: Hood Hinge Ground Strap
GC0022859Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove bolt from fender.
  3. Remove bolt from hood and remove strap.
