Antenna Body And Cable
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

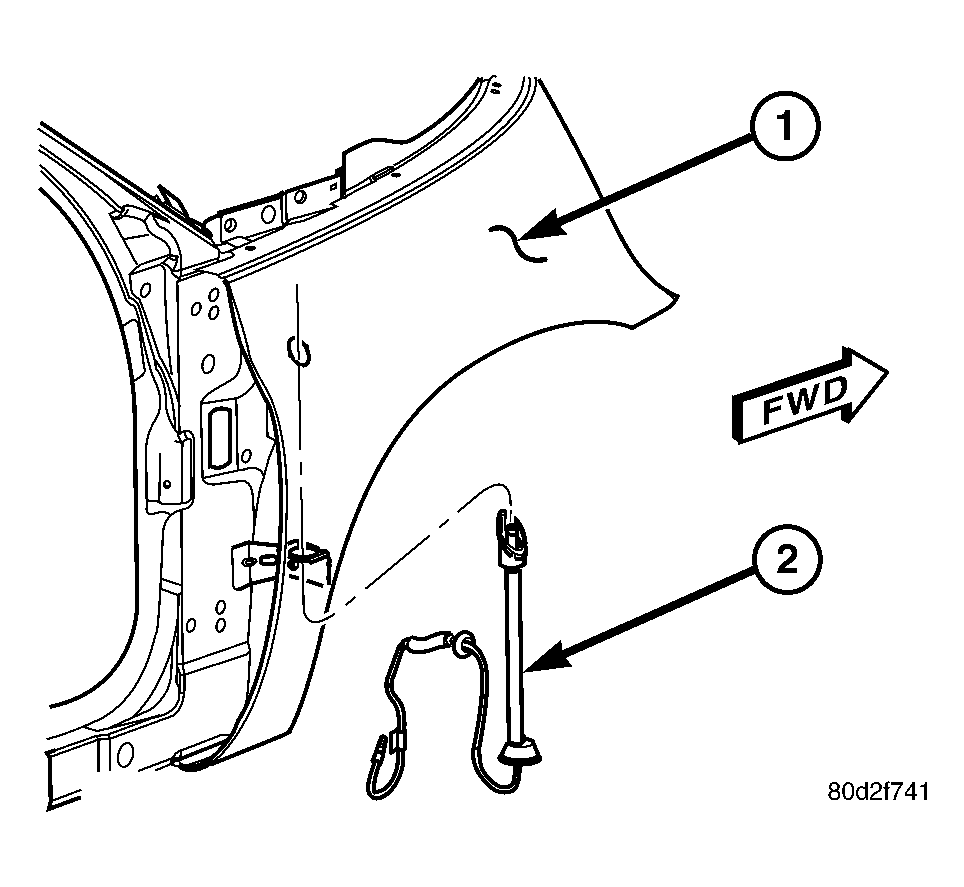

- Position antenna body and cable assembly (2) into fender (1).
- Insert antenna cable through the opening in fender.
- Seat the grommet in the side panel and connect the cable to the instrument panel harness connector.

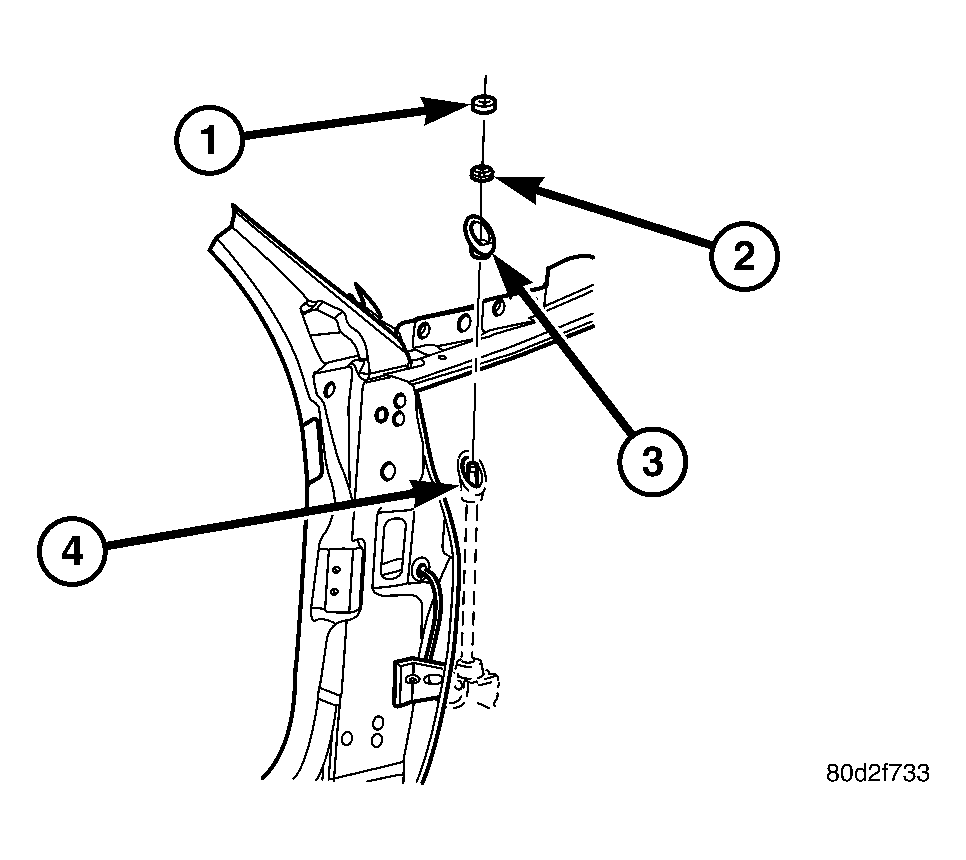

- Install antenna nut (2) and adapter (3).
- Install shroud (1), if equipped.
- Install the inner fender shield.
- Install antenna mast. Tighten to 5 N.m (46 in. lbs.). Ensure that the antenna mast is fully seated on antenna base and that there is no gap between the mast and base.
- Connect the antenna cable to the instrument panel antenna cable.
- Install the right side cowl trim panel.
- Connect the battery negative cable.
