Natural Vac Leak Detection ASSY: Removal

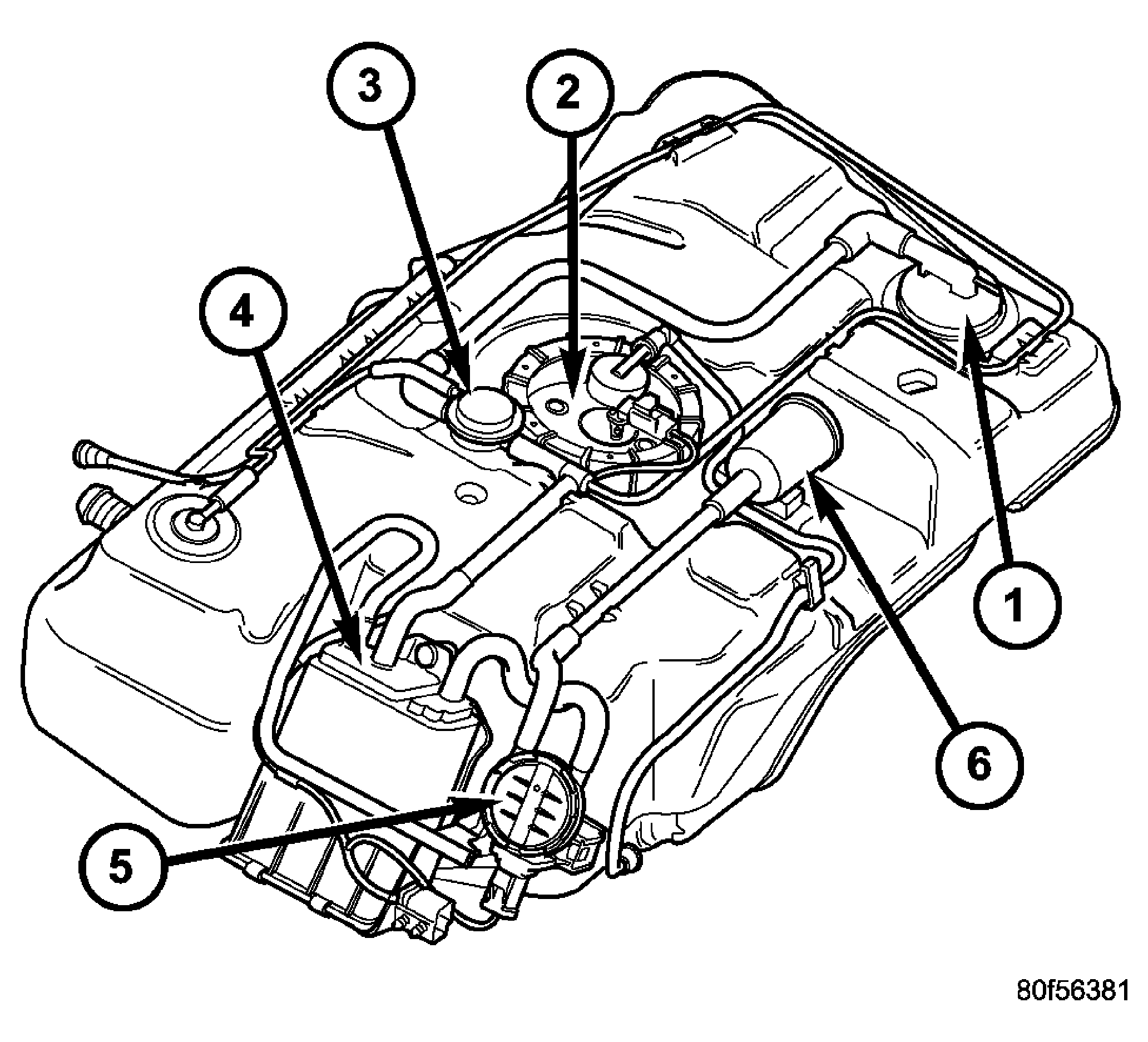

Fig 1: Identifying Fuel Tank Assembly Components

Courtesy of DAIMLERCHRYSLER CORP.

1 - CONTROL VALVE

2 - FUEL PUMP

3 - FLOW MANAGEMENT VALVE

4 - EVAP CANISTOR

5 - NATURAL VACUUM LEAK DETECTION VALVE

6 - FILTER

1. Release fuel pressure, (Refer to FUEL SYSTEM/FUEL DELIVERY - STANDARD PROCEDURE) .
2. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
3. Remove the negative battery cable.
4. Raise vehicle and support.
5. Drain fuel tank, (Refer to FUEL SYSTEM/FUEL DELIVERY - STANDARD PROCEDURE) .

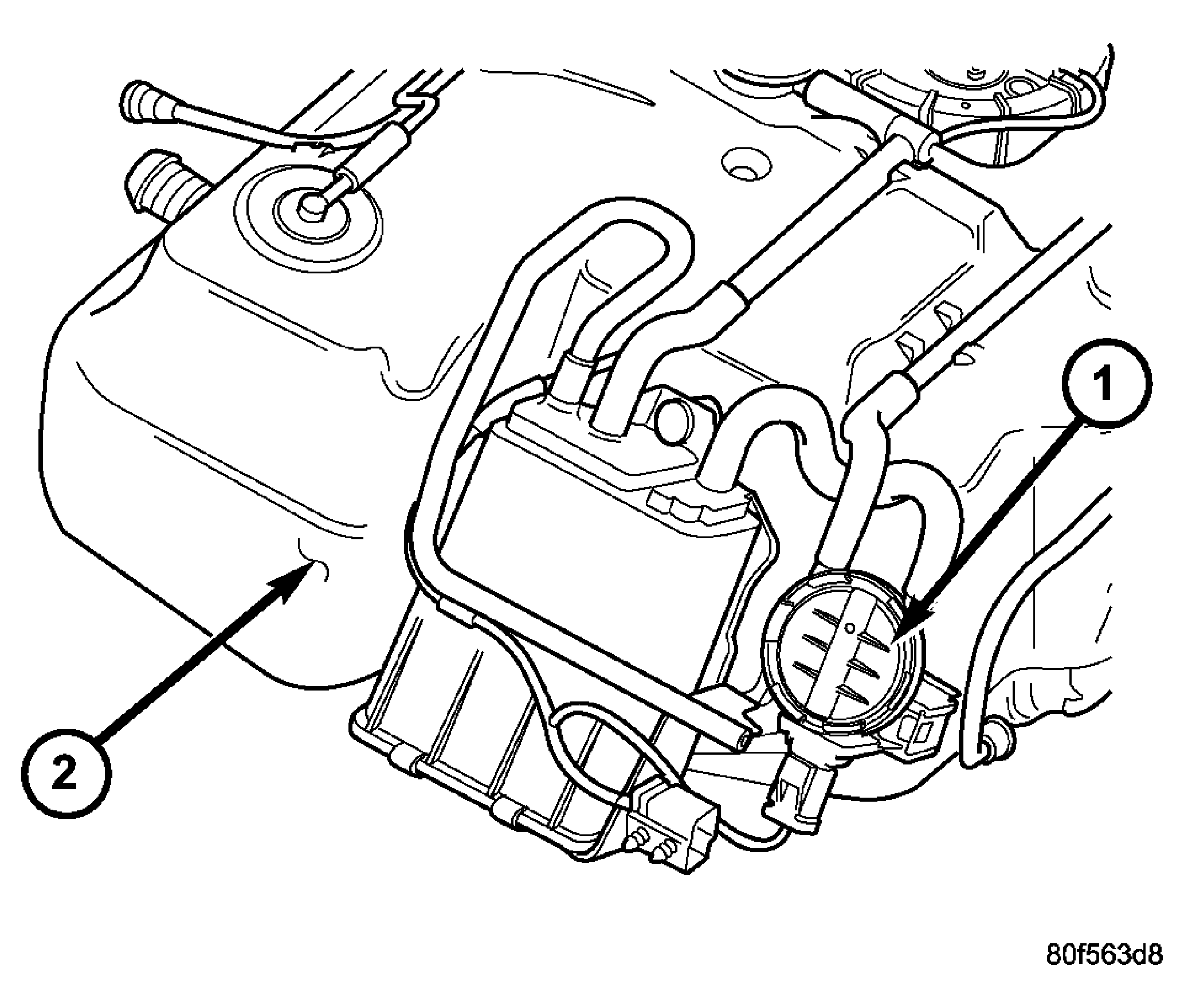

   Fig 2: Identifying Fuel Tank

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - NVLD

   2 - FUEL TANK

6. Remove fuel tank and EVAP system, (Refer to FUEL SYSTEM/FUEL DELIVERY/FUEL TANK - REMOVAL) .
7. Remove hoses from NVLD assembly.
8. Remove the bolts from the NVLD Assembly.
