2.4L Turbo

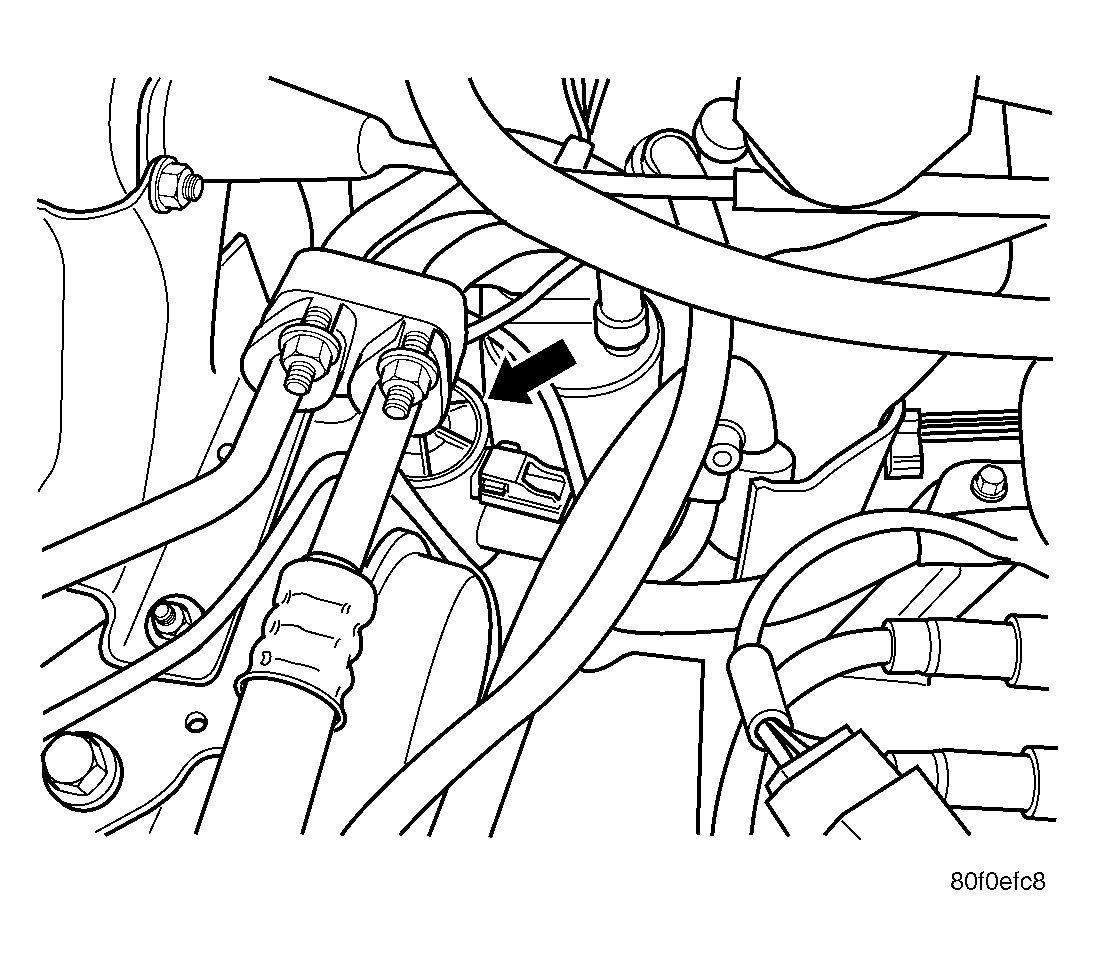

Fig 1: EVAP Purge Solenoid Location - 2.4L Turbo
GC0021742Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
  2. Remove solenoid from mounting bracket by pressing tab and pulling of the solenoid from bracket.

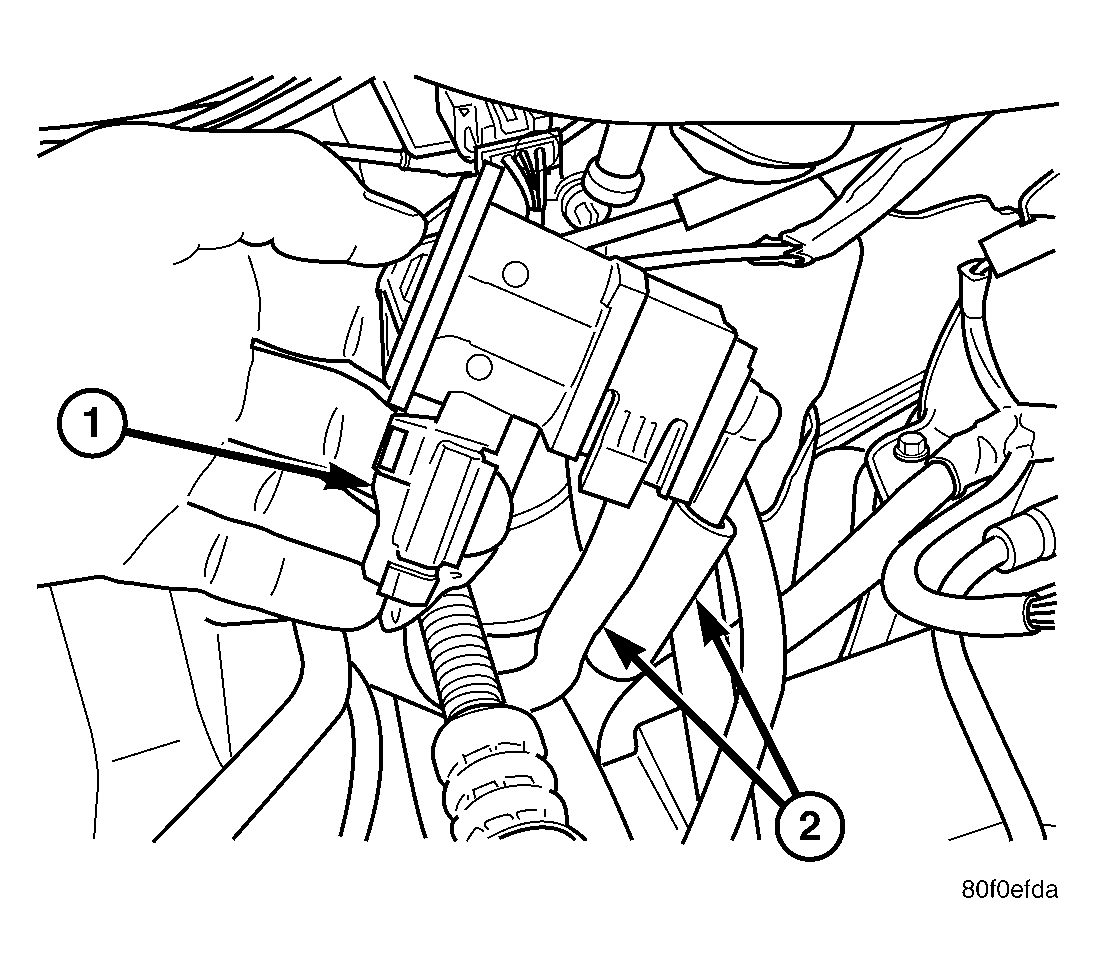

    Fig 2: EVAP Purge Solenoid - 2.4L Turbo
    GC0021743Courtesy of DAIMLERCHRYSLER CORP.
    1 - Electrical Connector
    2 - Vacuum Lines
  3. Unlock and disconnect the electrical connector from the purge solenoid (1).
  4. Remove the 2 vacuum lines (2).
  5. Remove solenoid.
