EVAP/Purge Solenoid: Description

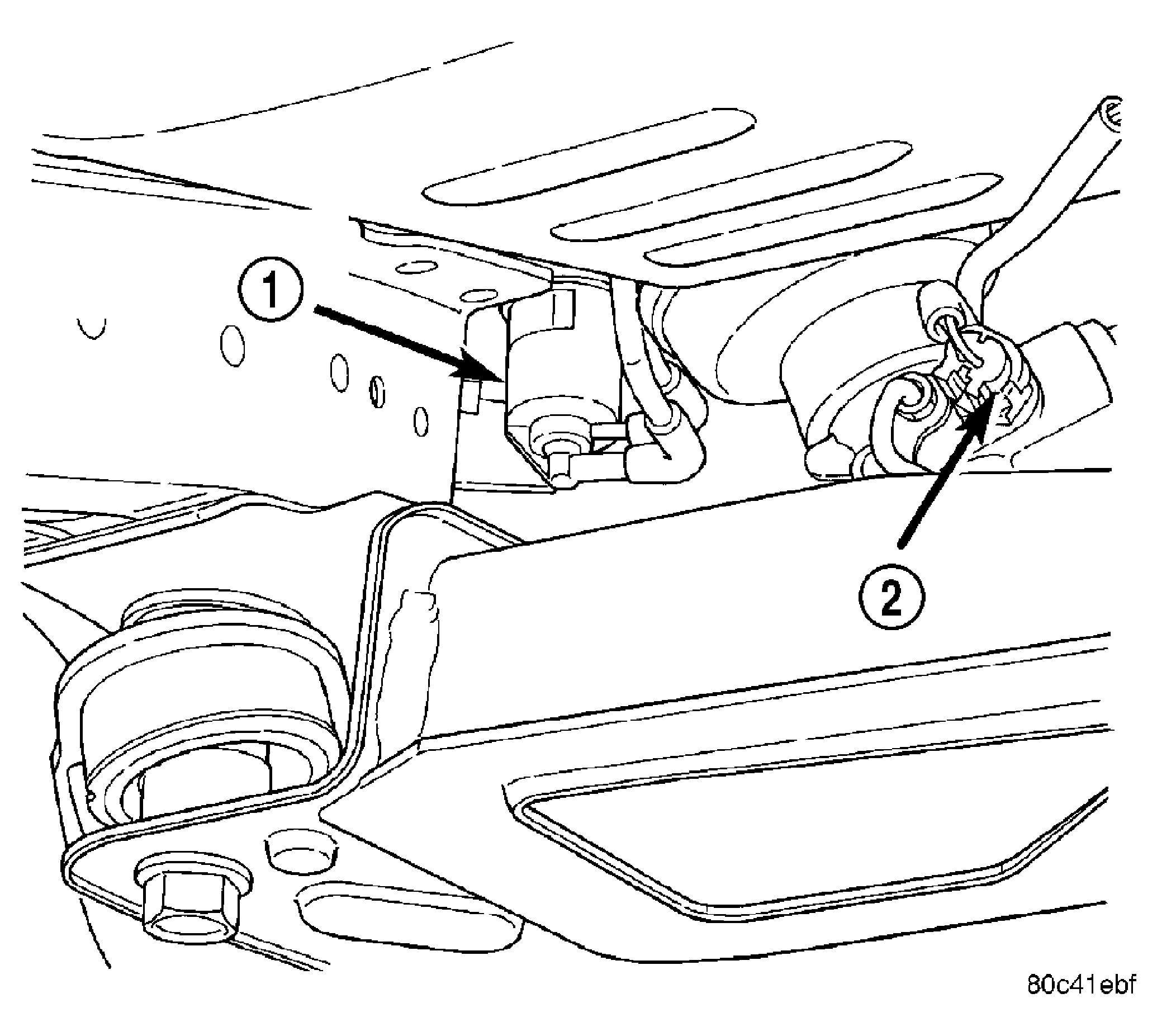

Fig 1: View Of EVAP Purge Solenoid & Power Steering Switch

Courtesy of DAIMLERCHRYSLER CORP.

1 - EVAP PURGE SOLENOID

2 - POWER STEERING SWITCH

All vehicles use a proportional purge solenoid (1). The solenoid regulates the rate of vapor flow from the EVAP canister to the throttle body. The PCM operates the solenoid.
