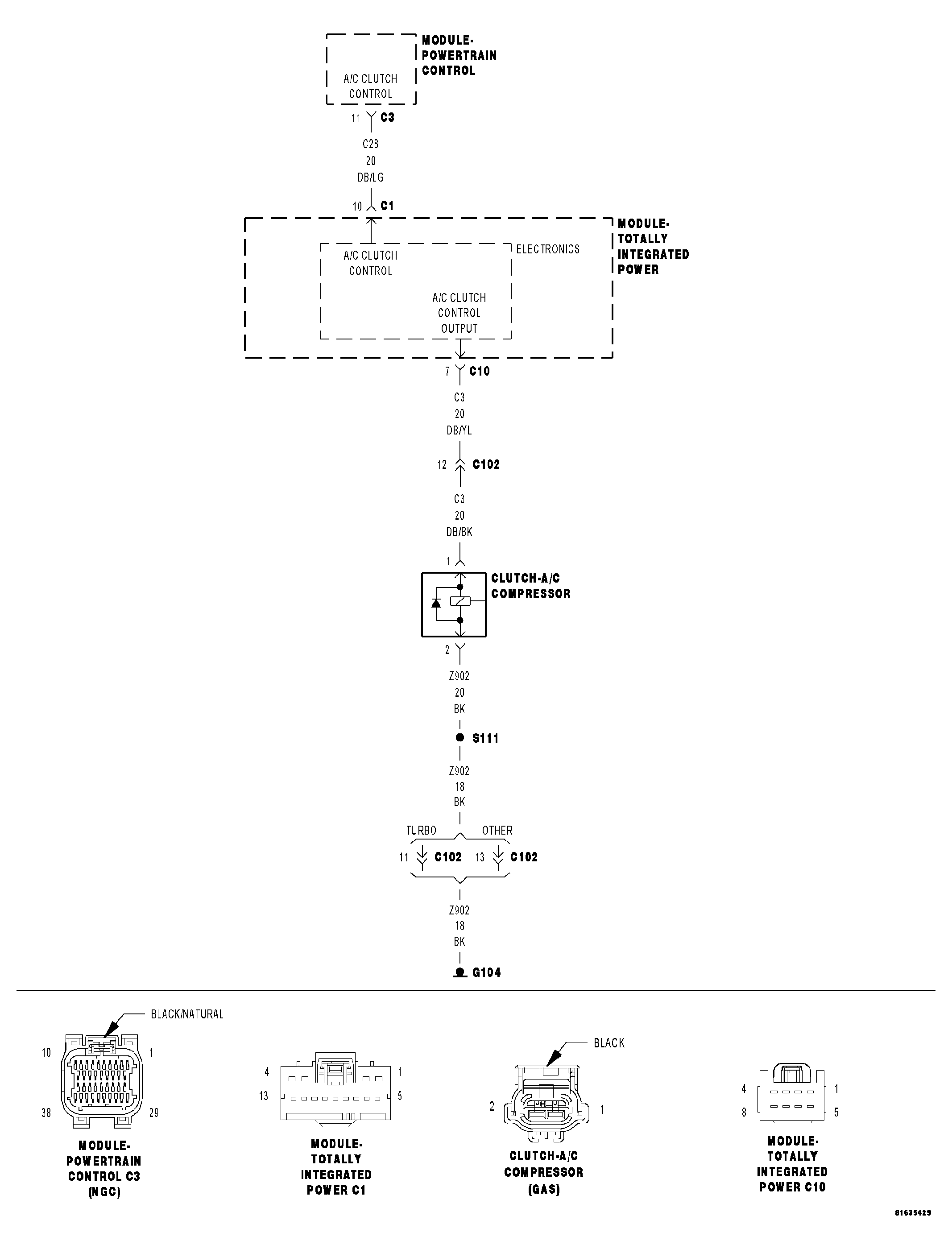

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> 2.4L Engine - DTCS PO509 To P0850 >> Diagnosis And Testing >> P0645-A/C Clutch Relay Circuit >> Circuit Schematic
